Sensors

A sensor is a physical output of a computation, optionally limited to a local area, on which you can apply a post-treatment.

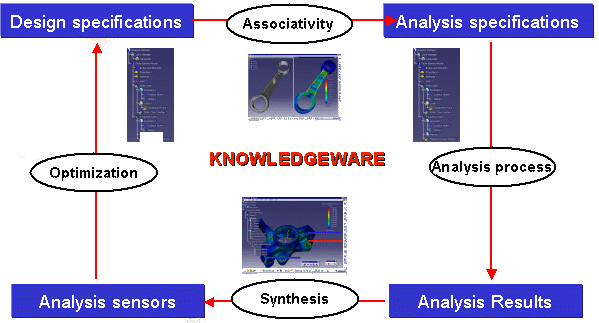

You can get a synthesis of analysis results by creating sensors.

A sensor can produce two kinds of results, depending on the sensor definition and on the analysis case:

• knowledge parameters (single value or list of values): the sensor set provides parameters that can be re-used in Knowledgeware in order to set rules, checks, formulas and Product Engineering Optimizer workbench.
• 2D Display (only in multi-occurrence case): allows you to display the variation of an output for different occurrences.


Create Global Sensors

Create sensors on entire model.

Create Local Sensors

Create sensors on local area.

Resultant Sensors

Create Reaction Sensors

Create a reaction sensor.

Create Applied Load Sensors

Create applied load sensors.

Create Multi Load Sensors

Create multi load sensors.

Create Internal Load Sensors

Create internal load sensors.

Create Inertia Sensors

Create inertia sensors.

Update Sensors

Update all the sensors belonging to a sensor set or update a particular sensor.

Display Values of Sensors

Display values of sensors in the specification tree under a sensor set.

Integration with Product Engineering Optimizer

Give information about the analysis data authorized in the Product Engineering Optimizer (PEO) product.
