What You Will Learn With This Use Case

Before reading this article, it is recommended to see the "Graphical Properties" technical article [1] to understand how the graphical properties are proceeded in the visualization mechanism. It is based on three interfaces:

• CATIVisProperties, the main interface enables to associate one or several type of geometry with the feature. Each geometry type is a CATVisGeomType. As main pre-defined type there are the point type (CATVPPoint), the lineic type (CATVPLine or CATVPEdge) or the surfacic type (CATVPMesh). Each type of geometry regroups together a set of graphical properties. A such property, the color, the line type etc, is a CATVisPropertyType
• CATIProperty, the interface to save the graphical properties. This interface is natively implemented on each feature.
• The interface, which derives from CATIVisu, uses CATIVisProperties to associate the graphical properties with the graphical representations.

When you want associate graphical properties with a feature, there are three questions to ask :

• Which are the graphical properties to modify on the feature ?
• Which are the type of geometry concerned by the graphical properties displayed in the "Graphic Properties" toolbar ?
• Are the CATIVisu correctly implemented to modify the graphical representation associated with the feature?

In this use case you will learn :

• To implement the CATIVisProperties interface: the IsGeomTypeDefined method and the GetSubTypeFromPath method answer respectivelely to the first and second question.
• To overwrite, when it is necessary, some methods of the CATExtIVisu adapter class of the CATIVisu Interface

[Top]

The CAAPstINFGraphicProperties Use Case

CAAPstINFGraphicProperties is a use case of the CAAProductStructure.edu framework that illustrates Visualization and GeometryVisualization framework capabilities.

[Top]

What Does CAAPstINFGraphicProperties Do

This use case enables to modify the graphical properties of the CAAPstINFPoint, CAAPstINFWire and CAAPstINFLine features. Refer to the "Creating a New StartUp Catalog " use case [2] to have more details about these three features. The document CAAPstINFDocument [Fig.1] created by the "Creating New Features 'From Scratch' in a Product Document" use case [3] contains some instances of theses features.

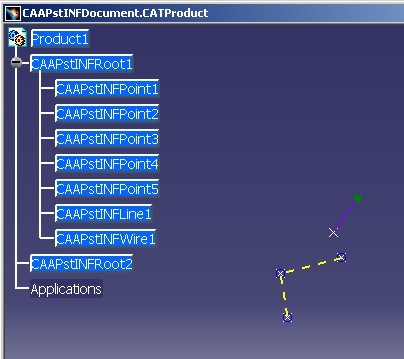

Fig.1: The CAAPstINFDocument Document

In selecting the Properties command (Contextual menu or in the Edit menu), it is possible to modify some graphical properties of these features. See an example [Fig.2] that you can obtain:

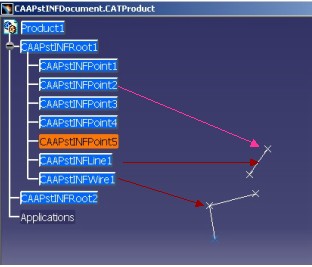

Fig.2: The CAAPstINFDocument Document after some graphical modifications

You can see just above, that

• on the CAAPstINFPoint2 feature: the color and the type of the symbol have changed
• on the CAAPstINFLine1 feature: the color, the thickness and the type of the line have changed
• on the CAAPstINFWire1feature: the color and the symbol of the markers have changed, and for the lines, the color, the thickness and the type have changed. Notice that now, we can distingue the markers created for the wire, and the markers created for the points. In the previous image [Fig.1], the visual distinction was not possible because the markers have the same representation (a white cross).

It is possible thanks to:

• The implementation of the CATIVisProperties interface on the three features:CAAPstINFPoint, CAAPstINFWire and CAAPstINFLine,
• Overwriting (or not) some methods of the CATExtIVisu class adapter of the CATI3DGeoVisu interface for the same features.

If you read the "Graphical Properties" [1] technical article, and more precisely the "Integration of the Graphical Properties in The Visualization Processus" section, you know that the visualization process calls one of these following methods to update the graphical representations (CATRep class):

• SetPointGraphicAttribute
• SetLineGraphicAttribute
• SetMeshGraphicAttribute
• SetEdgeGraphicAttribute
• SetAsmGraphicAttribute
• SetOtherGeomTypeGraphicAttribute

To be more precise, it is one or several methods which are called. It depend on the number of geometry's types defined by the feature. The current article describes the overwriting of the SetPointGraphicAttribute and the SetLineGraphicAttribute methods.

[Top]

How to Launch CAAPstINFGraphicProperties

See the section entitled "How to Launch the CAAPstIntegrateNewFeatures Use Case" in the "Integrating New Features in a Product Structure" use case for a detailed description of how this use case should be launched.

Specifically, the code described in this article is executed upon loading the Product document (you can use the CAAPstINFDocument.CATProduct document that can be found in the CNext/resources/graphic directory of the CAAProductStructure.edu framework [Fig.1] ) into the CATIA session.

Interactive scenario once the CAAPstINFDocument.CATProduct is loaded:

• Click button left on the CAAPstINFPoint2
• Button right, click the Properties command
• The Properties dialog box appears
  • Click the Graphic tab
    • In the Points frame
      • select a color in the Color combo
      • select a new symbol in the Symbol combo
  • Click OK
• Click button left on the CAAPstINFLine1
• Button right, click the Properties command
• The Properties dialog box appears
  • Click the Graphic tab
    • In the Lines and Curves frame
      • select a color in the Color combo
      • select a line type in the LineType combo
      • select a thickness (line width) in the Thickness combo
  • Click OK
• Click button left on the CAAPstINFWire1
• Button right, click the Properties command
• The Properties dialog box appears
  • Click the Graphic tab
    • In the Points frame
      • select a color in the Color combo
      • select a new symbol in the Symbol combo
    • In the Lines and Curves frame
      • select a color in the Color combo
      • select a line type in the LineType combo
      • select a thickness (line width) in the Thickness combo
  • Click OK

[Top]

Where to Find the CAAPstINFGraphicProperties Code

The CAAPstINFGraphicProperties use case is made of source files located in the CAAPstINFModeler.m module of the CAAProductStructure.edu framework.

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Step-by-Step

The main steps of CAAPstINFGraphicProperties are:

1. Creating the CATIVisProperties Data Extension
2. Processing the Line Feature
3. Processing the Point Feature
4. Processing the Wire Feature

[Top]

Creating the CATIVisProperties Data Extension

For the three features the CATIVisProperties interface is implemented in creating a data extension. To be shorter, only the case of the CAAPstINFPoint feature is described. For the line and the wire, change CAAPstINFPoint by CAAPstINFLine and CAAPstINFWire respectively.

1. Header source

#ifndef CAAEPstVisPropertiesPoint_H #define CAAEPstVisPropertiesPoint_H #include "CATExtIVisProperties.h" // Need to derive from class CAAEPstVisPropertiesPoint : public CATExtIVisProperties { CATDeclareClass; public: CAAEPstVisPropertiesPoint(); virtual ~CAAEPstVisPropertiesPoint(); HRESULT IsGeomTypeDefined(CATVisGeomType & iGeomType) ; HRESULT GetSubTypeFromPath(CATPathElement & iPathElement, CATVisPropertyType iPropertyType, CATVisGeomType & oGeomType, unsigned int & oPropertyNumber) ; private: CAAEPstVisPropertiesPoint(const CAAEPstVisPropertiesPoint &iObjectToCopy); CAAEPstVisPropertiesPoint & operator = (const CAAEPstVisPropertiesPoint &iObjectToCopy); }; #endif

The CAAEPstVisPropertiesPoint C++ class derives from CATExtIVisProperties, the adapter class of the CATIVisProperties interface. The CATDeclareClass macro declares that the CAAEPstVisPropertiesPoint class belongs to a component. The copy constructor and the "=" operator are set as private to prevent the compiler from automatically creating them as public.

The public methods, other than the constructor and the destructor, are methods defined in the CATIVisProperties interface

2. Code source

//Local Framework #include "CAAEPstVisPropertiesPoint.h" #include "TIE_CATIVisProperties.h" TIE_CATIVisProperties(CAAEPstVisPropertiesPoint); CATImplementClass(CAAEPstVisPropertiesPoint, DataExtension, CATBaseUnknown, CAAPstINFPoint); CAAEPstVisPropertiesPoint::CAAEPstVisPropertiesPoint() { } CAAEPstVisPropertiesPoint::~CAAEPstVisPropertiesPoint() { } ...

The CAAEPstVisPropertiesPoint class states that it implements the CATIVisProperties interface thanks to the TIE_CATIVisProperties macro. This extension class is dedicated to the CAAPstINFPoint feature. The CATImplementClass macro declares that the CAAEPstVisPropertiesPoint class is a data extension class, thanks to the DataExtension keyword, and that it extends the component whose main class is CAAPstINFPoint. The third parameter must always be set to CATBaseUnknown (unused parameter)

The constructor and destructor are empty.

... HRESULT CAAEPstVisPropertiesPoint::IsGeomTypeDefined(CATVisGeomType & iGeomType) { see the implementation for the point see the implementation for the line see the implementation for the wire } ...

The goal of this method is to return S_OK when the input argument, iGeomType, is available for the feature, otherwise it returns E_FAIL. This method is explained for each feature later in the article.

... HRESULT CAAEPstVisPropertiesPoint::GetSubTypeFromPath(CATPathElement & iPathElement, CATVisPropertyType iPropertyType, CATVisGeomType & oGeomType, unsigned int & oPropertyNumber) { see the implementation for the point see the implementation for the line see the implementation for the wire }

This method is automatically called to update the "Graphic Properties" toolbar. This toolbar contains combos to modify the color, the type of a line, etc... of the selected feature(s). The goal of this method is to return the type of geometrie, oGeomType, for the input graphical properties iPropertyType, concerned by the toolbar modifications. The returned type of geometry must be of course defined by the feature.

Remarks:

• oPropertyNumber is not used by the visualization mechanism, so valuate it by zero.
• do not process the type of property CATVPGlobalType. It is done by the visualization mechanism.

This method is explained for each feature later in the article.

3. Modifying the interface dictionary

In the interface dictionary dedicated to the CAAProductStructure.edu framework, it is necessary to add the following lines to indicate that the CAAPstINFPoint, CAAPstINFLine, and CAAPstINFWire features implement the CATIVisProperties interface in the libCAAPstINFModeler module.

... CAAPstINFPoint CATIVisProperties libCAAPstINFModeler CAAPstINFine CATIVisProperties libCAAPstINFModeler CAAPstINFWire CATIVisProperties libCAAPstINFModeler ...

[Top]

Processing the Line Feature

The CAAPstINFLine feature is graphically represented by a line between the two CAAPstINFPoint which constitue it. Refer to the "Enabling the Visualization of New Features in a Product Document" [4] article to see how the BuildRep method of the CATI3DGeoVisu interface is implemented.

1. The IsGeomTypeDefined method of the CATIVisProperties interface

HRESULT CAAEPstVisPropertiesLine::IsGeomTypeDefined(CATVisGeomType & iGeomType) { HRESULT rc = E_FAIL ; if ( (CATVPLine == iGeomType) || (CATVPGlobalType == iGeomType) ) rc = S_OK ; return rc ; }

The CAAPstINFLine feature defines the CATVPLine geometry type to modify the color, the thickness and the type of the line. The CATVPGlobalType type enables to modify the show/no show flag, the pick/no pick flag, the lowint flag and the number of the layer.

2. The GetSubTypeFromPath method of the CATIVisProperties interface

HRESULT CAAEPstVisPropertiesLine::GetSubTypeFromPath(CATPathElement & iPathElement, CATVisPropertyType iPropertyType, CATVisGeomType & oGeomType, unsigned int & oPropertyNumber) { HRESULT rc = E_FAIL ; switch ( iPropertyType ) { case CATVPColor: case CATVPLineType: case CATVPWidth: oGeomType = CATVPLine ;c rc = S_OK ; break; } oPropertyNumber = 0 ; return rc ; }

For the CAAPstINFLine feature there is no ambiguity, for the CATVPColor, CATVPLineType and the CATVPWidth properties, the type of geometry is CATVPLine.

3. CATExtIVisu methods

   The type of geometry is CATVPLine , so it is the SetLineGraphicAttribute method of the CATExtIVisu adapter class which is concerned. The graphic representation of the CAAPstINFLine feature is a CAT3DCustomRep which contains one graphic primitive a CAT3DLineGP. So the default implementation, those of the CATExtIVisu adapter class, will correctly process the properties modifications. It is not necessary to overwrite this method.

[Top]

Processing the Point Feature

The CAAPstINFPoint feature is graphically represented by a marker. Refer to the "Enabling the Visualization of New Features in a Product Document" [4] article to see how the BuildRep method of the CATI3DGeoVisu interface is implemented.

1. The IsGeomTypeDefined method of the CATIVisProperties interface

HRESULT CAAEPstVisPropertiesPoint::IsGeomTypeDefined(CATVisGeomType & iGeomType) { HRESULT rc = E_FAIL ; if ( (CATVPPoint == iGeomType) || (CATVPGlobalType == iGeomType) ) rc = S_OK ; return rc ; }

The CAAPstINFPoint feature defines the CATVPPoint geometry type to modify the color and the symbol of the marker. The CATVPGlobalType type enables to modify the show/no show flag, the pick/no pick flag, the lowint flag and the number of the layer.

2. The GetSubTypeFromPath method of the CATIVisProperties interface

HRESULT CAAEPstVisPropertiesPoint::GetSubTypeFromPath(CATPathElement & iPathElement, CATVisPropertyType iPropertyType, CATVisGeomType & oGeomType, unsigned int & oPropertyNumber) { HRESULT rc = E_FAIL ; switch ( iPropertyType ) { case CATVPColor: case CATVPSymbol: oGeomType = CATVPPoint ; rc = S_OK ; break; } oPropertyNumber = 0 ; return rc ; }

For the CAAPstINFPoint feature there is no ambiguity, for the CATVPColor and the CATVPSymbol properties, the type of geometry is CATVPPoint.

3. CATExtIVisu method

   The type of geometry is CATVPPoint , so it is the SetPointGraphicAttribute method of the CATExtIVisu adapter class which is concerned. The graphic representation of the CAAPstINFLine feature is a CAT3DCustomRep which contains one graphic primitive a CAT3DMarkerGP. So the default implementation, those of the CATExtIVisu adapter class, will not correctly process the properties modifications. It is necessary to overwrite this method.

   The goal of this method is to modify the color (CATVPColor) and the symbol (CATVPSymbol) of the marker. In case of the CATVPAllPropertyType the color and the symbol must be changed.

   1. The symbol of the marker

   void CAAEPstINFVisuPoint::SetPointGraphicAttribute(CATRep *iRep, CATVisPropertyType iPropertyType, CATVisPropertiesValues & iPropertyValue) { if ( NULL == iRep ) return; CAT3DCustomRep * pRepPoint = (CAT3DCustomRep *) iRep ; // The symbol property if ( (iPropertyType == CATVPAllPropertyType ) || ( iPropertyType == CATVPSymbol)) { // retrieve the new symbol unsigned int NewSymbol; if (SUCCEEDED(iPropertyValue.GetSymbol(NewSymbol))) { // Retrieve the current GP CATGraphicPrimitive * pOldGP = pRepPoint->GetGP(0) ; if ( NULL != pOldGP ) { CAT3DMarkerGP * pOldPointGP = (CAT3DMarkerGP *) pOldGP ; // retrieve the coordinate's point and the current symbol float * points; int nbPoints; SymbolType OldSymbol; pOldPointGP->Get(&points, &nbPoints, &OldSymbol); if ( NewSymbol != OldSymbol ) { // Creation of a new marker with the new symbol CAT3DMarkerGP * pNewPointGP = new CAT3DMarkerGP(points,1,(SymbolType) NewSymbol); //Replace the marker with the same graphic attribute pRepPoint->Modify(pOldPointGP,pNewPointGP,NULL); //The old GP must be deleted CATGraphicPrimitive::Destroy(pOldPointGP); pOldPointGP = NULL ; } } } } ... }

   The symbol of the CAT3DMarkerGP is not set into a CATGraphicAttributeSet instance. The value is given at the graphic primitive (GP) construction. So to change it, a new GP must be created.

   If the new symbol is different from the current, a new CAT3DMarkerGP will be created. The new GP replaces the old thanks to the Modify method of the CAT3DCustomRep class. The old GP must be destroyed, thanks to Destroy method.

4. The color

... // The color property if ( (iPropertyType == CATVPAllPropertyType ) || ( iPropertyType == CATVPColor)) { CATGraphicAttributeSet * pAg = &(pRepPoint->GetAttribut(0)); SetGraphicAttributeSet (pAg, CATVPColor, iPropertyValue); } }

The color is modified on the CATGraphicAttributeSet instance associated with the first (0) GP of the CAT3DCustomRep. You retrieve it thanks to the GetAttribut method. The SetGraphicAttributeSet method enables to modify on the pAg graphic attribute, the CATVPColor properties read on the iPropertyValue argument.

[Top]

Processing the Wire Feature

The CAAPstINFWire feature is graphically represented markers and lines between each markers. Refer to the "Enabling the Visualization of New Features in a Product Document" [4] article to see how the BuildRep method of the CATI3DGeoVisu interface is implemented.

1. The IsGeomTypeDefined method of the CATIVisProperties interface

HRESULT CAAEPstVisPropertiesWire::IsGeomTypeDefined(CATVisGeomType & iGeomType) { HRESULT rc = E_FAIL ; if ( (CATVPLine == iGeomType) || (CATVPPoint == iGeomType) || (CATVPGlobalType == iGeomType) ) rc = S_OK ; return rc ; }

The CAAPstINFWire feature defines the CATVPLine geometry type to modify the color, the thickness and the type of the lines and defines the CATVPPoint geometry type to modify the color and the symbol of the markers. The CATVPGlobalType type enables to modify the show/no show flag, the pick/no pick flag, the lowint flag and the number of the layer.

2. The GetSubTypeFromPath method of the CATIVisProperties interface

HRESULT CAAEPstVisPropertiesWire::GetSubTypeFromPath(CATPathElement & iPathElement, CATVisPropertyType iPropertyType, CATVisGeomType & oGeomType, unsigned int & oPropertyNumber) { HRESULT rc = E_FAIL ; switch ( iPropertyType ) { case CATVPColor: case CATVPLineType: case CATVPWidth: oGeomType = CATVPLine ; rc = S_OK ; break; case CATVPSymbol: oGeomType = CATVPPoint ; rc = S_OK ; break; } oPropertyNumber = 0 ; return rc ; }

For the CATVPLineType, CATVPWidth ou CATVPSymbol property type there are no ambiguite, it is either CATVPLine for the lineic geometry or CATVPPoint for the marker. But for the color, the choice is between the line and the marker geometry. Here the choice is CATVPLine.

3. CATExtIVisu methods

The type of geometries are CATVPPoint and CATVPLine, so the concerned methods of the CATExtIVisu class adapter are SetPointGraphicAttribute and SetLineGraphicAttribute. The graphic representation of the CAAPstINFWire feature is a CAT3DCustomRep which contains two graphic primitives: a CAT3DMarkerGP with N points and a CAT3DLineGP with the same points. The default SetPointGraphicAttribute method don't process the CAT3DCustomRep, and the default SetLineGraphicAttribute modifies all the graphic Primitive of the CAT3DCustomRep without testing the type of the graphic primitive. It is necessary to overwrite these two methods.

• SetPointGraphicAttribute

The goal of this method is to modify the color (CATVPColor) and the symbol (CATVPSymbol) of all the markers. In case of the CATVPAllPropertyType the color and the symbol must be changed.

void CAAEPstINFVisuWire::SetPointGraphicAttribute(CATRep *iRep, CATVisPropertyType iPropertyType, CATVisPropertiesValues & iPropertyValue) { if ( NULL == iRep ) return; CAT3DCustomRep * pRepWire = (CAT3DCustomRep *) iRep ; // Retrieve the CAT3DMarkerGP int NbGP = pRepWire->GetGPSize(); if ( NbGP != 2 ) return ; CATGraphicPrimitive * pGP = pRepWire->GetGP(0) ; if ( 0 == pGP->IsAKindOf("CAT3DMarkerGP") ) return; // Change the symbol if ( (iPropertyType == CATVPAllPropertyType ) || ( iPropertyType == CATVPSymbol)) { // Retrieve the new symbol unsigned int NewSymbol; if (SUCCEEDED(iPropertyValue.GetSymbol(NewSymbol))) { // Retrieve the current GP CAT3DMarkerGP * pOldPointGP = (CAT3DMarkerGP *) pGP ; if ( NULL != pOldPointGP ) { // retrieve the coordinate's points and the current symbol float * points; int nbPoints; SymbolType OldSymbol; pOldPointGP->Get(&points, &nbPoints, &OldSymbol); if ( NewSymbol != OldSymbol ) { // Creation of a new marker with the new symbol CAT3DMarkerGP * pNewPointGP = new CAT3DMarkerGP(points,nbPoints,(SymbolType) NewSymbol); //Replace the marker with the same graphic attribute pRepWire->Modify(pOldPointGP,pNewPointGP,NULL); //The old GP must be deleted CATGraphicPrimitive::Destroy(pOldPointGP); pOldPointGP = NULL ; } } } } // Change the color if ( (iPropertyType == CATVPAllPropertyType ) || ( iPropertyType == CATVPColor)) { // The color of the marker is modified CATGraphicAttributeSet * pAg = &(pRepWire->GetAttribut(0)); SetGraphicAttributeSet (pAg, CATVPColor, iPropertyValue); } }

This method is slightly the same as for the CAAPstINFPoint feature. The difference resides in retrieving the CAT3DMarkerGP in the CAT3DCustomRep. If in the CAAPstINFPoint case, the graphic primitive is unique, with the CAAPstINFWire, the CAT3DCustomRep contains at the creation, in first position the marker GP and in second position the line GP. This order is always kept, since even thought the CAT3DMarkerGP must be deleted to modify the symbol, the Modify method replaces the old GP by the new GP.

• SetLineGraphicAttribute

The goal of this method is to modify the color (CATVPColor), the thickness (CATVPLineType) and the type of line (CATVPLineType) of all the lines. In case of the CATVPAllPropertyType the three properties must be changed.

void CAAEPstINFVisuWire::SetLineGraphicAttribute(CATRep *iRep, CATVisPropertyType iPropertyType, CATVisPropertiesValues & iPropertyValue) { if ( NULL == iRep ) return; CAT3DCustomRep * pRepWire = (CAT3DCustomRep *) iRep ; // Test that the second GP is the GP which contains the lines int NbGP = pRepWire->GetGPSize(); if ( NbGP != 2 ) return ; CATGraphicPrimitive * pGP = pRepWire->GetGP(1) ; if ( 0 == pGP->IsAKindOf("CAT3DLineGP") ) return ; // Change the thickness if ( (iPropertyType == CATVPAllPropertyType ) || ( iPropertyType == CATVPWidth)) { CATGraphicAttributeSet * pAg = &(pRepWire->GetAttribut(1)); SetGraphicAttributeSet (pAg, CATVPWidth, iPropertyValue); } // Change the type if ( (iPropertyType == CATVPAllPropertyType ) || ( iPropertyType == CATVPLineType )) { CATGraphicAttributeSet * pAg = &(pRepWire->GetAttribut(1)); SetGraphicAttributeSet (pAg, CATVPLineType, iPropertyValue); } // Change the color if ( (iPropertyType == CATVPAllPropertyType ) || ( iPropertyType == CATVPColor)) { CATGraphicAttributeSet * pAg = &(pRepWire->GetAttribut(1)); SetGraphicAttributeSet (pAg, CATVPColor, iPropertyValue); } }

For the lines graphical attributes it is easier than for the points, all the properties are on a CATGraphicAttributeSet value. The CAT3DLineGP being the second graphic primitive of the CAT3DCustomRep, the CATGraphicAttributeSet value to modify is those returned by the GetAttribut method with 1 as argument.

[Top]

In Short

This article illustrates how to to implement the CATIVisProperties to associate graphical properties to features. This interface has an adapter class, CATExtIVisProperties, whose two methods are to be overwriten:

• IsGeomTypeDefined

This method defines the types of property defined by the feature. A type of geometry is a CATVisGeomType whose the main predefined values are: CATVPPoint, CATVPLine, CATVPEdge , CATVPMesh and CATVPGlobalType

• GetSubTypeFromPath

This method defines for each properties displayed in the "Graphic Properties" toolbar the type of geometry affected.

The graphical representations take account of the graphical properties thanks to methods of the CATExtIVisu class adapter of the CATIVisu interface: SetPointGraphicAttribute, SetLineGraphicAttribute, etc. When the default implementation of these methods cannot modify correctly the graphic representation of the feature, it is necessary to overwrite them.
