This
task shows how to create a Node Interface Property.
A node interface property is a property that you will apply to an existing
Point Analysis Interface.
In a assembly context, the Point Analysis Interface must be
created in the sub-analyses. |
 |
Only available with the Generative Assembly Structural
Analysis (GAS) product. |
 |
|
 |
-
Activate the first sub-analysis.
To do this, double-click Analysis Manager
under Part1 (Part1.1) in the specification tree. |
-
Click Node Interface Property
in the Connection Properties toolbar.
The Node Interface Property dialog box appears.

|
-
Select a point analysis interface.
In this particular example, select the Points
Analysis Interface.1 object under Part1 (Part1.1) in
the specification tree.
 |
-
Click the Component Edition button
to specify the parameters.

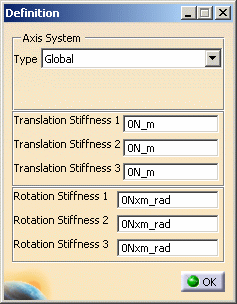

The Definition dialog box appears.

-
Axis System: lets you specify the axis
system you want to use.
For more details, refer to Axis System
Type.
-
Translation Stiffness: lets you enter
the translational stiffness values.
-
Rotation Stiffness: lets you enter the
rotational stiffness values.
|
-
Set the desired parameters in the Definition dialog box.
-
Click OK in the Definition dialog box.
-
Click OK in the Node Interface Property dialog
box.

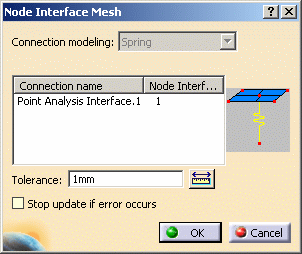

A Node Interface Property.1 property
appears in the specification tree under the Properties.1
set and a Node Interface Mesh.1 mesh part appears under
the Nodes and Elements set (in the first sub-analysis).
 |
|
 |
|
 |
