Creating Dialog Boxes Automatically Resizable

3D PLM Enterprise Architecture	User Interface - Dialogs	Creating Dialog Boxes Automatically Resizable Arranging Dialog Objects Using Tabulations
Use Case

Abstract

This article shows how to create extendable dialog boxes.

What You Will Learn With This Use Case
The CAADlgTabulation Use Case
Step-by-Step
In Short
References

What You Will Learn With This Use Case

This use case is intended to show you how to create Dialog boxes with dynamic frames. The frames appear and disappear and the dimensions of the dialog box are automatically redefined. For such behavior the frame positioning must be done by a tabulation layout [1] and not by a grid layout [2].

[Top]

The CAADlgTabulation Use Case

CAADlgTabulation is a use case of the CAADialog.edu framework that illustrates Dialog framework capabilities.

[Top]

What Does CAADlgTabulation Do

CAADlgTabulation use case creates three Dialog boxes:

The "More/Less Push Button Demonstrator" Dialog box

Fig. 1a: Original Size

Fig. 1b: Extended Size

When the end user clicks the "More" button, the Dialog box is expanded and when it clicks on the "Less" button, the dialog box retrieves its original size.

The "More & Radio Button Demonstrator" Dialog box

Fig. 2a: Without frame

When the end user select the "without frame" radio button, no frame is displayed.

Fig. 2b: With more frame A

When the end user selects the "With more frame A" radio button, the frame entitled "Frame A" is displayed on the right side.

Fig. 2c: With more frame B

When the end user selects the "With more frame B" radio button, the frame entitled "Frame B" is displayed on the right side.

The "Frame Replacement Demonstrator" Dialog box

According to the selected value in the combo, the frame under the "Combo Frame" frame is not the same: "Coordinates Frame", "Circle Frame" or " Between Frame".

Fig. 3a:Coordinates

Fig. 3b: Circle Center

Fig. 3c: Between

To obtain such behavior, the frames must be attached in their container by a tabulation layout. On the pictures below, the tabulations are represented by thick lines and the frame's attachments are represented by a green rectangular box.

The "More/Less Push Button Demonstrator" Dialog box

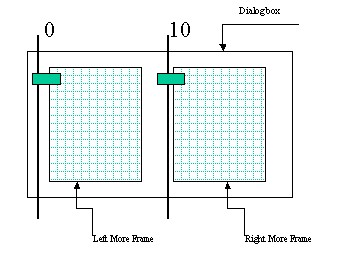

Fig. 4a:

Fig. 4b:

The "Left More Frame" frame is always visible and attached to the first (0) vertical line. The "Right More Frame" frame is

Invisible and detached when the dialog box has its original size. Fig.1a and Fig.4a
Visible and attached to the second (10) vertical line when the dialog box is extended. Fig.1b and Fig.4b

The "More & Radio Button Demonstrator" Dialog box

It is similar to the previous dialog box:

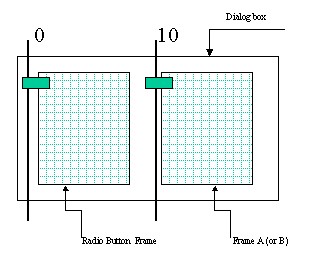

Fig. 5a

Fig. 5b

The "Radio Button Frame" frame is always visible and attached to the first (0) vertical line.

If the "Without frame" radio button is checked - Fig. 2a

The "Frame A" and the "Frame B" are invisible and detached. Fig. 5a

If the "With more frame A" radio button is checked - Fig. 2b

The "Frame A" is visible and attached to the second (10) vertical line, and the "Frame B" is still invisible and detached. Fig. 5b

If the "With more frame B" radio button is checked - Fig. 2c

The "Frame B" is visible and attached to the second (10) vertical line, and the "Frame A" is yet invisible and detached. Fig. 5b

The "Frame Replacement Demonstrator" Dialog box

In this case the attachments are horizontal.

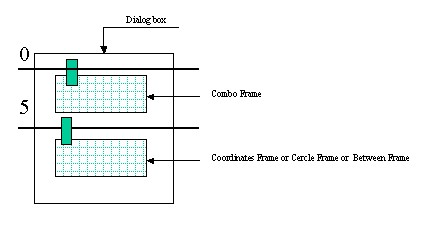

Fig. 6

The "Combo Frame" frame is always visible and attached to the first (0) horizontal line. The frame attached to the second (5) horizontal line is the frame entitled either "Coordinates Frame" (Fig. 3a) or "Circle Frame" (Fig. 3b) or ''Between Frame" (Fig. 3c) . When one of these three frames is attached and visible, the two others are invisible and detached.

Inside the frames entitled "Left More Frame", "Right More Frame", "Frame A" and so on, you can use the grid layout [2] to locate the different components.

[Top]

How to Launch CAADlgTabulation

To launch the use case, you will need to set up the build time environment, then compile CAADlgDialogDemonstrator along with its prerequisites, set up the run time environment, and then execute the use case [3].

mkrun -c CAADlgDialogDemonstrator

When the CAADlgDialogDemonstrator application is launched:

On the Tabulation menu click More & Radio Button
Click With more frame A
Click With more frame B
Click Without frame
Click OK or Cancel
On the Tabulation menu click More/Less Push Button
Click More
Click Less
Click OK or Cancel
On the Tabulation menu click Frame Replacement
Click Circle Center in the combo
Click Between in the combo
Click Coordinates in the combo
Click OK or Cancel
On the File menu click Exit

[Top]

Where to Find the CAADlgTabulation Code

The CAADlgTabulation use case is made of several classes located in the CAADlgDialogDemonstrator.m module of the CAADialog.edu framework:

Windows	`InstallRootDirectory\CAADialog.edu\CAADlgDialogDemonstrator.m\`
Unix	`InstallRootDirectory/CAADialog.edu/CAADlgDialogDemonstrator.m/`

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

In the LocalInterfaces and src directory, you will find the following files:

CAADlgDemoApplication.h/CAADlgDemoApplication.cpp: The "DialogDemonstrator" application definition. ( a CATInteractiveApplication )
CAADlgDemoWindow.h/CAADlgDemoWindow.cpp : The CATDlgDocument definition.
CAADlgMoreButtonDlg.h/CAADlgMoreButtonDlg.cpp: The "More Button Demonstrator" dialog box definition.
CAADlgFrameReplaceDlg.h/CAADlgFrameReplaceDlg.cpp : The "Frame Replacement Demonstrator" dialog box definition
CAADlgMoreRadioDlg.h/CAADlgMoreRadioDlg.cpp : The "More Radio Demonstrator" dialog box definition.

[Top]

Step-by-Step

There are three main steps to define the three Dialog boxes of the CAADlgTabulation use case:

Defining the Class Constructor
Defining the Build Method
Defining the Callback Method

[Top]

Defining the Class Constructor

CAADlgMoreButtonDlg::CAADlgMoreButtonDlg(CATDialog * pParentDlg) :
  CATDlgDialog (pParentDlg,"CAADlgMoreButtonDlg", CATDlgWndBtnOKCancel |
                                                  CATDlgWndAutoResize |
                                                  CATDlgWndNoResize ),
  ...
{
   ...
}

Each Dialog box is a class deriving from the CATDlgDialog class. The arguments of the constructor are as follows:

pParentDlg , the Dialog object which is the parent of the Dialog box.
CAADlgMoreButtonDlg, the identifier of the Dialog box. This identifier is not used for the resources.
The style is the concatenation of three values:
- CATDlgWndBtnOKCancel: The recommended option to have the OK and Cancel buttons
- CATDlgWndAutoResize: The Dialog box is automatically resized with respect of its content's modifications.
- CATDlgWndNoResize: The Dialog Box can not be resized by the end user. It is recommended option with the CATDlgWndAutoResize style
- The CATDlgGridLayout style has not been used, and must not be used, to benefit of the attachment.

[Top]

Defining the Build Method

The contents of this section depends on the Dialog box.

The "More/Less Push Button Demonstrator" Dialog box
The "More & Radio Button Demonstrator" Dialog box
The "Frame Replacement Demonstrator" Dialog box

The "More/Less Push Button Demonstrator" Dialog box

void CAADlgMoreButtonDlg::Build()
{
   a/ Creating Dialog Objects

   b/ Arranging Dialog Objects

   c/ Defining Callbacks
}
...

Creating Dialog Objects

...
   CATDlgFrame * pFrameLeftMore = new CATDlgFrame(this, "FrameLeftMore",
                                                        CATDlgGridLayout );

      CATDlgFrame * pFrameBase = new CATDlgFrame(pFrameLeftMore, "FrameBase",
                                                                 CATDlgGridLayout );

         ... The FrameBase contents is not detailed

      CATDlgPushButton * pPushButtonMore = new CATDlgPushButton(pFrameLeftMore,
                                                "PushButtonMore");

      _MoreMsg = CATMsgCatalog::BuildMessage("CAADlgMoreButtonDlg","ButtonMore",
                                                    NULL,0,"More>>");
      _LessMsg = CATMsgCatalog::BuildMessage("CAADlgMoreButtonDlg","ButtonLess",
                                                    NULL,0,"Less>>");
      pPushButtonMore->SetTitle(_MoreMsg);

   _pFrameRightMore = new CATDlgFrame(this, "FrameRightMore", CATDlgGridLayout );

      ... The FrameRightMore contents is not detailed
...

The "Left More Frame" frame is pFrameLeftMore a CATDlgFrame pointer; the argument of the constructor are the following:

this: The frame is positioned in the Dialog box
FrameLeftMore is the identifier of frame. It will be useful to set resources [4]
The CATDlgGridLayout style enables to position its contents by a grid layout

The "Base Options Frame" frame is pFrameBase a CATDlgFrame pointer; the argument of the constructor are the following:

pFrameLeftMore: The frame is positioned in the "Left More Frame" frame
FrameBase is the identifier of frame. It will be useful to set resources [4]
The CATDlgGridLayout style enables to position its contents by a grid layout

The push button is pPushButtonMore a CATDlgPushButton pointer

PushButtonMore is the identifier of the push button. Its title is assigned by retrieving the "More" and "Less" NLS strings in the CAADlgMoreButtonDlg.CATNLs file [4].

The "Right More Frame" frame is _pFrameRightMore a CATDlgFrame pointer; the argument of the constructor are the following:

this: The frame is positioned in the Dialog box
FrameRightMore is the identifier of frame. It will be useful to set resources [4]
The CATDlgGridLayout style enables to position its contents by a grid layout

Arranging Dialog Objects

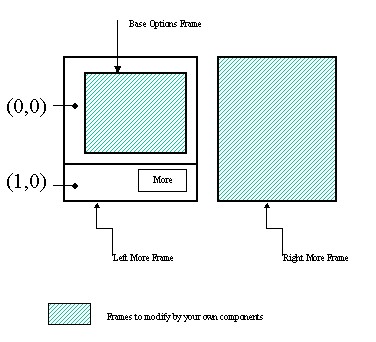

For the "More/Less" Dialog box, the layout is the following:

Inside the "Left More Frame" there are always a frame entitled "Base Options Frame" located in (0,0) and a push button located in (1,0). In the "Base Options Frame" frame you set all the options always available whereas in the "Right More Frame" you set only the "more" options.

...
   SetVerticalAttachment(0, CATDlgTopOrLeft, pFrameLeftMore,NULL);
   pFrameBase -> SetGridConstraints(0, 0, 1, 1, CATGRID_4SIDES);
   pPushButtonMore -> SetGridConstraints(1, 0, 1, 1, CATGRID_RIGHT);
   _pFrameRightMore->SetVisibility(CATDlgHide);
...

The pFrameLeftMore frame is always attached to the first (0) tabulation of the Dialog box. It is done with the SetVerticalAttachment method:

0: The index value. Note that the value of the index is not important. You must just respect an increasing order from left to right.
CATDlgTopOrLeft: the frame is attached to the left side.See Fig. 4a
pFrameLeftMore: The frame's pointer attached to the tabulation
NULL: To end the list of attachments. ( It is a method with no constant argument)

pFrameBase is located in (0,0) in the "Left More Frame" frame.
pPushButtonMore is located in (1,0) in the "Left More Frame" frame and is right justified.
_pFrameRightMore is not attached and is not visible.

The Callback Definition

...
   AddAnalyseNotificationCB  (pPushButtonMore,
                              pPushButtonMore->GetPushBActivateNotification(),
     (CATCommandMethod)&CAADlgMoreButtonDlg::OnPushButtonMorePushBActivateNotification,
                   NULL);
...

To be advised that the end user has clicked on the More button you set a callback thanks to the AddAnalyseNotificationCB method:

pPushButtonMore is the CATDlgPushButton class pointer on the More Button.
GetPushBActivateNotification is method returning the notification class when a push button is pushed.
OnPushButtonMorePushBActivateNotification is the method explained in the "Defining the Callback Methods" section.

The "More & Radio Button Demonstrator" Dialog box

...
void CAADlgMoreRadioDlg::Build()
{
  a/ Creating Dialog Objects

  b/ Arranging Dialog Objects

  c/ Defining Callbacks
}
...

Creating Dialog Objects

...
  CATDlgFrame * pFrameMain = new CATDlgFrame(this, "FrameMain", CATDlgGridLayout );

     ... FrameMain contents not explained

  _pFrameDetailA = new CATDlgFrame(this, "FrameDetailA", CATDlgGridLayout);

     ... FrameDetailA contents not explained

  _pFrameDetailB = new CATDlgFrame(this, "FrameDetailB", CATDlgGridLayout);

     ... FrameDetailB contents not explained
...

The three frames, pFrameMain, _pFrameDetailA and _pFrameDetailB are created in the same way:

this: the frame is positioned in the Dialog box
"FrameMain", "FrameDetailA" or "FrameDetailB" are the frame's identifiers. It will be useful to set resources [4]
The CATDlgGridLayout style enables to position their contents by a grid layout

Arranging Dialog Objects - Fig. 5a

...
  SetVerticalAttachment(0, CATDlgTopOrLeft,pFrameMain,NULL);
  _pFrameDetailB->SetVisibility(CATDlgHide);
  _pFrameDetailA->SetVisibility(CATDlgHide);
...

The "FrameMain" frame, pointed by pFrameMain, is visible and attached to the first (0) vertical tabulation. It is done thanks to the SetVerticalAttachment method:

0: The index value. Note that the value of the index is not important. You must just respect an increasing order from left to right.
CATDlgTopOrLeft: the frame is attached to the left side.
pFrameMain: The frame's pointer attached to the tabulation
NULL: To end the list of attachments. ( It is a method with no constant argument)

The "FrameDetailA" and "FrameDetailB" frames, pointed by _pFrameDetailA and _pFrameDetailB respectively, are hidden and not attached.

The Callbacks Definition

...
   AddAnalyseNotificationCB (pRadioButtonND,
                               pRadioButtonND->GetRadBModifyNotification(),
     (CATCommandMethod)&CAADlgMoreRadioDlg::OnRadioButtonNDRadBModifyNotification,
                               NULL);
   AddAnalyseNotificationCB (pRadioButtonDB,
                               pRadioButtonDB->GetRadBModifyNotification(),
     (CATCommandMethod)&CAADlgMoreRadioDlg::OnRadioButtonDBRadBModifyNotification,
                               NULL);

   AddAnalyseNotificationCB (pRadioButtonDA,
                               pRadioButtonDA->GetRadBModifyNotification(),
     (CATCommandMethod)&CAADlgMoreRadioDlg::OnRadioButtonDARadBModifyNotification,
                               NULL);
...

To be advised that the end user has clicked on a radio button you set callbacks thanks to the AddAnalyseNotificationCB method:

pRadioButtonND is the CATDlgRadioButton class pointer on the first radio button.
GetRadBModifyNotification is the method returning the notification class when the radio button state changes: when the end user clicks on the button and when it chooses another radio button.
OnRadioButtonNDRadBModifyNotification is the method explained in the "Defining the Callback Methods" section.

Same thing for the two other radio buttons.

The "Frame Replacement Demonstrator" Dialog box

...
void CAADlgFrameReplaceDlg::Build()
{
   a/ Creating Dialog objects

   b/ Arranging the Dialog Objects

   c/ Defining Callback
}

Creating Dialog Objects

...
   CATDlgFrame * pFrameCombo = new CATDlgFrame(this, "FrameCombo",
                                                     CATDlgGridLayout );
      ... FrameCombo contents not explained

   CATDlgFrame * pFrameCoord = new CATDlgFrame(this, "FrameCoord",
                                                     CATDlgGridLayout );
      ... FrameCoord contents not explained

   CATDlgFrame * pFrameCircleCenter = new CATDlgFrame(this, "FrameCircleCenter",
                                                            CATDlgGridLayout );
   _pListFrame[CircleCenter] = pFrameCircleCenter ;

      ... FrameCircleCenter contents not explained

   CATDlgFrame * pFrameBetween = new CATDlgFrame(this, "FrameBetween",
                                                       CATDlgGridLayout );
   _pListFrame[Between] = pFrameBetween ;

      ... FrameBetween contents not explained
...

The four pFrameCombo, pFrameCoord, pFrameCircleCenter and pFrameBetween frames are created on the same way:

this: The frame is positioned in the Dialog box
"FrameCombo", "FrameCoord", "FrameCircleCenter" or "FrameBetween" are the frame's identifiers. It will be useful to set resources [4]
The CATDlgGridLayout style enables to position their contents by a grid layout

_pListFrame is an array of CATDlgFrame instances declared as data member of the CAADlgFrameReplaceDlg class. It keeps the list of frames to switch. See its usage in the "Defining the Callback Method" section

Arranging Dialog Objects - Fig. 6

...
   SetHorizontalAttachment(0,CATDlgTopOrLeft,pFrameCombo,NULL);
   _CurrentSelection = 0 ;
   ...
   pFrameCoord->SetVisibility(CATDlgHide);
   pFrameCircleCenter->SetVisibility(CATDlgHide);
   pFrameBetween->SetVisibility(CATDlgHide);

   SetHorizontalAttachment(5,CATDlgTopOrLeft,_pListFrame[_CurrentSelection],NULL);
   _pListFrame[_CurrentSelection]->SetVisibility(CATDlgShow);
...

The "FrameCombo" frame, pointed by pFrameCombo, is visible and attached to the first (0) horizontal tabulation thanks to the SetHorizontalAttachment method:

0: The index value.
CATDlgTopOrLeft: the frame is attached to the top side.
pFrameCombo: The frame's pointer attached to the tabulation
NULL: To end the list of attachments.

_pListFrame is a data member of the CAADlgFrameReplaceDlg class which keeps the list of frames to switch. See the previous section
_CurrentSelection is also a data member to keep the current attached frame on the second horizontal tabulation.
The three frames are set invisible.
The current frame (one among the three possible) is set visible and attached to the second (5) horizontal tabulation thanks to the SetHorizontalAttachment method:

5: The index value.
CATDlgTopOrLeft: the frame is attached to the top side.
pFrameCombo: The frame's pointer attached to the tabulation
NULL: To end the list of attachments.

Defining Callback

...
   AddAnalyseNotificationCB (_pComboPointType,
                 _pComboPointType->GetComboSelectNotification(),
          (CATCommandMethod)&CAADlgFrameReplaceDlg::OnComboSelectNotification,
                               NULL);
...

To be advised that the end user has select a new item in the combo list, you set a callback thanks to the AddAnalyseNotificationCB method:

_pComboPointType is the CATDlgCombo class pointer. It is a pointer to an object located in the "FrameCombo" frame but not explained here.
GetComboSelectNotification is the method returning the notification class when a selection in the combo occurs.
OnComboSelectNotification is the method explained in the "Defining the Callback Methods" section.

[Top]

Defining the Callback Method

In this section, we describe the methods which are called when the frame layout must be changed.

The "More/Less Push Button Demonstrator" Dialog box
The "More & Radio Button Demonstrator" Dialog box
The "Frame Replacement Demonstrator" Dialog box

The "More/Less Push Button Demonstrator" Dialog box

The OnPushButtonMorePushBActivateNotification method is called when the end user clicks on the More/Less push button.

...
void CAADlgMoreButtonDlg::OnPushButtonMorePushBActivateNotification(CATCommand* cmd,
                                   CATNotification* evt, CATCommandClientData data)
{
   CATDlgPushButton * pButton = (CATDlgPushButton *) cmd ;
   if ( (NULL != pButton ) && (NULL !=_pFrameRightMore) )
   {
      if( TRUE == _IsMoreWindowOpen)
      {
         ResetAttachment(_pFrameRightMore);
         _pFrameRightMore->SetVisibility(CATDlgHide);

         pButton->SetTitle (_MoreMsg);

         _IsMoreWindowOpen= FALSE;
      }else
      {
         SetVerticalAttachment(10, CATDlgTopOrLeft, _pFrameRightMore, NULL);
         _pFrameRightMore->SetVisibility(CATDlgShow);

         pButton->SetTitle (_LessMsg);

         _IsMoreWindowOpen = TRUE;
      }
   }
}
...

_IsMoreWindowOpen is a data member of the CAADlgMoreButtonDlg class. It is a CATBoolean value set TRUE when the right frame is opened and FALSE otherwise. The value is initialized to FALSE in the class constructor.

To hide the right frame ( _IsMoreWindowOpen = TRUE)

_pFrameRightMore the right frame is detached from its tabulation and hidden. The title of the push button becomes "More".

To show the right frame ( _IsMoreWindowOpen = FALSE)

_pFrameRightMore the right frame is attached to the second vertical tabulation and shown. See Fig. 4b. The title of the push button becomes "Less".

The "More & Radio Button Demonstrator" Dialog box

The OnRadioButtonDARadBModifyNotification method is called when the end user selects or deselects the "With more frame A" radio button.

...
void CAADlgMoreRadioDlg::OnRadioButtonDARadBModifyNotification(CATCommand* cmd,
                                CATNotification* evt, CATCommandClientData data)
{
  CATDlgRadioButton * pRadioButton = (CATDlgRadioButton *) cmd ;
  if ( (NULL != _pFrameDetailA) && ( NULL != pRadioButton) )
  {
     if (pRadioButton->GetState() == CATDlgCheck)
     {
        SetVerticalAttachment(10, CATDlgTopOrLeft, _pFrameDetailA, NULL);
        _pFrameDetailA->SetVisibility(CATDlgShow);
     }
     else
     {
        ResetAttachment(_pFrameDetailA);
       _pFrameDetailA->SetVisibility(CATDlgHide);
     }
  }
}
...

When the state of the button is:

CATDlgCheck: The frame is attached to the second (10) vertical tabulation and the frame is shown- See Fig 5b
Otherwise (CATDlgUncheck): The current frame is detached and hidden.

The OnRadioButtonDBRadBModifyNotification method is called when the end user selects or deselects the "With more frame B" radio button. The contents of this method is similar to the previous one.

The OnRadioButtonNARadBModifyNotification method is called when the end user selects or deselects the "Without frame" radio button. The contents of this method is empty once there is no frame to attach.

The "Frame Replacement Demonstrator" Dialog box

The OnComboSelectNotification method is called when the end user selects a new element in the combo list.

...
void CAADlgFrameReplaceDlg::OnComboSelectNotification(CATCommand* cmd, CATNotification* evt, CATCommandClientData data)
{
   if ( NULL != _pComboPointType )
   {
      ResetAttachment(_pListFrame[_CurrentSelection]);
      _pListFrame[_CurrentSelection]->SetVisibility(CATDlgHide);

      int NewCurrentSelection = _pComboPointType->GetSelect() ;
      SetHorizontalAttachment(5, CATDlgTopOrLeft
                                     , _pListFrame[NewCurrentSelection], NULL);
      _pListFrame[NewCurrentSelection]->SetVisibility(CATDlgShow);

      _CurrentSelection = NewCurrentSelection ;
   }
}
...

The code is the following: See Fig. 6

Retrieving the frame to detach : The _CurrentSelection frame in the _pListFrame table. See the Build method
Detaching the old frame (_CurrentSelection) from its tabulation and hidding it
Retrieving the frame to attach: The current value in the combo list, NewCurrentSelection
Attaching the NewCurrentSelection frame to the fit tabulation and showing it

NewCurrentSelection becomes the new current index value kept in the _CurrentSelection data member.

[Top]

In Short

This use case explains how to use the tabulation layout to create dynamic dialog boxes, such as a more and less dialog box.

[Top]

References

[1]	Arranging Dialog Objects Using Tabulations
[2]	Arranging Dialog Objects Using Grid
[3]	Building and Launching a CAA V5 Use Case
[4]	Assigning Resources to a Dialog Box
[Top]

History

Version: 1 [Fev 2003]	Document created
[Top]

3D PLM Enterprise Architecture

User Interface - Dialogs
