Building and Launching a CAA V5 Use Case

How to set up the environment, compile and execute a use case

Use Case

Abstract

This article shows how to set up a CAA V5 build time environment for use case, compile one or several use case modules, then set up a run time environment, and finally launch the use case.

What You Will Learn With This Use Case
About the Operating Systems
The CAAUseCase Use Case
In Short

What You Will Learn With This Use Case

This use case is intended to show you how to set up a CAA V5 build time environment, by copying the CAA frameworks containing the use cases in a workspace root directory of your own, get the prerequisite frameworks of the CAA frameworks, and build a use case along with its prerequisites. Then, it shows how to set up a run time environment, and finally launch the use case.

[Top]

About the Operating Systems

The operating systems V5 currently supports are used thanks to an acronym in different directory paths to store dedicated files. These acronyms are:

Acronyms	Operating Systems
intel_a	Windows XP 32-bit
win_b64	Windows XP 64-bit
aix_a	AIX 32-bit
aix_a64	AIX 64-bit
hpux_b	HP-UX
solaris_a	Solaris

A typical usage of these acronyms is to name the directory path where the executable code is stored. For example,

InstallRootDirectory\intel_a\code\bin

Where InstallRootDirectory is the directory where you install the V5 run time.

[Top]

The CAAUseCase Use Case

CAAUseCase is a generic name for the CAA V5 use cases. You should just replace CAAUseCase by the actual name of the CAA V5 use case module you want to build and launch. To leave your CD-ROM installation as a safe reference, create a separate root directory for the CAA use cases in which you can freely copy, build, run, and possibly modify the use cases. In the following, assume that InstallRootDirectory is the directory where you install the V5 run time and the CAA V5 CD-ROMs, and that ToolsRootDirectory is the directory where you install the CAA-RADE V5 CD-ROM.

[Top]

Step-by-Step with Windows

To build and launch a CAA use case, first set up the build time environment by copying the CAA frameworks containing the use cases in a workspace root directory of your own, and build the use case associated module(s) along with their prerequisites using the Multi-Workspace Application Builder mkmk. Then set up the run time environment, and launch the use case. Assume the load module is CAAUseCase.m. Open a Command Prompt (DOS window) and:

Copy the InstallRootDirectory\CAADoc\CAA*.edu frameworks in your workspace root directory MyRootDirectory
Set up the build time environment
```
ToolsRootDirectory\OS_a\code\command\tck_init
tck_profile TCK
chdir MyRootDirectory\CAAFramework.edu
mkGetPreq -p InstallRootDirectory
```
Where OS_a is intel_a for Windows XP 32 bit, and win_b64 for Windows XP 64 bit.

To know which TCK you can use, type tck_list, and choose the level that matches your installation among those available.

If you want to build and run a given use case, or a subset of the supplied use cases, copy only the frameworks that contain these use case. Since some use cases request other use cases, run mkCopyPreq before mkGetPreq, as follows:
```
mkCopyPreq -p InstallRootDirectory\CAADoc
```
This will retrieve all the prerequisite CAA frameworks of the use case frameworks that you have copied.
Build the modules
- If there is only one module in the use case framework
```
mkmk -u CAAUseCase.m
```
- If there are several modules, build them at a time
```
mkmk -au
```
For a CATIA or DELMIA use case:
- Set up the run time environment
```
mkCreateRuntimeView
mkrun -c "cmd"
```
- Activate the trace output. Most of the use cases include traces to enable you to follow its different steps.
```
set CNEXTOUTPUT=CONSOLE
```
- Launch the use case. Refer to the use case article, where a section entitled "How to Launch the CAAUseCase" may give additional information. You may find the three following cases:
  1. If the use case is made up of a single exe launched without parameters, nothing special is indicated in the use case article. Simply type:
```
CAAUseCase
```
  2. If the use case is made up of a single exe launched with parameters, they are described in the use case article to which you should refer to know what they are and what to type, usually something like:
```
CAAUseCase arg1 arg2 ...
```
  3. If the use case is made up of a DLL, it is usually intended to be launched from CATIA. The full command sequence is described in the use case article to which you should refer. To launch CATIA, type:
```
CNEXT
```
As regards ENOVIA Portal, there are two ways of launching a use case built on the client side:
1. The browser mode
  - Set up the run time environment
```
mkCreateRuntimeView
```

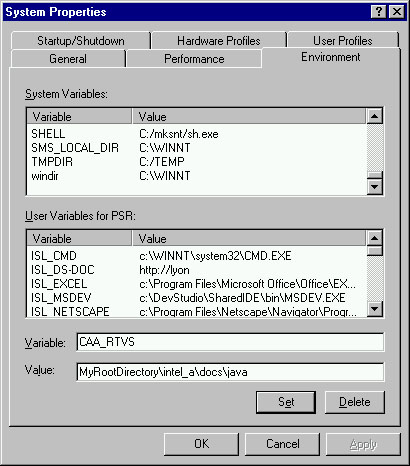

  - Set up the CAA_RTVS environment variable. In the Start menu, point to Settings and click Control Panel to display the System Properties dialog box. In the Environment tab, type CAA_RTVS in the Variable box, and its value in the Value box:
  - Start your web browser. In the Address or Location box, depending on whether you use Internet Explorer or Netscape, type:
```
http://HttpPortalServer/enovia_portal/indexCAA.html
```
2. The application mode
  - Set up the run time environment
```
mkCreateRuntimeView
mkrun -c "cmd"
```
  - Launch the use case with the command CAARunUseCase provided in MyRootDirectory/CAAFramework.edu/CNext/code/command.
    Each command is named after its use case. The commands all launch the same Java application but differ from each other by the option -DFilePrefix which specifies the prefix of the sample's configuration files.
```
MyRootDirectory\CAAFramework.edu\CNext\code\command\CAARunUseCase OrbixPortalServer
```

where

`InstallRootDirectory`	The pathname of the directory into which the CATIA V5 run time and CATIA-CAA V5 CD-ROMs were unloaded
`ToolsRootDirectory`	The pathname of the directory into which the CAA-RADE V5 CD-ROM were unloaded
`MyRootDirectory`	The pathname of the root directory where you can copy and build the use case
`TCK`	The Tool Configuration Key, such as V5R9 or V5R9_SP2
`CAAFramework.edu`	The CAA framework that contains the use case module
`CAAUseCase.m`	The use case module, or one of the modules that make up the use case
`CAARunUseCase`	The command which launches the use case, delivered in MyRootDirectory\CAAFramework.edu\CNext\code\command
`HttpPortalServer`	The hostname of the server in the form: server:http_port or server if the port is 80. ex: MyMachine:85
`OrbixPortalServer`	The hostname of the server in the form server:orbix_port or server if the port is 1570. ex: MyMachine:1574

[Top]

Step-by-Step with Microsoft Visual Studio .NET

To use Visual Studio .NET with CAA V5, you need to set up the build time environment, and access the prerequisite frameworks.

Start Visual Studio .NET.
Copy the InstallRootDirectory\CAADoc\CAA*.edu frameworks in your workspace root directory MyRootDirectory either from a Command prompt or using Windows Explorer.
Set up the build time environment
- From the File menu, select Open CAA V5 Workspace...
- In the Open CAA V5 Workspace box
  1. Select Mkmk in the With box.
  2. Type or select the directory of your workspace MyRootDirectory in the Workspace Directory box.
  3. Select the tool level that matches your installation in the Tool Level combo list, like R16 for example.
  4. Click OK.
  5. Click Close in the Initializing tools... window.
- Click OK in the prompt box that appears if MyRootDirectory was never used before by Visual Studio .NET as a project workspace.
- In the Select Modules to generate Developer Studio projects window that automatically appears, check the CAA frameworks and modules you want to work with, and click OK. Click OK in the Runtime Environment Warning dialog box.
Access the CAA use case frameworks prerequisites
- From the CAAV5 Workspace menu, select Locate Prerequisite Workspaces....
  1. In the Mode frame, check Access prerequisites from their origin location.
  2. In the Origin for prerequisite Frameworks field, click Add, and select the CATIA-CAA V5 installation directory.
  3. Click OK twice.
- Click Close in the prompt box.

You can now build and launch a CAA use case, that is, build the use case associated module(s) along with their prerequisites using mkmk. Then you set up the runtime environment, and launch the use case. Here we assume that the load module is CAAUseCase.m.

If you have closed Visual Sutdio .NET, restart it.
From the File menu, click Open CAA V5 Workspace....
In the Open CAA V5 Workspace box
1. Select Mkmk in the With box
2. Type or select the directory of your workspace MyRootDirectory in the Workspace Directory box.
3. Select the tool level that matches your installation in the Tool Level box, like V5R16 for example.
4. Click OK.
Build the modules
- From the Build menu, select mkmk. The Code Builder (mkmk) box appears.
  - Check the Update makefiles (-u) option.
  - Check the CAAUseCase module in its CAA framework.
  - Click OK.
From the CAAV5 Workspace menu, select Create/Update Runtime View.... The Create RunTimeView dialog box appears.
- In the Frameworks types to copy box, click all.
- Click OK.
Launch the use case.
- From the Tools menu, select Execute a User Command.
- Refer to the use case article, where a section entitled "How to Launch the CAAUseCase" may give additional information. You may find the three following cases:
  1. If the use case is made up of a single exe launched without parameters, nothing special is indicated in the use case article. Simply type or select the exe name in the Command and executable field, and click OK.
  2. If the use case is made up of a single exe launched with parameters, they are described in the use case article to which you should refer to know what they are and what to type. Type or select the exe name in the Command and executable field, and the arguments in the Arguments field, and click OK.
  3. If the use case is made up of a DLL, it is usually intended to be launched from CATIA. The full command sequence is described in the use case article to which you should refer. To launch CATIA, enter the full pathname of CNEXT.exe (InstallRootDirectory\intel_a\code\bin\CNEXT.exe) in the Command and executable box, and click OK. Replay the scenario described in the use case article.

[Top]

Step-by-Step with UNIX

Copy the InstallRootDirectory/CAADoc/CAA*.edu frameworks in your workspace root directory MyRootDirectory
Set up the build time environment
```
$ . ToolsRootDirectory/OS_a/code/command/tck_init
$ tck_profile TCK
$ cd  MyRootDirectory/CAAFramework.edu
$ mkGetPreq -p InstallRootDirectory
```
To know which TCK you can use, type tck_list, and choose the level that matches your installation among those available.

If you want to build and run a given use case, or a subset of the supplied use cases, copy only the frameworks that contain these use case. Since some use cases request other use cases, run mkCopyPreq before mkGetPreq, as follows:
```
mkCopyPreq -p InstallRootDirectory/CAADoc
```
This will retrieve all the prerequisite CAA frameworks of those you copied.
Build the modules
- If there is only one module in the use case framework
```
$ mkmk -u CAAUseCase.m
```
- If there are several modules, build them at a time
```
$ mkmk -au
```
For a CATIA or DELMIA use case:
- Set up the run time environment
```
$ mkCreateRuntimeView
$ mkrun -c "/bin/ksh"
```
- Launch the use case. Refer to the use case article, where a section entitled "How to Launch the CAAUseCase" may give additional information. You may find the three following cases:
  1. If the use case is made up of a single module launched without parameters, nothing special is indicated in the use case article. Simply type:
```
CAAUseCase
```
  2. If the use case is made up of a single module launched with parameters, they are described in the use case article to which you should refer to know what they are and what to type, usually something like:
```
CAAUseCase arg1 arg2 ...
```
  3. If the use case is made up of a shared library, it is usually intended to be launched from CATIA. The full command sequence is described in the use case article to which you should refer. To launch CATIA, type:
```
CNEXT
```
For an ENOVIA LCA use case
- Set up the run time environment
```
$ mkCreateRuntimeView
$ mkrun -cf EnvFileFullPath -c "/bin/ksh"
```
  Where:
  - EnvFileFullPath is the full pathname of the environment file you want to use to launch the use case
- Launch the use case. Refer to the use case article, where a section entitled "How to Launch the CAAUseCase" may give additional information. You may find the two following cases:
  1. If the use case is made up of a single module launched without parameters, nothing special is indicated in the use case article. Simply type:
```
CAAUseCase
```
  2. If the use case is made up of a single module launched with parameters, they are described in the use case article to which you should refer to know what they are and what to type, usually something like:
```
CAAUseCase arg1 arg2 ...
```
As regards ENOVIA Portal, there are two ways of launching a sample built on the client side:
1. The browser mode
  - Set up the run time environment
```
$ mkCreateRuntimeView
```
  - Set up the CAA_RTVS environment variable
```
$ export CAA_RTVS=MyRootDirectory/OS_a/docs/java
```
  - Start your web browser. In the Location box, type:
```
http://HttpPortalServer/enovia_portal/indexCAA.html
```
2. The application mode
  - Set up the run time environment
```
$ mkCreateRuntimeView
$ mkrun -c "/bin/ksh"
```
  - Launch the use case with the command CAARunUseCase provided in MyRootDirectory/CAAFramework.edu/CNext/code/command.
    Each command is named after its use case. The commands all launch the same Java application but differ from each other by the option -DFilePrefix which specifies the prefix of the sample's configuration files.
```
MyRootDirectory/CAAFramework.edu/CNext/code/command/CAARunUseCase OrbixPortalServer
```

where

`InstallRootDirectory`	The pathname of the directory into which the CATIA V5 run time and CATIA-CAA V5 CD-ROMs were unloaded
`ToolsRootDirectory`	The pathname of the directory into which the CAA-RADE V5 CD-ROM were unloaded
`MyRootDirectory`	The pathname of the root directory where you can copy and build the use case
`OS_a`	The UNIX operating system dependent directory. Valid values are: `aix_a` for AIX `aix_a64` for AIX 64 bit `hpux_b` for HP-UX `solaris_a` for Solaris
`TCK`	The Tool Configuration Key, such as V5R9 or V5R9_SP2
`CAAFramework.edu`	The CAA framework that contains the use case module
`CAAUseCase.m`	The use case module, or one of the modules that make up the use case
`CAARunUseCase`	The command which launches the use case, delivered in MyRootDirectory/CAAFramework.edu/CNext/code/command
`HttpPortalServer`	The hostname of the server in the form: server:http_port or server if the port is 80. ex: MyMachine:85
`OrbixPortalServer`	The hostname of the server in the form server:orbix_port or server if the port is 1570. ex: MyMachine:1574

[Top]

In Short

This use case shows how to set up the environments, compile, and launch a CAA V5 use case with Windows and UNIX.

[Top]

History

Version: 2 [July 2005]	Document updated
Version: 1 [Apr 2000]	Document created
