Associating a Dialog Box with a Dialog Agent

3D PLM Enterprise Architecture	User Interface - Commands	Associating a Dialog Box with a Dialog Agent - 2 Using a new notification to value a dialog agent
Use Case

Abstract

This article shows how to use a dialog box to value a dialog agent. The agent is valuated by a notification sent by the Dialog box. For a valuation by an existing notification, those of the CATDlgDialog class, refer to the first part of the article [1]. In this article on the other hand, the notification has been specially created to distinguish the end-user interactions in the Dialog box.

What You Will Learn With This Use Case
The CAADegHistogramChartWindowCmd Use Case
Step-by-Step
In Short
References

What You Will Learn With This Use Case

This use case is intended to show how to use a dialog box associated with a dialog agent in a state dialog command. The dialog box values the dialog agent when the end user clicks a specific editor and any other objects of the dialog box.

[Top]

The CAADegHistogramChartWindowCmd Use Case

CAADegHistogramChartWindowCmd is a use case of the CAADialogEngine.edu framework that illustrates Dialog and DialogEngine framework capabilities.

[Top]

What Does CAADegHistogramChartWindowCmdDo

The CAADegHistogramChartWindowCmd is a dialog state command enabling you to open a new window [2] to display an histogram chart view of the document.

The title of this command is "Histogram Chart Window". You find it in the "Chart Window" toolbar of the CAAGeometry document

When you launch the "Histogram Chart Window" command, the "Customization of the Histogram Chart Window" dialog box appears. Before clicking OK, the end user can change some default parameters for the new window.

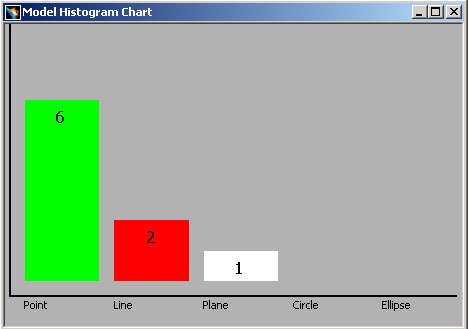

When the end user clicks on the OK button, a new window is created. It contains a 2D viewer with the count of point, line, plane, circle and ellipse in the document.

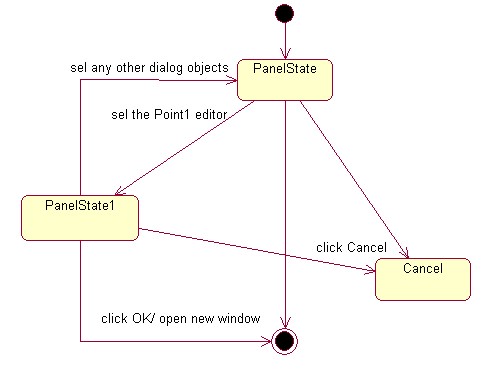

The CAADegHistogramChartWindowCmd command is a state dialog command according to the following UML state chart diagram [3].

[Top]

How to Launch CAADegHistogramChartWindowCmd

See the section entitled "How to Launch the CAAGeometry Use Case" in the "The CAAGeometry Sample" use case for a detailed description of how this use case should be launched [4].

Then, in the window where you run the mkrun command, do not type the module name on the command line, but type CNEXT instead. When the application is ready, do the following:

Select File->New
In the New box, select CAAGeometry and click OK
Select Window->Histogram Chart Window
Click in the Point 1 editor
Click in the Point 2 editor

[Top]

Where to Find the CAADegHistogramChartWindowCmd Code

The "Histogram Chart Window" command is made of a three classes:

CAADegHistogramChartWindowCmd, the state command
CAADegHstChartWndDlg, the Dialog box
CAADegEditor1SelectedNotification, The notification sent when the Point.1 editor gets the focus
CAADegEditor1DeselectedNotification, The notification sent when the Point.1 editor loses the focus

located in the CAADegGeoCommands.m module of the CAADialogEngine.edu framework:

Windows	`InstallRootDirectory\CAADialogEngine.edu\CAADegGeoCommands.m\`
Unix	`InstallRootDirectory/CAADialogEngine.edu/CAADegGeoCommands.m/`

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Step-by-Step

There are three logical steps in CAADegHistogramChartWindowCmd use case:

Creating the Histogram Chart Window Command
Creating the CAADegEditor1SelectedNotification Notification
Creating the "Customization of the Histogram Chart Window" Dialog Box

[Top]

Creating the Histogram Chart Window Command

This step can be divided in three parts:

Creating the Histogram Chart Window Header File
Implementing the State Chart Diagram
Releasing the Agents and the Dialog Box

Creating the Histogram Chart Window Header File

The CAADegHistogramChartWindowCmd state command class derives from CATStateCommand

...
class CAADegHistogramChartWindowCmd : public CATStateCommand
{
    ...
  private :

    CAADegHstChartWndDlg   * _pHstChartWndDlg ;

    CATDialogAgent         * _daEditor1Selected ;
};

This header file includes:

_pHstChartWndDlg is the pointer on the "Customization of the Histogram Chart Window" Dialog Box.
_daEditor1Selected is the dialog agent to associate with the dialog box. This is a CATDialogAgent class instance.

Implementing the State Chart Diagram

It is done in the command BuildGraph method [5].

void CAADegHistogramChartWindowCmd::BuildGraph()
{
   a/ Creating the Dialog Box
   b/ Creating the Dialog Agent
   c/ Creating the State
   d/ Creating the Transition
}

a/ Creating the Dialog Box

  CATApplicationFrame * pFrame = NULL ;
  CATDialog * pParent = NULL ;
  pFrame = CATApplicationFrame::GetFrame() ;
  if ( NULL != pFrame )
  {
       pParent = pFrame->GetMainWindow() ;
  }
  ...
  _pHstChartWndDlg = new CAADegHstChartWndDlg(pParent);
  _pHstChartWndDlg->Build();

The dialog box is instantiated and built. It is an instance of the CAADegHstChartWndDlg class that derives from the CATDlgDialog class and that simply includes some dialog objects such as two CATDlgEditor class instances and two push buttons OK and Cancel. Dialog boxes should always be instantiated without controls (or other dialog objects). Instantiating these controls in a Build method called after the constructor has returned make sure that the control resources will be correctly allocated.

The parent of this dialog box is an invisible dialog object which contains all the windows of the same document. This object is returned by the GetMainWindow method on the application frame. Refer to the article entitled "Understanding the Application Frame Layout" [6] for complete details about this object.

The dialog agent is created as following:

...
     _daEditor1Selected = new CATDialogAgent("Editor1SelectedId");
     _daEditor1Selected->SetBehavior(CATDlgEngRepeat);
     _daEditor1Selected->AcceptOnNotify(_pHstChartWndDlg,"
                                 CAADegEditor1SelectedNotification");
...

The character string Editor1SelectedId defined as the argument of the CATDialogAgent constructor is the dialog agent identifier. This identifier can be used to assign undo/redo prompts replacing the Undo and Redo items in the Edit menu.

The dialog agent behavior is set to CATDlgEngRepeat to enable the dialog agent to be valued more than once without being reiniatilized and nevertheless remain usable to trigger a transition using the IsLastModifiedAgentCondition method.

The AcceptOnNotify method enables the dialog agent to be valued whenever the dialog box sends a CAADegEditor1SelectedNotification notification.

The PanelState and the PanelState1 (not described here) states are CATPanelState instances.

...
     CATPanelState * stPanelState = new CATPanelState (this, "stPanelStateId",
                                                               _pHstChartWndDlg);
     SetInitialState(stPanelState);
     stPanelState->AddDialogAgent(_daEditor1Selected);
...

The state is also a CATCommand instance and must be assigned a parent in the command tree structure. This parent is set as this in the first constructor argument, that is, as the state dialog command itself. A pointer to the dialog box is passed as the third argument to associate the dialog box with the state. Since the state is explicitly constructed, it must be added as a the command initial state using SetInitialState. For the next states ( such as PanelState1 ) the method is AddDialogState.

Caution: A panel state pointer must be released when it becomes useless (In general at the end of the BuildGraph method) [7].

Only the transition which used the _daEditor1Selected agent is explained. Refer to the C++ code for details.

     CATDialogTransition *pTransition1 = AddTransition
     (
        stPanelState,
        stPanelState1,
        IsLastModifiedAgentCondition(_daEditor1Selected),
        Action( (ActionMethod) & CAADegHistogramChartWindowCmd::Editor1Selected)
     ) ;
     ...

The AddTransition method creates a transition and adds it to the transitions managed by the dialog command. Pointers to the transition's source and target states are the first and second arguments respectively. This transition goes from the PanelState state to the PanelState1 state (not explained). The transition trigger is defined in the guard condition as the condition to be checked using the IsLastModifiedAgentCondition method applied to the dialog agent. When the dialog agent prevalue is modified, the transition fire. In this case, the Editor1Selected action method is executed. (method without interest for the use case, so not explained)

Releasing the Agents and the Dialog Box

A pointer to the dialog agent was created in the command BuildGraph method as a data member to be accessed and used in different methods. It should be released when it becomes useless. This can be done in the command destructor, as shown here. This could also be done in the Cancel method called just before the destructor. In the same way, the dialog box should be destructed by using the RequestDelayedDestruction method.

...
CAADegHistogramChartWindowCmd::~CAADegHistogramChartWindowCmd()
{
  if ( NULL != _pHstChartWndDlg )
  {
     _pHstChartWndDlg->RequestDelayedDestruction() ;
     _pHstChartWndDlg = NULL ;
  }

  if ( NULL != _daEditor1Selected )
  {
     _daEditor1Selected->RequestDelayedDestruction();
     _daEditor1Selected = NULL ;
  }
  ...
}
...

[Top]

Creating the CAADegEditor1SelectedNotification Notification

This step can be divided in two parts:

Creating the Notification Header file

The CAADegEditor1SelectedNotification class derives from the CATNotification class.

#include "CATNotification.h"
class CAADegEditor1SelectedNotification : public CATNotification
{
  CATDeclareClass;

  public:
    CAADegEditor1SelectedNotification();
    virtual ~CAADegEditor1SelectedNotification();

  private:
    CAADegEditor1SelectedNotification(const CAADegEditor1SelectedNotification
                                              &iObjectToCopy);
};

The CATDeclareClass macro declares that the CAADegEditor1SelectedNotification class belongs to a component.

Creating the Notification source file

#include "CAADegEditor1SelectedNotification.h"

CATImplementClass(CAADegEditor1SelectedNotification,Implementation,
                          CATNotification,CATNull);

CAADegEditor1SelectedNotification::CAADegEditor1SelectedNotification()
                        : CATNotification(CATNotificationDeleteOn)
{
}

CAADegEditor1SelectedNotification::~CAADegEditor1SelectedNotification()
{
}

The CATImplementClass macro declares that the CAADegEditor1SelectedNotification class is a implementation class, thanks to the Implementation keyword, and that it extends the component whose main class is CATNotification. The forth parameter must always be set to CATNull.
The CATNotification base class constructor is called with the CATNotificationDeleteOn parameter to state that we want this notification to be automatically deleted at the end of the next transaction, that is, as soon as the dialog between sending and receiving commands is completed.
The class destructor is empty.

[Top]

Creating the "Customization of the Histogram Chart Window" Dialog Box

This step can be divided in three parts:

Creating the Dialog box Header File
Creating the Build method
Creating the Callback method

Creating the Dialog box Header File

...
class CAADegHstChartWndDlg : public CATDlgDialog
{
  ...
  public :
    CAADegHstChartWndDlg(CATDialog *iParent);
    virtual ~CAADegHstChartWndDlg();

    void Build();
  private :

    ...
    void Editor1Selected (CATCommand        * iPublisher,
		          CATNotification      * iNotification,
		          CATCommandClientData   iUsefulData);
    ...
};

As usual the Dialog box has a Build method to construct all the dialog objects and arrange them. The Editor1Selected method is a callback method called when the end user clicks in the first editor. This editor is not a data member once it is not used in the different methods of the class.

Creating the Build method

As usual the Build method constructs the dialog objects inside the dialog box. pEditor1 is a CATDlgEditor class instance. The Editor1Selected callback method is declared to be executed when the editor will send a GetEditFocusInNotification notification.

...
void CAADegHstChartWndDlg::Build()
{
  ...
  CATDlgEditor * pEditor1 = new CATDlgEditor(pFrameMaxHeight,"Editor1Id" );
  ...
  AddAnalyseNotificationCB(pEditor1, pEditor1->GetEditFocusInNotification(),
                (CATCommandMethod)&CAADegHstChartWndDlg::Editor1Selected,
                            NULL);
  ...
}

Creating the Callback method

The Dialog box must send a CAADegEditor1SelectedNotification notification. The Send/Receive mechanism is used [8].

...
void CAADegHstChartWndDlg::Editor1Selected    (CATCommand           * iPublisher ,
                                    CATNotification      * iNotification,
                                    CATCommandClientData   iUsefulData)
{
   CAADegEditor1SelectedNotification * pEdt1Notification = NULL ;
   pEdt1Notification = new CAADegEditor1SelectedNotification();
   SendNotification(GetFather(),pEdt1Notification);
   pEdt1Notification = NULL ;
}
...

The notification, pEdt1Notification, is sent by the SendNotification method to the parent's command. Once the current command, those seen by the focus manager, is CAADegHistogramChartWindowCmd, it will be awaken and its agents concerned by this notification will be valuated [9].

Once the CAADegEditor1SelectedNotification instance is created with the CATNotificationDeleteOn state, see the Creating the CAADegEditor1SelectedNotification Notification section, you do not have to release it.

[Top]

In Short

This use case shows how:

To create a notification for the Send/Receive protocol,
To valuate a dialog agent by this notification.

[Top]

References

[1]	Associating a Dialog Box with a Dialog Agent - 1
[2]	Creating a Document's Window -1
[3]	Describing State Dialog Commands Using UML
[4]	The CAAGeometry Sample
[5]	Implementing the Command Statechart Diagram
[6]	Understanding the Application Frame Layout
[7]	Associating a Dialog Box with a State
[8]	The Send/Receive Communication Protocol
[9]	The CAA Command Model
[Top]

History

Version: 1 [Fev 2003]	Document created
