This task
shows how to create a clamp on a geometry. Clamps are restraints applied to surface or curve
geometries, for which all points are to be blocked in the subsequent
analysis.

means that there is no translation degree of freedom left in that
direction.
Clamp objects belong to Restraints sets.
|
 |
Clamps can be applied to the following types of supports:
Geometrical Feature |
Mechanical Feature |
Analysis Feature |
Spatial Groups |
Geometrical Groups |
Groups by Neighborhood |
Groups by Boundary |
Others |
Point/Vertex
Edge
Face |
 |
 |
 |
 |
 |
Virtual Part |
To know more, refer to Authorized
Supports. |
 |
Open the
sample02.CATAnalysis document from the samples directory.
|
 |
-
Click Clamp
in the Restraints toolbar.
The Clamp dialog box appears.

|
-
If needed, modify the name of the restraint in the
Name box.
-
Select one or several supports (multi-selection of
supports is available).

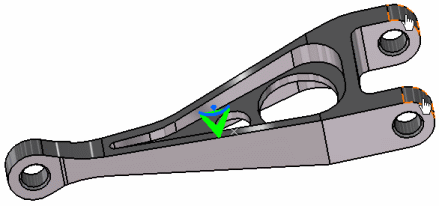

In this particular example, select in sequence the two following
faces:

Any selectable geometry is highlighted when you pass the cursor over
it.
You can select several supports in sequence, to apply
the clamp to all supports simultaneously.

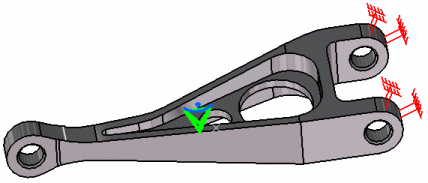

Symbols representing a fixed translation in all directions of the
selected geometry are displayed. |
-
If needed, click Select Mesh Part
.
this button is available only if a geometrical
support is selected.
To know more, refer to Selecting Mesh Parts. |
-
Click OK.

A Clamp object appears in the
specification
tree under the active Restraints set.
 |
|
 |
- You can either select the support and then set the clamp
specifications, or set the clamp specifications and then select the
support.
- If several Analysis Cases have been defined in the Finite Element
Model, you must activate a restraints set in the specification tree
before creating a clamp.
- Restraints are required for Stress Analysis computations. They are
optional for modal analysis computations (if not created, the program
will compute vibration modes for the free, unrestrained part).
- Clamp objects can be edited by a double click on the corresponding
object or icon in the specification tree.
- Make sure you fixed all the global degrees of freedom of
your assembly, otherwise a global singularity will be detected at the time
of the Static Computation (such a model is unsolvable). To allow you to
easily correct the model (Static Analysis Cases only), the singular
displacement of the assembly will be simulated and visualized after
computation.
|
 |
The ELFINI Structural Analysis product offers the
following additional functionalities:
|
|
