Catalog Modeler

What You Will Learn With This Use Case

One interest of a catalog is to instantiate its components. A component can be

• a document (Part, Product,..)
• a feature
• a user feature, a power copy
• ...

If the use case CAAMmrCatalogIntegration [1] explains how to integrate a new type of component in a catalog document, this use case details how to instantiate it.

The instantiation must be done in using the RunInstantiationCmd method of the CATICatalogDescription interface. In most cases this method launches an interactive command to create the new component. It means that an instantiation can only be done during an interactive session. For some component, a "direct" instantiation can be done, in using its own mechanism of instantiation.

Before getting to the use case itself, it is important to already be familiar with the basic notions of Catalog. See the referenced article [2] for a detailed overview.

[Top]

The CAAMmrCatalogInstantiation Use Case

CAAMmrCatalogInstantiation is a use case of the CAAMechanicalModeler.edu framework that illustrates ComponentsCatalogsInterfaces framework capabilities.

[Top]

What Does CAAMmrCatalogInstantiation Do

This use case is an extract of the CAAMmrCatalogBrowser use case [3]. This use case creates a command which launches a dialog box [Fig.1] to demonstrate the usage of the Catalog Browser. On this dialog box the last frame "Current Selection" enables to display the selected description, and when it is an instantiable component, the "Launch" button is available. The aim of this use case is to explain the contents of the callback method called when the end user clicks on the Launch button.

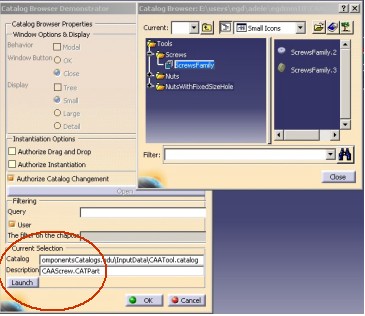

Fig.1 The Catalog Browser Demonstrator

[Top]

How to Launch CAAMmrCatalogInstantiation

To launch CAAMmrCatalogInstantiation , you will need to

• Set up the build time environment
• Compile the following modules of the CAAMechanicalModeler.edu framework with their prerequisites
• CAAMechanicalModelerEduUUID.m
• CAAMmrCatalogCombCrv.m
• CAAMmrCatalogProductAddin.m
• CAAMmrCatalogUI.m
• CAAMmrCombinedCurve.m
• CAAMmrCombinedCurveUI.m
• CAAMmrCreateCombCrvCatalog.m
• Set up the run time environment
• Edit the CAAMechanicalModeler.edu.dico and decomment these two lines:

CAAMmrCatalogPrdAddin CATIWorkbenchAddin libCAAMmrCatalogProductAddin CAAMmrCatalogPrdAddin CATIPrsConfigurationAddin libCAAMmrCatalogProductAddin

• Launch CATIA
•  When the the application is ready:
  • On the Start menu click Product Structure
  • Launch the Catalog Browser Demonstrator ... command
  • In the Catalog Browser Demonstrator dialog box
    • click Authorize Catalog Selection  in the Catalog Browser Properties frame
    • Push Open
    • Select
    • Select the CAACombinedCurve (*) catalog and Click Open
    • Double click on Family and click CAACombinedCrv
    • In the Description field, CombineCrv is displayed
    • Push Launch button

(*) The file is located in the directory CAAMechanicalModeler.edu/InputData

• Unix : InstallRootDirectory/CAAMechanicalModeler.edu/InputData
• Windows : InstallRootDirectory\CAAMechanicalModeler.edu\InputData

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Where to Find the CAAMmrCatalogInstantiation Code

The CAAMmrCatalogInstantiation use case is an extract of the CAAMmrBrowserCmdPanel class located in the CAAMmrCatalogUI.m module of the CAAMechanicalModeler.edu framework:

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Step-by-Step

LaunchInstantiation is a callback method on the CAAMmrBrowserCmdPanel class [1]. This class contains _pICatalogBrowser as data member. It is a CATICatalogBrowser interface pointer on the current opened Catalog browser.

void CAAMmrBrowserCmdPanel::LaunchInstantiation(CATCommand* iFrom, CATNotification* iNotif, CATCommandClientData iData)
{
    if ( NULL != _pICatalogBrowser )
    {
       CATICatalogDescription * piCatalogDesc = NULL ;
       HRESULT rc = _pICatalogBrowser->GetSelectedDescription (piCatalogDesc);
       if (SUCCEEDED(rc))
       {
             int RepeatMode = 0 ;
             int InstantiateMode = 1 ;

             rc = piCatalogDesc->RunInstantiationCmd(
                                              _pICatalogBrowser,
                                              InstantiateMode,
                                              RepeatMode);

             ...
}

On this CATICatalogBrowser interface pointer the selected description is retrieved thanks to  the GetSelectedDescription method. piCatalogDesc is a CATICatalogDescription interface pointer on the selected description in the Catalog browser.

Once we have this CATICatalogDescription  interface pointer, call the RunInstantiationCmd method to launch the instantiation.

In this use case, the arguments of this global function are the following:

• piCatalogDesc, the description which contains the object to instantiate.
• _pICatalogBrowser, the Catalog browser itself,
• InstantiateMode = 1 , it means that is an instantiation with link (recommended) (otherwise it is 0, for a creation)
• RepeatMode = 0, it means that the interactive command will be not re-launched at the end (recommended). (otherwise it is 1)

About the InstantiateMode value: In most case the instantiation mode is 0. For a Part it is possible to choose between:

• InstantiateMode =0 : The Part in the destination document is created by new From
• InstantiateMode =1 : The Part in the destination document is linked towards the Part component

Advice: If you are in an interactive session, but that you retrieve a description outside a Catalog Browser selection, in the  CATCciRunInstantiation global function set NULL for the  CATICatalogBrowser interface pointer.

The pseudo-code for the RunInstantiationCmd method is the following:

NotDone = 1;
HESULT rc = Current Workbench -> QI (CATICatalogInstantiation,pICatalogInstantiationOnCurrentWbench)

if ( OK)
{
   pICatalogInstantiationOnCurrentWbench->RunInstantiationCmd(...,NotDone)
}
if (NotDone)
{
   HESULT rc = Current Workshop -> QI (CATICatalogInstantiation,pICatalogInstantiationOnCurrentWshop)

   if ( OK)
      pICatalogInstantiationOnCurrentWshop->RunInstantiationCmd(...,NotDone)
}
if (NotDone)
{
   HESULT rc = DescriptionComponent -> QI (CATICatalogInstantiation,pICatalogInstantiationOnComponent)

   if ( OK)
      pICatalogInstantiationOnComponent->RunInstantiationCmd(...,NotDone)
}

Before to call the RunInstantiationCmd method of the CATICatalogInstantiation on the component contained in the description, the CATICatalogDescription::RunInstantiationCmd method calls this method on the current workbench and the current workshop if they implement this interface.

[Top]

In Short

This use case illustrates how to instantiate a component catalog in using the RunInstantiationCmd method of the CATICatalogDescription interface.
