Click the arrow within the Revolute Joint
icon.
-
Undock the Kinematics Joints toolbar:
-
Select Roll Curve Joint
.

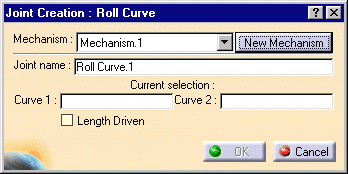

The Joint Creation: Roll Curve dialog box is displayed.
-
Click New mechanism. The Mechanism
Creation dialog box is displayed:

|
In our example, keep the default name Mechanism.1. |
-
Select Curve 1, in our example, select the inner ring in
the geometry area. The current selection field is automatically updated
with your selection.
-
Select Curve 2, for instance select the roller as shown
below:
-

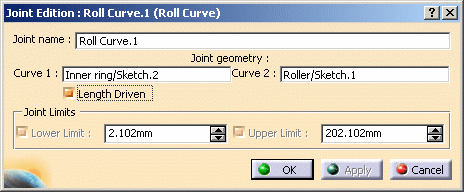

Click Ok to end the roll curve joint creation.

|
The specification tree is updated.

|
-
Now, create Roll Curve.2. For this click Roll Curve
Joint
again.
The Joint Creation: Roll Curve dialog box is displayed.
-

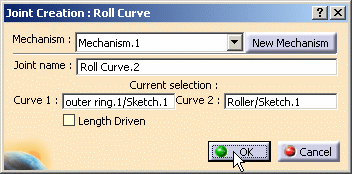

Select the outer ring as curve 1 and the roller as curve
2 in the geometry area
-
Click Ok to end the Roll Curve. 2 joint
creation.

|
The specification tree is updated

|
-
Now, create Revolute. 3. For this, click the
Revolute Joint icon
.

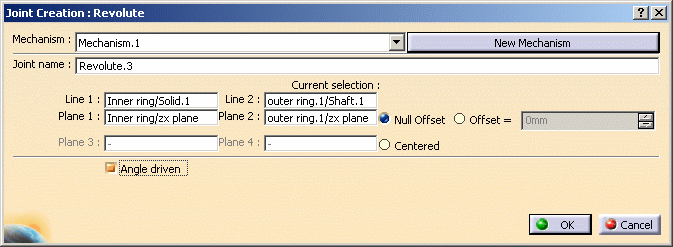

The Joint Creation: Revolute dialog box is displayed.
-
Select the lines and the planes:
-
Assign the command, for this select the Angle driven
check box
 |
In Edition mode only:
you can verify the command orientation defined by a
green arrow in the geometry area and in this example (command
assigned to a revolute), you can change its orientation:
-

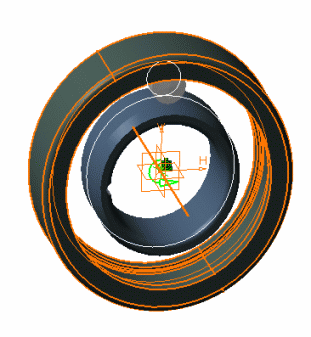

The parts which are not involved in the joint
creation are displayed in low light (to easily locate the joint you
are working on): Picture.1
-
Pass the cursor over the green arrow to launch a
short animation
-
Click the arrow to change the command orientation
if necessary: Picture.2
|
Picture.1
|
Picture.2
|
 |
 |
 |
Now, if you delete the
command and assign it to Joint.1 for instance, all you can do is
check the orientation, you cannot change the command orientation. |

|
 |
|
Pass your cursor over to launch the animation: |
 |

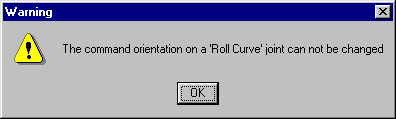

If you try inadvertently to change the command
orientation on a roll curve joint, the following warning message is
displayed
 |
-
Click Ok to end the revolute joint creation.
The specification tree is updated.
-
Click Fixed Part
or select Insert > Fixed Part... from the menu bar. The
New Fixed Part dialog box is displayed.
-
Select the inner ring as fixed part either in the
geometry area or in the specification tree.
The specification tree is updated and the mechanism
can be simulated.
 |
