Grouping Surfaces by Neighborhood

This task shows how to group surfaces by neighborhood, that means grouping surfaces by selecting geometry and entering a tolerance value.

Grouping elements by neighborhood allows you to apply pre-processing specifications to finite elements belonging to mesh parts without geometry support (for example: extrude mesh parts).

Available if one of three following products is installed: Elfini Structural Analysis (EST), FEM Surface (FMS) or FEM Solid (FMD).

Groups created using the Groups toolbar are stored under a Groups set. You can also create groups under a particular mesh part using the Create Group contextual menu in the Generative Structural Analysis workbench. The groups created using the contextual menu are not stored under the Groups set. They are directly linked to the specified mesh part. For more details about this contextual menu, refer to Creating Groups under Mesh Parts.

Open the sample49.CATAnalysis document from the samples directory.

• Go to View > Render Style > Customize View and make sure the Shading, Outlines and Materials options are active in the Custom View Modes dialog box.

1. Click Surface Group by Neighborhood in the Groups toolbar.

   The Surface Group by Neighborhood dialog box appears. Name: lets you specify the name of the group. Supports: lets you select the surfaces you want to group. You can select only surfaces or 2D features as surface group by neighborhood Support. This group enables to capture proximity node elements, face elements and all the 2D elements. Tolerance: lets you define the tolerance value.

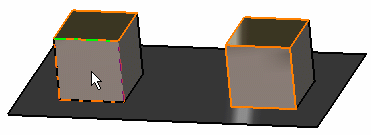

2. Select in sequence the surfaces you want to group.

   The Surface Group by Neighborhood dialog box is updated:

3. Enter the Tolerance value.

   In this particular example, enter 8mm as Tolerance value.

4. Click OK in the Surface Group by Neighborhood dialog box.

   A Surface Group.1 object appears in the specification tree but it is not updated.

5. Update the surface group by neighborhood.

   You can now visualize Deformation, Von Mises Stresses, Displacements, Principal Stresses and Precisions images, either for all the geometry or only for the selected surfaces. The scenario is the same for the five images. In this particular case, you will visualize the Von Mises Stresses image:

6. Activate the Von Mises Stress (nodal values).1 image.

7. Double-click the Von Mises Stress (nodal value) object in the specification tree.

   The Image Edition dialog box appears.

8. Double-click the Surface Group by Neighborhood.1 object in the Selections tab and click OK in the Image Edition dialog box.

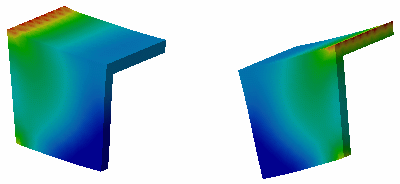

   You will see the result only around the selected surfaces. For more details about Images, refer to Results Visualization (Image Creation, Generate Images and Editing Images).

You can manually edit or delete a group.
To do this, right-click the group object in the specification tree and select the desired contextual menu.
