Generating a Replay

You are now ready to create a film. This is done by generating a replay.
You defined a Camera and you created a simulation object in the task Recording a Simulation.

  1. Select the Simulation object in the specification tree.

  2. Select Tools->Simulation-> Generate Replay .

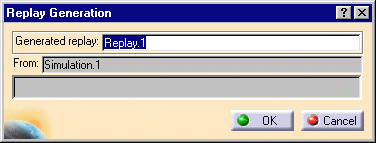

    The Generate Replay dialog box appears.



  1. Enter a meaningful name for your film if desired.

  2. Click OK to generate the replay.
    You can see the results in the geometry area as the simulation is being compiled.
