Select the required object (in this case, the
DEMO_CGE_CHAINSAW_BODY_SILENCER part) in the geometry area as
shown below:
-
Click Shuttle .

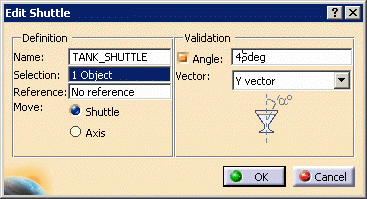

The Edit Shuttle dialog box and the Preview
window appear: |
The Preview window has two tabs:
- The Tree tab shows the names of items
selected
- The 3D tab shows a graphic representation
of the parts.
|
The Manipulation toolbar is also displayed: |
|
The shuttle graphic representation is displayed. It corresponds
to the to-be-created shuttle axis. |
|
You can specify a maximum rotation angle around the
absolute axis for the shuttle. The maximum rotation angle means the
shuttle motion is defined and validated with respect to the angle
value specified.
This option can be very useful to avoid liquids to
spill out from specific assemblies such as a gas tank. |
|
-
Select the Angle check box.
The value fields for Angle and Vector
become available. |
-
In the Angle box, enter 45deg; in the
Vector box, select the Y vector.
The Z vector is the horizontal axis. In our example, we select
the Y vector, which is the vertical axis, to avoid spilling liquids. |

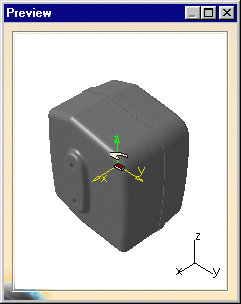

The Preview window shows selected products.
Within the Preview window, you can use the mouse buttons
to rotate, pan, or zoom. However, the comparable commands
within the View toolbar are disabled. |
|
-
(Optional) Select products in the
specification tree or in the geometry area to remove them from the
shuttle.
-
(Optional) In the Name field,
enter a meaningful name for the shuttle you want to create.
-
Click OK to end shuttle creation.
The shuttle is identified in the specification tree
and in the geometry area. |
|
|
|
