Macro Parameters

To edit a macro:

  • in graphic mode, double-click a macro path or a geometry element to modify it. Double-click a parameter label to display the edition dialog box to modify the value of this parameter only (since those dialog boxes are standard edition boxes, they are not shown below).

  • In numeric mode, type the required value in the field. Use the interrogation mark to launch the graphic help.
  • The current macro is displayed in violet.

  • The parameters dialog box can also be launched by double-clicking a portion of the path in the viewer.

  • You can also double-click a label in the viewer. This will start the Edit dialog box of the corresponding parameter.

  • The graph displayed in the viewer of the dialog box is a generic representation of a macro mode.
    It is not the true representation of the macro you are using or defining.
    To check the result of you settings, click Tool Path Replay.

Definition

Along tool axis
The tool moves along the tool axis for a given Axial motion Distance,

In graphic mode, double-click the line to edit the Axial motion,

In numeric mode, type the Axial motion Distance value.

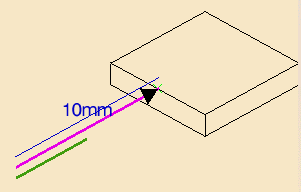

Along a vector
The tool moves along a vector (line motion) for a given Distance,

In graphic mode:

  • double-click the violet line to edit the Distance along the line motion,

  • double-click the green line to edit the direction.

In numeric mode:

  • type the Distance value.

  • click Direction to edit the vector direction.

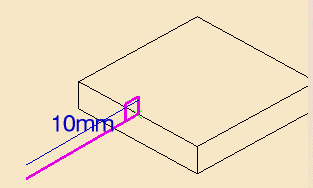

Normal
The tool moves in a direction perpendicular to the surface being machined (Perpendicular motion), for a given Distance,

In graphic mode, double-click the violet line to edit the distance in the Perpendicular motion,

In numeric mode, type the Perpendicular motion Distance.

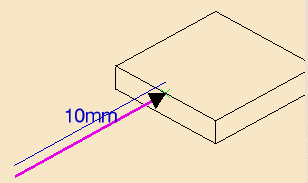

Tangent to Movement
The tool motion is tangent at its end to the rest of the tool path and is of a given Distance

with a vertical angle

and a horizontal angle.

In graphic mode, double-click the violet line to edit the Distance and the Vertical angle and Horizontal angle.

In numeric mode, type the Distance and the Vertical angle and Horizontal angle.

None
No approach nor retract macro is applied.
Note that when this macro is selected on Approach or Retract, no Link to Safety Plane is added, as shown below.

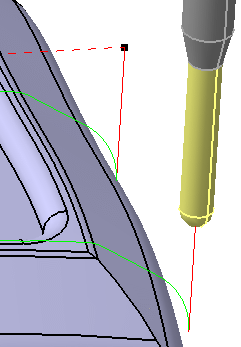

If you require a Link to Safety Plane, select Along tool axis with an axial motion Distance value equal to 0 mm. This is what you will get:

(This is not available with an isoparametric machining operation.)

Back
The tool doubles back like an arrow above the cutting tool path (Back motion).

You can define this type with a Distance
and a Height.

In graphic mode, double-click the violet line to edit the Distance and the Height

In numeric mode, type the Distance and the Height

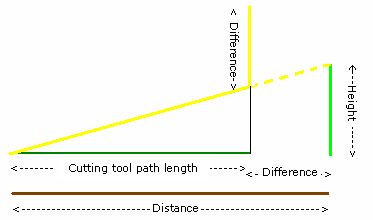

When you type a Distance higher than the cutting tool path to which the macro refers, a tool path Along Tool Axis is added, its length being equal to the difference between Distance and the length of the cutting tool path.

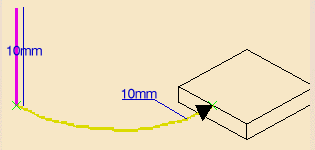

Circular
The tool moves towards/away from the part in an arc (Circular motion).

The parameters that you can set are:

In graphic mode:

  • double-click the arc (yellow line) to edit the Circular motion:

  • double-click the violet line to edit the Axial motion Distance.

In numeric mode, type the Angular sector, the Angular orientation, the Radius and the Axial motion Distance.
Important:
  • If you do not use Part autolimit, the curve will be below the surface of the part.
  • the Circular macro can automatically modify the Angular orientation defined by user to avoid collisions.
  • If collisions cannot be avoided, then the Prolonged Movement Macro replaces the Circular macro.
  • For ZLevel, the Angular sector cannot exceed 180 degrees.

Ramping
The tool follows a slope defined by the ramping angle.
The parameters to define are the Axial motion Distance and the Ramping angle.

In graphic mode:

  • double-click the violet line to edit the Axial motion Distance:

  • double-click the yellow line to define the Ramping angle:

In numeric mode, type the Ramping angle and the Axial motion Distance.

Ramping up to plane
The tool follows a slope defined by the ramping angle up to a plane.
The parameters to define are the Angle and the plane.

In graphic mode, double-click the angle to define it:

and click the plane to select one.
In numeric mode, enter the angle:

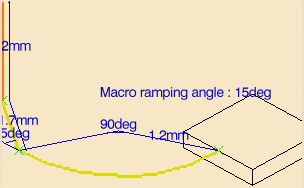

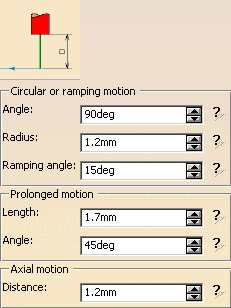

Circular or ramping
The tool uses either circular or ramping mode depending on whichever is best adapted to the part being machined.

The Circular or ramping motion is defined by

  • Angle

  • Radius

  • Ramping angle

The Prolonged motion is defined by

  • Length
  • Angle

In graphic mode:

  • double-click the orange line to edit the Axial motion Distance
  • Double-click the inclined yellow line to edit the Prolonged motion:
  • Double-click the arc to edit the Circular or ramping motion:

In numeric mode, type:

  • the Angle, Radius and Ramping angle for the Circular or ramping motion,
  • the Length and Angle for the Prolonged motion and
  • the Axial motion Distance.

    For ZLevel, the Angular sector cannot exceed 180 degrees.

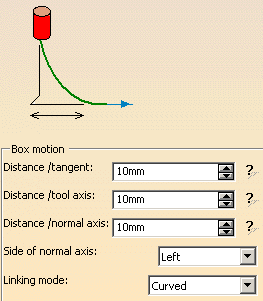

Box
The tool moves across the diagonal of an imaginary box (Box motion), either in a straight line or in a curve (Linking mode).

The Box motion is defined by:

The Axial motion Distance is the distance that the tool will move in once it has crossed the box.

  • Distance along the tangent
  • Distance along the tool axis
  • Distance along the normal axis

In graphic mode:

  • double-click the violet line to edit the Axial motion Distance:
  • double-click the arc (yellow line) to edit the Box motion:

In numeric mode

  • type the values of the Distance/tangent, Distance/tool axis, Distance/normal axis, and of the Axial motion Distance.
  • choose from the list which side of the normal axis will determine the direction of the diagonal of the box.
  • select a Linking mode (Curved or Straight).

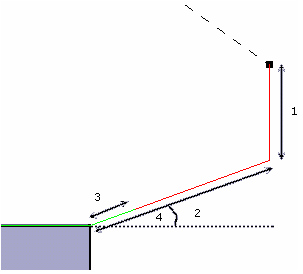

Prolonged Movement
The tool moves in a straight line that may slant upwards.

The Prolonged motion is defined by:

  • the Distance,
  • the Vertical angle,
  • the Horizontal angle,

The Axial motion is defined by the Distance.
The advantage of this mode is that collisions are automatically detected. In the event that a possible collision is detected, the angle will be adjusted to avoid collision. If the angle cannot be adjusted (because of the shape of the part, for instance), the length of the prolongation will be automatically adjusted to avoid collision.

 In graphic mode:

  • double-Click the violet line to edit the Axial motion Distance
  • double-click the yellow line to edit the Tangent motion:

  • In numeric mode, type the Distance, the Vertical angle, the Horizontal angle and the Axial motion Distance.

High Speed Milling

The parameters are:

  • Axial motion Distance,
  • Transition radius which is the radius of the arc that goes to the pass
  • Discretization angle which is a value which, when reduced, gives a smoother tool path.

In graphic mode:

  • double-click the violet line to edit the Axial motion Distance:

  • double-click the green arc to edit the High Speed Milling motion

In numeric mode, type the Radius and the Discretization angle defining the High Speed Milling motion, and the Axial motion Distance.

Defined by Approach/Retract, Defined by Approach
The macro used for the Linking Retract, Linking Approach or Between passes Link is that used for the Approach or the Retract.

Build by user
Available in graphic mode only.
You can create a machining path by adding several predefined macros.
The current one is colored violet.
If necessary, you can double-click:

  • the line representing the macro to edit its parameter,
  • the associated geometry representation to edit this geometry.

We have listed below:

  • the icons,
  • the name of the macros,
  • the representation of the macros,
  • the corresponding edition dialog box.

Add Tangent motion

Add Horizontal motion

Add Axial motion

Add Circular motion
see also Circular

Surface Machining and Multi-Axis Curve Machining and Flank Contouring:

Multi-Axis Machining (except for Curve Machining and Flank Contouring):

With:

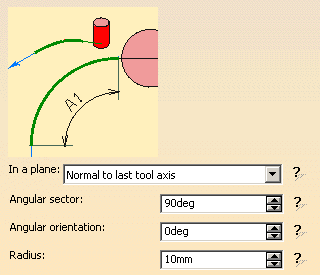

Normal to last tool axis:

Normal to part surface:


Add circular or ramping motion
See also Circular or Ramping

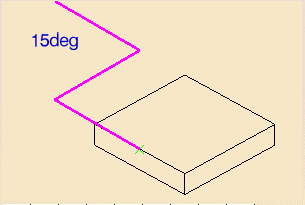

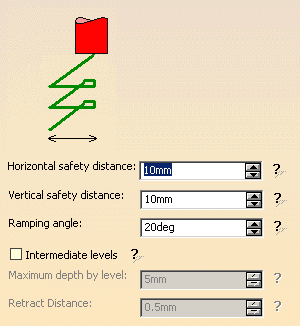

Add ramping motion
Surface Machining:

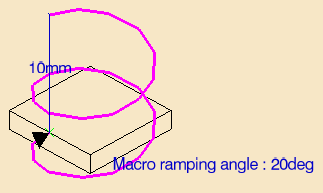

Multi-Axis Machining:

Add Helix motion

Add PP word list

Add motion perpendicular to a plane

Click the plane on the icon, the dialog box disappears.
Select a plane in the graphic area.

Add Axial motion up to a plane

Click the plane on the icon, the dialog box disappears.
Select a plane in the graphic area.

Add distance along a line motion
See also Along a vector



Note that in ZLevel, this macro can be created alone with Add axial motion only.

Add normal motion
See also Normal

Surface machining:

Multi-Axis Machining:

Add back motion
See also Back

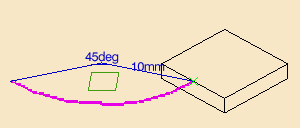

Add circular within a plane motion


Add box motion
See also Box

Add prolonged motion
see also Prolonged movement

Add high speed milling motion
See also High speed milling

Add tool axis motion

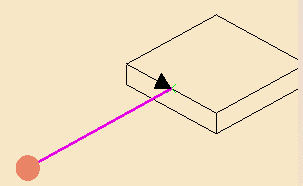

Add motion to a point

Available in ZLevel - build by user mode.
Click the point on the icon, the dialog box disappears.
Select a point in the graphic area.
Note that this macro can be created alone with Add axial motion only.

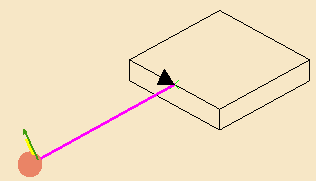

Enable 5-axis simultaneous motion

Not available after a tool axis motion, a ramping motion and a helix motion.
You have to define a direction:

This macro rotates the tool in macro paths and minimizes machine jolts by generating a 5-axis simultaneous motion on the next combined motion.
Combined with a tangent motion:

The tool axis is interpolated between the defined direction and the current macro tool axis, according to the Max discretization angle of the operation.

Keep machining feedrate
Applies the machining feedrate to all the macro paths.

Remove all motions

Delete selection motion

Optimized
This means that if no obstacle is detected between two passes, the tool will not rise to the safety plane (because it is not necessary) and the operation will take less time. In some cases (where areas of the part are higher than the zone you are machining and when you are using a safety plane), the tool will cut into the part. When this happens, choose another clearance mode.
In both modes, you can only edit the Distance parameter by double-clicking the label.

Clearance Along Tool Axis
The tool moves up to the defined safety plane along the tool axis.
If no safety plane is defined, the safety plane is the upper point of the part.

Perpendicular to Safety Plane
The tool moves up to the defined safety plane along an axis perpendicular to the safety plane. If no safety plane is defined, the safety plane is the upper point of the part.

Straight
The tool goes directly to the next path.

Options

Cornerized clearance with radius
Select this option to create a cornerized clearance and enter the value of the corner radius.

Smooth tool axis moves
When selected, if the approach and the retract axes are different, additional points are added on the rapid motion in order to smooth the transition path.
The tool axis is interpolated, according to the Max discretization angle.
