Generating a Replay

This task shows how to generate or compile a replay object of a recorded simulation.
aprereq.gif (1223 bytes) You recorded a simulation. Please refer to Recording a Simulation.

Open the COMPILE_SIMULATION.CATProduct document.

  1. Select Simulation.1 in the specification tree.

  2. Select Tools > Simulation > Generate Replay.

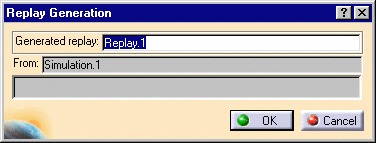

    The Replay Generation dialog box is displayed.

  3. (Optional) Enter a meaningful name for the replay you want to create.

  4. Click OK to confirm your operation.

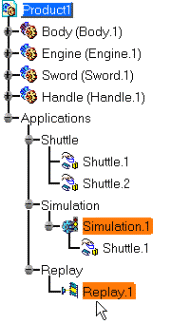

    The Replay object appears in the specification tree
