Retrieving VPM Identification

3D PLM Enterprise Architecture	VPM Navigator	Search Result API API to fill Search Result Window
Use Case

Abstract

This article shows the way to execute a query on several objects and to display the search result window fulfilled with the results using the API to fill Search Result Window and explains how to use it in a command.

What You Will Learn With This Use Case
The Search Result API and test Command Use Case
Step-by-Step
In Short
References

What You Will Learn With This Use Case

This use case is intended to explain how to use the Search Result API to develop a new command to query for multiple objects and to display the search result window fulfilled with the results. Use of this API is demonstrated by means of a Search API Test command. This command is available from the Search workbench in the Seach API Test toolbar.

[Top]

The Search Result API and Test Command Use Case

The Search API Test command is a use case of the CAACATImmENOVIAProvider.edu framework that illustrates Search Result API capabilities.

[Top]

What Does the Search Result API Test Command Do

CAAImmSearchAPITestCmd is a command which uses the Identifier Acquisition Agent to get the VPM Identification information and passes this information to the OpenSearchResultWindow function. This function opens a new search result window and fulfills it with the result of the query.

[Top]

How to Launch the Search Result API Test Command

To launch CAAImmSearchAPITestCmd, you will need to set up the build time environment, then compile CAAImmSearchAPITestCmd along with its prerequisites, set up the run time environment, and then execute the use case [1] in the following way:

Run CNEXT on the command line.
Connect to Enovia using the command on Enovia V5 Toolbar.
Enter Login, Password and Enovia Server information and click OK to login.
Run Search command for a Document Revision or Part Version on Enovia V5 Toolbar.
Click on a Document Revision or a Part Version and run the CAAImmSearchAPITestCmd available in Search API Test toolbar.

[Top]

Where to Find the Search Result API test Command Code

The Search API Test command is made up of a single class named CAAImmSearchAPITestCmd located in the CAAImmSearchAPITestCmd.m module of the CAACATImmENOVIAProvider.edu framework :

Windows	`InstallRootDirectory\CAACATImmENOVIAProvider.edu\CAAImmSearchAPITestCmd.m\`
Unix	`InstallRootDirectory/CAACATImmENOVIAProvider.edu/CAAImmSearchAPITestCmd.m/`

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Step-by-Step

The following code illustrates how to call the SearchResult API:

[Top]

Test Command Structure

The Search API Test command derives from CATStateCommand.

class CAAImmSearchAPITestCmd: public CATStateCommand
{
...
public:
	void BuildGraph();
	void ActionCommand();
    ...

We make the call to the Search Result API in the ActionCommand() of the Test Command.

[Top]

Populating the arguments for Search Result API

The OpenSearchResultWindow is called in command ActionCommand method. The arguments to be passed to the API have to be populated as shown below.

void CAAImmSearchAPITestCmd::ActionCommand()
{
...
CATUnicodeString iType = "DOCDIR/ENOVIA_VPMDocumentRevision";
int iNb = 4;
CATListOfCATUnicodeString iAttrNameList;
CATListOfCATUnicodeString iArrayValueList[4];

iAttrNameList.Append("V_ID");
iAttrNameList.Append("V_version");

iArrayValueList[0].Append("DocumentRevision_ID1");         //Used "DR_RZW_23Apr"
iArrayValueList[0].Append("DocumentRevision_Version1");    //Used "---"

iArrayValueList[1].Append("DocumentRevision_ID2");         //Used "DR_RZW_26Apr"
iArrayValueList[1].Append("DocumentRevision_Version2");    //Used "---"

iArrayValueList[2].Append("DocumentRevision_ID3");         //Used "Part1_RZW_23Apr"
iArrayValueList[2].Append("DocumentRevision_Version3");    //Used "---"

iArrayValueList[3].Append("DocumentRevision_ID4");         //Used "Part1_RZW_24Apr"
iArrayValueList[3].Append("DocumentRevision_Version4");    //Used "---"

HRESULT RC = CATImmCAAServices::OpenSearchResultWindow(iType,iAttrNameList,iNb,iArrayValueList);

  ...

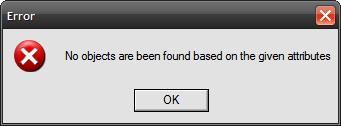

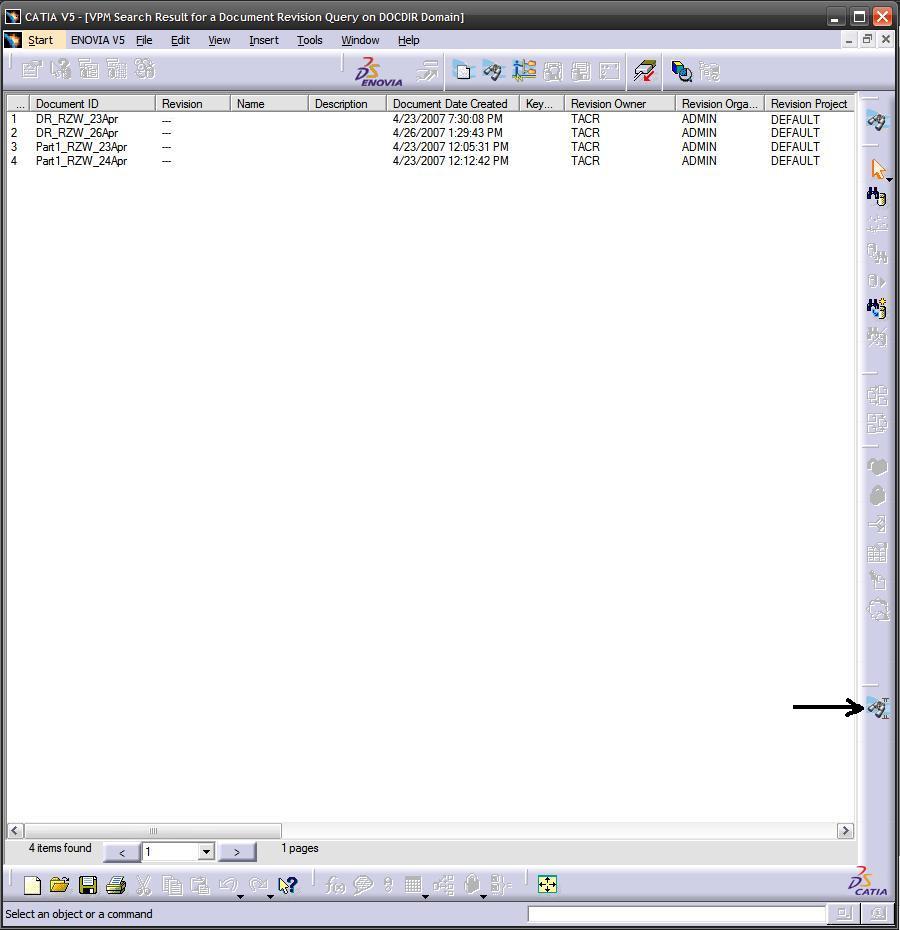

The above code snippet will search for four entities of type DOCDIR/ENOVIA_VPMDocumentRevision based on the attributes V_ID and V_Version and display the results in a new result window. Different types and attributes can be used to create a query.
