Creating a Loose Part

	This task explains how to create a loose part.
	When creating loose parts, do not build a graphic. No geometry is required on the loose part itself. You can still generate reports and check soft interference for the modeled loose instances without modeling the geometry on the reference loose part.

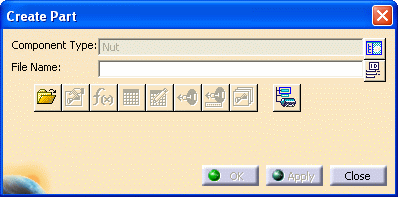

	1.	To build a loose part, click the `Build Part` button and the `Create Part` dialog box displays. Click the `Display Class Browser` button . Select `Loose Part` from the list on the `Class Browser`, and select the type of loose part. The `Create Part` dialog box redisplays, and the type of loose part displays in the `Component Type` field. Enter a name in the `File Name` field and click `Apply`.The loose part you created displays in the specifications tree.

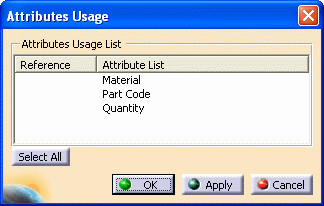

	2.	Click the `Define Properties` button and the `Properties` dialog box displays. On the `Multi-Discipline` tab, click the `Usage` button and the `Attributes Usage` dialog box displays. Select reference attributes from the `Attribute List`. Selecting an attribute displays `X` in the `Reference` column. Click `OK` to close the `Attributes Usage` dialog box. Back on the the `Multi-Discipline` tab, assign values to the reference attributes. Click `OK` to close the `Properties` dialog box. Click `Close` or `OK` to close the `Create Part` dialog box.
		Do not create connectors. The `Create Part` command automatically creates one logical connector that will be used when a loose part is associated with other parts. See Adding and Managing Loose Parts for more information.
	3.	After building the part, save it. Select the part in the specifications tree, and click `File - Save As` from the menu bar. Select a location and click `Save`.
	4.	After you create all the necessary loose parts, add these parts to the appropriate application catalog. For example, you can add loose parts to the Piping catalog, using the `Create/Modify Catalog` command.
