Groove Finish Turning Operations

The information in this section will help you create and edit Groove Finish Turning operations in your manufacturing program.

The Groove Finish Turning operation allows you to finish a groove by means of downward profile following. You can specify:

• the type of machining according to the orientation of the groove profile to be machined
• relimitation of the profile by start and end elements
• various approach and retract path types
• linear and circular lead-in and lift-off options with specific feedrates
• various corner processing options with specific feedrates
• local feedrates for individual elements of the machined profile
• tool output point change
• cutter compensation.

The following topics are dealt with in the paragraphs below:

• Tooling
• Geometry
• Machining Strategy Parameters
• Feeds and Speeds
• Tool Compensation
• Macros.

Tooling for Groove Finish Turning

The following tooling may be used:

• Internal, External and Frontal Groove insert-holders with groove and trigon inserts.
  Refer to Trigon Insert Used on a Groove Insert-holder for more information about this tooling configuration.
• External and Internal insert-holders with round inserts.

Note that the following attributes may influence machining (they are located on the Insert-holder's Technology tab):

• Gouging angle
• Trailing angle
• Leading angle
• Max Recessing Depth
• Max Cutting Depth
• Max Boring Depth.

These attributes take tooling accessibility into account and may reduce the machined area.
However, you can use the Insert-Holder Constraints option on the operation editor to either ignore or apply these attributes. You can replay the operation to verify the influence of these attributes on the generated tool path.

Geometry for Groove Finish Turning

The Part profile (that is, the groove finish profile) is required. It can be specified as follows:

• select edges either directly or after selecting the By Curve contextual command. In this case the Edge Selection toolbar appears to help you specify the guiding contour.
• select the Sectioning contextual command. Please refer to Sectioning for details of how to use this capability.
  Please note that the sectioning selection method is not associative.

Start Limit: None / In / On / Out
This option allows you to specify a point, line, curve or face as the start element of the groove finish profile. The position of the start of machining is also defined with respect to this element. If a face is specified, the start element is the intersection of the face and the working plane. If needed, the profile may be extrapolated to the start element.

In / On / Out: allows you to specify the Go-Go type positioning of the tool with respect to the start element. Go-Go type positioning of tool in general positions the tool based on its radius and tool compensation number. This means positioning will vary for different tool insert geometries with respect to the limit and there is possibility of tool going beyond limit even with IN option. The On option is always used for a point type start element.

End Limit: None / In / On / Out
This option allows you to specify a point, line, curve or face as the end element of the groove finish profile. If a face is specified, the end element is the intersection of the face and the working plane. The position of the end of machining is also defined with respect to this element. If needed, the profile may be extrapolated to the end element.

In / On / Out: allows you to specify the Go-Go type positioning of the tool with respect to the end element. Go-Go type positioning of tool in general positions the tool based on its radius and tool compensation number. This means positioning will vary for different tool insert geometries with respect to the limit and there is possibility of tool going beyond limit even with IN option. The On option is always used for a point type start element.

Note: To avoid collisions of tool with Limit geometry or unwanted machining beyond limits with IN option, either define limits with suitable offset value or include Limit geometry as part element (this is better wherever applicable) and avoid limit definition.

Relimiting the area to machine by means of limit elements

If you specify a point, it is projected onto the part profile.
A line through the projected point parallel to the radial axis delimits the area to machine.

If you specify a line, its intersection with the part profile is calculated (if necessary, the line is extrapolated).
A line through the intersection point parallel to the radial axis delimits the area to machine.

If you specify a curve, its intersection with the part profile is calculated (if necessary, the curve is extrapolated using the tangent at the curve extremity).
A line through the intersection point parallel to the radial axis delimits the area to machine.

Orientation for Groove Finish Turning

• Orientation: Internal / External / Frontal / Other
  This option allows you to define the orientation of the groove to be machined.

When Orientation is set to Other, you must specify the Angle of Incline.

Corner Processing for Groove Finish Turning

The following options allow you to define how corners of the profile are to be machined:

• Follow profile: no corners are to be machined along the profile
• Chamfer: only 90 degree corners of the profile are chamfered
• Rounded: all corners of the profile are rounded.

Corner processing is proposed for Entry, Exit and Other corners.

• Chamfer Length if Other corner processing mode is Chamfer.
• Corner Radius if Other corner processing mode is Rounded.
• Entry Corner Chamfer Length on first flank of groove when Entry corner processing mode is Chamfer
• Entry Corner Radius on first flank of groove when Entry corner processing mode is Corner
• Entry Corner Angle on first flank of groove when Entry corner processing mode is Corner
• Exit Corner Chamfer Length on last flank of groove when Exit corner processing mode is Chamfer
• Exit Corner Radius on last flank of groove when Exit corner processing mode is Corner
• Exit Corner Angle on last flank of groove when Exit corner processing mode is Corner.

The Entry/Exit corners are determined according to the specified machining direction and not by the tool motion. Entry Corner means the first corner on the Part profile in the specified machining direction and Exit Corner means the last corner on the Part profile in the specified machining direction.

Part Offsets for Groove Finish Turning

• Part offset, which is defined perpendicular to the part profile.
• Axial part offset.
• Radial part offset.

• Start limit offset: distance with respect to the start element (only if start element is a line or a curve, and when In or Out is set for start element positioning).
• End limit offset: distance with respect to the end element (only if end element is a line or a curve, and when In or Out is set for end element positioning).

Offsets can be positive or negative with any absolute value. The global offset applied to the part profile is the resulting value of the normal, axial and radial offsets. In addition to these global offsets, local values can be applied to segments, curves and arcs of the part profile.

Machining Strategy Parameters for Groove Finish Turning

Path Definition for Groove Finish Turning

• Machining Direction
  You can specify the machining direction by means of:
  • To or From Head for Internal and External machining
  • To or From Spindle for Frontal machining
  • Right or Left of Groove for machining an inclined groove.

If start and end elements are defined that are in conflict with the machining direction, then these elements will be reversed automatically.

• Clearance
  This value defines the clearance to be applied to the next flank after the first machined flank. The bottom of the groove will be machined up to the position defined by this clearance value.

  Note that for operations with Orientation set to Other, the clearance value is not applied for grooves with an inclined groove bottom.


• Overlap
  Amount of machining overlap at the bottom of the groove.

Note: The sum of the Clearance and the Overlap should be less than or equal to the groove bottom width. Otherwise a warning message is issued.
The groove bottom width is the horizontal bottom of the groove, or the length of the bottom element of the groove where there is no vertical component. For a circular groove, the groove bottom width is zero.

• Under Spindle Axis Machining
  When finishing in frontal mode, this option allows you to request machining under the spindle axis.
• Contouring for Outside Corners: Angular / Circular
  Allows you to define whether contouring of corners is to be angular or circular. Note that the part profile is respected in this case.
• Machining Tolerance for following the groove finish profile.

Lead-in for Groove Finish Turning

• First Flank Lead-in: Linear / Circular

Defines the type of lead-in at lead-in feedrate on the first flank of the groove.

• Linear: lead-in up to the point where first flank machining starts is defined by means of the first lead-in distance and first lead-in angle parameters.
• Circular: lead-in is circular and tangent to the point where first flank machining starts. It is defined by means of the first lead-in radius and first lead-in angle parameters.

Note that the first lead-in angle is defined with respect to the normal to the cutting direction. The figure below shows the effect of a positive first lead-in angle (external machining is assumed).

• Last Flank Lead-in: Linear / Circular
  Defines the type of lead-in at lead-in feedrate on the last flank of the groove.
  •   Linear: lead-in up to the point where last flank machining starts is defined by means of the last lead-in distance and last lead-in angle parameters.
  • Circular: lead-in is circular and tangent to the point where last flank machining starts. It is defined by means of the last lead-in radius and last lead-in angle parameters.

  Note that the last lead-in angle is defined with respect to the normal to the cutting direction. The figure below shows the effect of a positive last lead-in angle (external machining is assumed).



• Other Flank Lead-in: Linear / Circular
  For a groove that has multiple recesses, this option defines the type of lead-in required to machine flanks other than the first and last flanks.

• Other Lead-in Distance on other flanks of the groove when other flank lead-in type is Linear
• Other Lead-in Angle on other flanks of the groove when other flank lead-in type is Linear or Circular
• Other Lead-in Radius on other flanks of the groove when other flank lead-in type is Circular.

 Note that the other lead-in angle is defined with respect to the cutting direction.

Lift-off for Groove Finish Turning

• Lift-off Type: Linear / Circular

Defines the type of lift-off from the groove at lift-off feedrate.

• Lift-off Distance when lift-off type is Linear.
• Lift-off Angle when lift-off type is Linear or Circular.
• Lift-off Radius when lift-off type is Circular.

Note that the lift-off angle is defined with respect to the normal to the cutting direction. The figure below shows the effect of a positive lift-off angle (external machining is assumed).

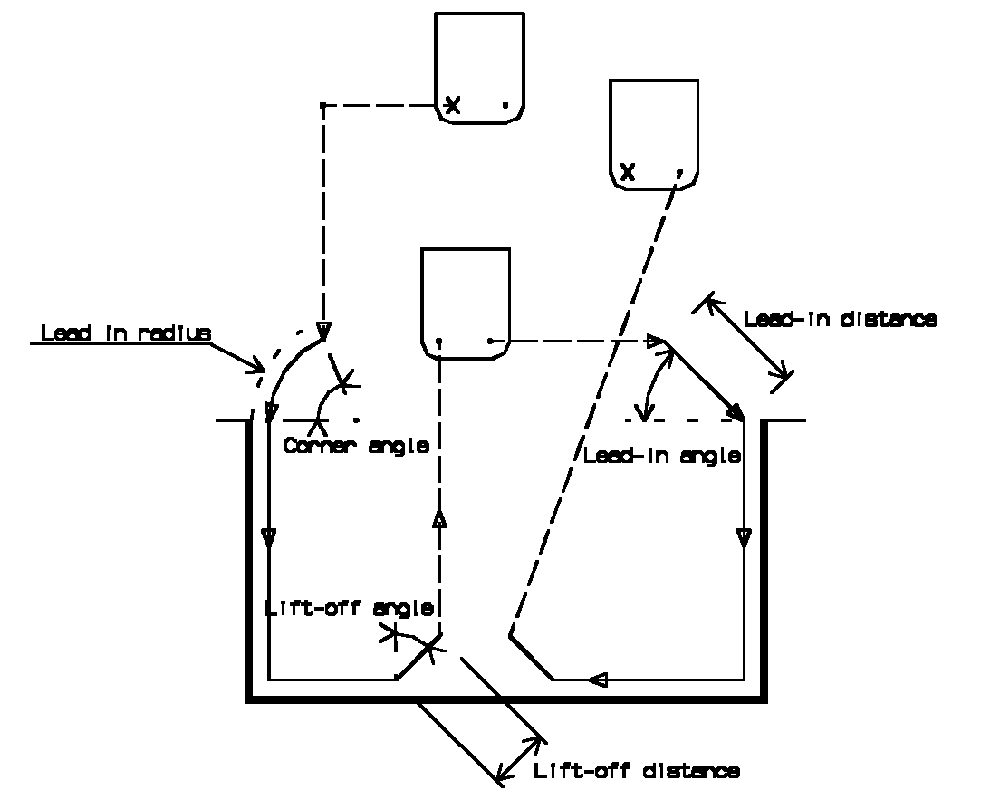

The example below shows Linear lead-in and Circular lift-off for Groove Finish Turning.

Feeds and Speeds for Groove Finish Turning

Speed unit can be set to:

• Angular: spindle speed in revolutions per minute
• Linear: constant cutting speed in units per minute

then you can give a Machining Speed value.

The following feedrates can be set to either Angular units (length per revolution) or Linear units (length per minute):

• Machining Feedrate
• Chamfering Feedrate for machining chamfers or corners
• Lift-off Feedrate
• Lead-in Feedrate.

In addition to these global feedrates, local feedrates can be applied to segments, curves and arcs of the part profile.

Feedrates in units per minute are also available for air cutting such as macro motions and path transitions.
Note that RAPID feedrate can be replaced by Air Cutting feedrate in tool trajectories (except in macros) by selecting the checkbox in the Feed and Speeds tab page .

Tool Compensation for Groove Finish Turning

You can select a tool compensation number corresponding to the desired tool output point. Note that the usable compensation numbers are defined on the tool assembly linked to the machining operation. If you do not select a tool compensation number, the output point corresponding to type P9 will be used by default.

CUTCOM (Cutter Compensation): None / On / Reverse
If this option is set to On or Reverse, the NC output will include CUTCOM instructions in approach and retract paths for cutter compensation.

• On: CUTCOM/RIGHT instruction generated if tool is to the right of the toolpath and CUTCOM/LEFT if tool is to the left of the toolpath.
• Reverse: CUTCOM/RIGHT instruction generated if tool is to the left of the toolpath and CUTCOM/LEFT if tool is to the right of the toolpath.

See Cutter Compensation with Finish Operations for more information.

Note that the change of output point is managed automatically if you have set the Change Output Point option. If the output point is consistent with the flank of the groove to be machined, the output point is changed when the other flank of the groove is machined. At the end of the operation, the output point is the same as it was at the start of the operation. See Changing the Output Point for more information.

Approach and Retract Macros for Groove Finishing

The following Approach and Retract macros are proposed: Direct, Axial-radial, Radial-axial, and Build by user.
The selected macro type (Approach or Retract) defines the tool motion before or after machining.

Various feedrates are available for the approach and retract motions (RAPID, lead-in, lift-off, and so on). Local feedrates can be set to either Angular units (length per revolution) or Linear units (length per minute).

See Define Macros on a Turning Operation for more information.
