Local Healing Parameters

More Operating Mode information is available in the Local Healing Basic Task.

Edges to Heal

Displays the list of edges to heal.

You can edit that list:

• by selecting elements in the geometry:

• Standard selection (no button clicked):

• when you select an unlisted element, it is added to the list
• when you select a listed element, it is removed from the list

• Add Mode:

• when you select an unlisted element, it is added to the list
• when you select a listed element, it remains in the list

• Remove Mode:

• when you select an unlisted element, the list is unchanged
• when you select a listed element, it removed from the list

If you double-click Add Mode or Remove Mode, the chosen mode is permanent,
i.e. successively selecting elements will add/remove them.
However, if you click only once, only the next selected element is added or removed.

You only have to click the button again, or click another one, to deactivate the mode.

• by selecting an element in the list then using the RemoveSel contextual menu item to remove it from the list
  or the ReplaceSel contextual menu item to replace the element by another.

Parameters tab

Continuity

Point or Tangent continuity are available.

Distance Objective

Distance to be reached in respect with the point continuity, i.e. the maximum gap allowed between two healed elements.

Tangency Objective

Available for a Tangent continuity.
Angle to be reached in respect with the tangency continuity, i.e. the maximum allowed tangency deviation
allowed between healed elements.
Those two objectives can be deduced from an analysis, such as Surface Connection Checker.

Freeze tab

Elements to Freeze

Defines the list of frozen elements, that is the elements that should not be affected by the healing operation.
You can edit the list as described above for the Edges to Heal

Freeze Planar Elements

Check this option to leave planar elements untouched.

Freeze Canonical Elements

Check this option to leave canonic elements untouched.

Sharpness tab:

Available for a Tangent continuity.

Edges to Keep Sharp

Defines the sharp edges that must remain sharp.
You can edit the list as described above for the Edges to Heal

Sharpness Angle

Maximum value of the angle below which an angle is considered as sharp.
This can be useful when offsetting the resulting healed geometry for example.

Visualization tab:

Enables you to better understand the discontinuities in the model and the results of the healing action.
It lets you define the way the messages are displayed on the healed element.

Show solution(s)

Check the required option to display all solutions (All), or the edges that are not corrected (Not corrected),
or to display nothing (None).
All the messages, that is to say the messages indicating where the discontinuity remains as well as those indicating
where the discontinuity type has changed (in point (PT) and tangency (^))

Shown solution(s): All

• By default, both the symbols or and the information text are displayed: ,
  on all edges. For a better comfort, you can:

  • Display information interactively: Only the symbols or that point on each edge processed are visible.
    The information text appears as you move the cursor over the symbol.

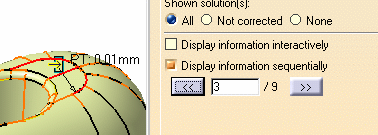

• or Display information sequentially. In this case, the counter below indicates the rank and the total number of solutions.
  Click the << or >> to display the information on a given edge (symbol and text).

If you combine both options, only one edge is highlighted with one symbol  or .
Place your cursor on that symbol to display the information text and push the arrow to go to the next edge.
