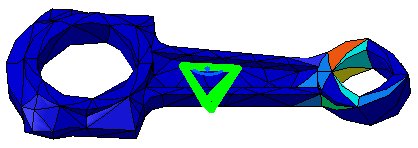

Activate the Estimated local error image to
visualize the quality elements.
To do this, right-click the Estimated local
error image in the specification tree and select the
Activate/Deactivate contextual menu.
 |
-
Double-click the Global Adaptivity.1 object in
the specification tree to visualize the current error.
The Global Adaptivity appears.

Click Cancel to close the Global
Adaptivity dialog box. |
-
Double-click the Local Adaptivity.1 object in
the specification tree.
The Local Adaptivity appears.

Click Cancel to close the Local Adaptivity
dialog box. |
-
Click Compute with Adaptivity
in the Compute toolbar.
The Adaptivity Process Parameters dialog box appears.

- Name: gives you the name of the adaptivity set you
want to compute.
- Iterations Number: lets you specify the maximum
number of iterations you want to perform to reach the objective
error you have defined.
- Allow unrefinement: lets you choose to allow
refinement or not.
 |
If you allow unrefinement, the global sizes of
the mesh parts may be modified. |
- Deactivate global sags: lets you choose to ignore
the global sags.
 |
Existing global sags will be deactivated. |
- Minimum size: lets you specify a minimum mesh size.
 |
The objective size must be superior to the mesh
size. |
- Sensor stop criteria: lets you specify a sensor.
If you select this check box, the
Parameter Convergence frame appears:

- Sensor parameter: lets you select the sensors.
 |
Multi-selection of sensor criteria is
available. |
- Tolerance (%): lets you specify the tolerance
value.
|
|
To sum up, the adaptivity process stops as soon as:
-
the maximum number of iterations is reached
-
or all objective errors are reached
-
or all sensors selected as criteria converge.
|
-
Clear the Minimum size check box.
-
Select the Sensor stop criteria check box in
the Adaptivity Process Parameters dialog box.
-
Activate the Sensor parameter field, select a
sensor and enter a Tolerance value (in %).
In this particular example, select the Energy
sensor as shown below:
 |
 |
-
You can add other sensor criteria, delete a sensor
criteria or delete all the sensor criteria. To do this, right-click a line and select the desired contextual
menu: Add, Delete or Delete All.

-
Only the sensors selected as stop criteria in the
adaptive process are updated during the computation with adaptivity.
|
-
Click OK in the Adaptivity Process Parameters
dialog box.
The Computation Status dialog box appears.

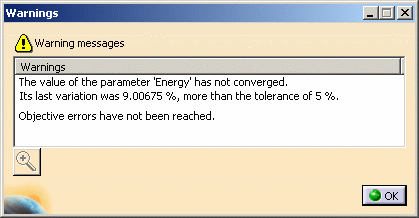

At the end of the computation, a Warnings message appears to inform
you that the selected sensor has not converged and the objective
error is not reached.
 |
-
Click OK in the Warnings message.
Note that a Local Mesh Size Map.1 object
has been created under OCTREE Tetrahedron Mesh.1 in the
specification tree and that the Adaptivities.1 set is now
valid.
 |
-

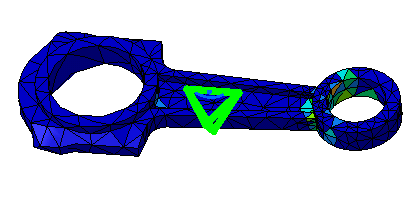

Activate the Estimated local error image to
visualize the quality elements.
To do this, right-click the Estimated local
error image in the specification tree and select the
Activate/Deactivate contextual menu.
 |
-
Double-click the Global Adaptivity.1 object in
the specification tree to visualize the current error value.
The Global Adaptivity dialog box appears.

Note that: after the first iteration of computation
with adaptivity, the objective error you have specified (9%)
is not reached. |
-
Click OK in the Global Adaptivity dialog box.
-
Click Compute with Adaptivity
.
The Adaptivity Process Parameters dialog box appears. |
-
Enter 2 as Iterations Number value
and click OK in the Adaptivity Process.
-
Double-click the Global Adaptivity.1 object in
the specification tree to visualize the current error value.
The Global Adaptivity dialog box appears.

The objective global error you have specified is
reached. |
-
Double-click the Local Adaptivity.1 object in
the specification tree.
The Local Adaptivity appears.

The objective local error you have specified is
reached. |
-

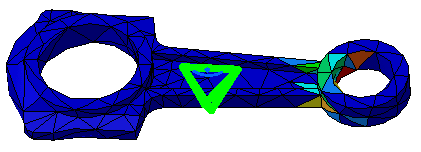

Activate the Estimated local error image to
visualize the quality elements.
