Graphic Replacement for Stiffeners

	This task explains how to generate graphic replacement for stiffeners.
	The sample XML file provided with this application is `Structure_GVS.xml`. This file is located in `../OS/resources/standard/generativeparameters`. Customizing parameters in this file affects the appearance of your drawings and is an administrator task. The reference planes that will be used for a given project are defined in an XML file pointed by a PRM resource: `ProjectReferencePlanes`. For more information, see Project Reference Planes.
	Appropriate application licenses including one for Generative Drafting are required.
	For information on how to create views using generative view styles, how to set view style parameters or more generally on administering generative view styles, see the Generative Drafting User's Guide.
	For graphic replacement for reference plane systems, see Graphic Replacement for Reference Plane Systems.
	In the sample XML file, generative view style parameters for stiffeners are located towards the bottom of the file under `StructureObjects`.
	`Stiffener` `Draw` Values. `Graphic Replacement` Values. `Angular Tolerance` Values. `ViewType` Description. `TopView` `NearSide` Parameters. `FarSide` Parameters. `AnnotationTextStyle` Parameters. `FlangeOrientationSymbol` Parameters. `ExtremitySymbol` Parameters. `MaterialExtrusionSymbol` Parameters. `SideView` `NearSide` Parameters. `FarSide` Parameters. `AnnotationTextStyle` Parameters. `ExtremitySymbol` Parameters. `EndView` `NearSide` Parameters. `FarSide` Parameters. `AnnotationTextStyle` Parameters. `AnyView` `NearSide` Parameters. `FarSide` Parameters. `AnnotationTextStyle` Parameters.
	`Draw` `Yes` extracts the object. `No` indicates the object will not be extracted.
	`GraphicReplacement` Indicates whether to use graphic replacement. `Yes` or `No`.
	`Angular Tolerance` To trigger this type of view in degrees. Default is `15.0`.
	`ViewType` There are four view types for stiffeners: `TopView`, `SideView`, `EndView` and `AnyView`. Each has `NearSide` and `FarSide` parameters and `AnnotationTextStyle` Parameters. Additionally, `TopView` has: `FlangeOrientationSymbol` parameters. `ExtremitySymbol` parameters. `MaterialExtrusionSymbol` parameters. `SideView` also has `ExtremitySymbol` parameters. Note: Logical and Functional Tolerancing and Annotation (FTA) Section are the only modes, where you can compute `AcrossSide` parameters, which are similar to `NearSide` and `FarSide` parameters. The default values are same as `NearSide` values. If you are not interested in an `AcrossSide` analysis, you need to synchronize Near and Across `Linetype` and `LineThickness`.
	`FlangeOrientationSymbol` `Draw` To draw a flange orientation symbol at the ends of a stiffener. Default is `Yes`. `ChapterName` The name of the chapter containing FlangeOrientation symbols within the Drawing Symbol Structure Catalog. (Refer to PRM file.) `SymbolName` The symbol name to draw. `ReferenceScale` Scale factor to apply to the symbol as drawn. Default is `1`. `SymbolLocation` The location on the line representation of the plate where the throw orientation will be drawn. Values are: `1` Start `2` Middle `3` End The following shows a stiffener in `TopView` `FarSide` with a `SymbolLocation` of Start. The following shows a stiffener in `TopView` `FarSide` with a `SymbolLocation` of Middle.

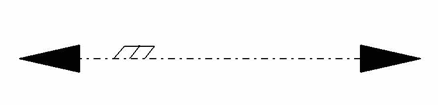

	`ExtremitySymbol` `Draw` Indicate `Yes` to draw arrowheads at the extremities. `No` is the default (arrowheads are not drawn.) `MinimumLengthRatio` A percentage of the length of the stiffener used to determine if there is enough room to draw the extremity symbols without overlap. The default is 45. In other words, the length of the symbol placed at an extremity may not exceed 45% of the total length of the stiffener, taking into account the ReferenceScale and the view scale. `ReferenceScale` Scale factor to apply to the symbol as drawn. Default is `1`. (A value of 2 results in a placed symbol twice as big.) `ChapterName` The name of the chapter containing extremity symbols within the Drawing Symbol Structure Catalog. (Refer to PRM file.) `DefaultExtremitySymbol` The default symbol used to represent the end of a stiffener without endcuts. `ExtremitySymbolByEndCutType` `Draw` Indicates stiffener end symbol is dependent on the end cut type (`Yes`). `No` (default) indicates the SymbolsAtEndsOfProfile option will always be used. `Snipe` The symbol used for a Snipe endcut. `Weld` The symbol used for a Weld endcut. `Trim` The symbol used for a Trim endcut. The following shows a split stiffener in `TopView` with an `ExtremitySymbolByEndCutType` of `Snipe` and `Trim` endcuts. The following shows a split stiffener in `SideView` with an `ExtremitySymbolByEndCutType` of `Snipe` and `Trim` endcuts.
	`MaterialExtrusionSymbol` `Draw` Draws the material throw orientation. `Yes` or `No`. `MaterialExtrusionMode` Draws the material throw orientation. Values are: `1` Tick mark (true width) `2` Throw orientation (symbolic) `3` Tick mark and throw orientation `SymbolLocation` The location on the line representation of the plate where the throw orientation will be drawn. Values are: `1` Start `2` Middle `3` End `MaterialThroughOrientationSymbol` `ChapterName` The name of the chapter containing material through orientation symbols within the Drawing Symbol Structure Catalog. (Refer to the PRM file.) `SymbolName` The symbol name to draw. `ReferenceScale` Scale factor to apply to the symbol as drawn. Default is `1`. `TickMarkSymbol` Length of tick mark when drawing a tick mark. Default is `5.0` millimeters.
