Near Side, Far Side, and Across Side View Types

When you generate graphic replacement for structure objects, various view types are available, depending on the object. These view types have near side, far side, and across side parameters.
  NearSide, FarSide, and AcrossSide Parameters

Note: The default AcrossSide values are same as NearSide values.


Draw
To draw near side or far side object. Yes is the default. No indicates object will not be drawn.
Linetype
All projected objects have a 2D curve result. This option allows you to the set the representation of the curve of the 2D result. For NearSide, the default value is 1 (solid line type). For FarSide, the default value is 4 (phantom line type). Note that this value is an index in an array of line types.

To understand this index and to see the available line types:

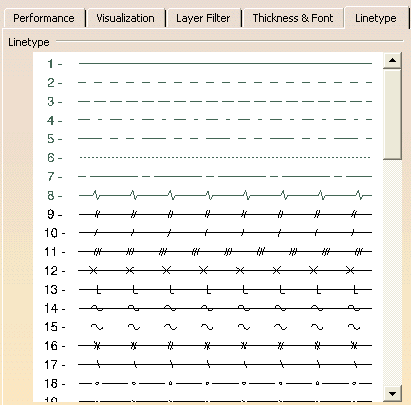

Select Tools - Options - General - Display from the menu bar. Select the Linetype tab.



To customize this array, refer to Customizing Settings in the Infrastructure User Guide.

LineThickness
All projected objects have a 2D curve result. This option allows you to the set thickness of the curve of the 2D result. Default value is 2. Note that this value is not expressed in the current unit of your 3-D session, but as an index in an array of line thicknesses.

To understand this index and to see the available line line thicknesses:

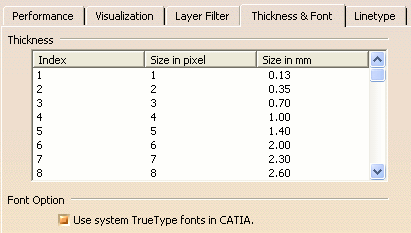

Select Tools - Options - General - Display from the menu bar. Select the Thickness and Font tab.

You can see that 2 (the default) is equal to 0.35mm.

To customize the line thicknesses array, refer to Customizing Standards in the Infrastructure User Guide.


LineColor
3DInheritance
To have the line color inherit the color of the 3-D object. Yes is the default, the color is inherited. No indicates the color is not inherited.
Color
You can specify a color value when you select No for 3DInheritance.
