VNC Machine Accessibility (*.dev device)

task target This task shows how to check accessibility on a VNC machine. This involves:
  • customizing the machine tool environment
  • loading part and opening the desired NC workbench
  • using the commands of the Machine Management toolbar for:
    • importing resources
    • positioning the part on the machine table
    • attaching the part on the machine table
  • checking accessibility at the current tool position by means of a replay.
scenario 1. Select Tools > Options from the menu bar. Select the Compatibility category in the tree to the left.

In the Root Libraries field of the DELMIA D5 tab page, enter the path of a library that will allow importing DELMIA Deneb device files (for example, ..\startup\Manufacturing\Samples\NCMachineToollib).
Note that the path name must not contain any blank characters.

Click OK to validate this choice.
2. Open the AccessibilityChecking.CATPart document, then select NC Manufacturing > Prismatic Machining from the Start menu.
3. Select the Resource Context  to import a VNC machine.

In the dialog box that appears, select Files of type: (*.dev) Deneb devices then open the machine 3_2_axis.dev in the NCMachineToollib\Devices folder.
This machine is added to the Resource List.
4. Double-click the Part Operation in the tree, then select Machine .

In the Machine Editor dialog box, click then select the Makino_5.1 VNC machine in the tree. Click OK to assign the machine to the Part Operation.

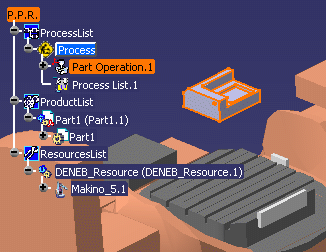

5. Click OK in the Part Operation dialog box: the machine is added to the Resource List. The machine and the part are displayed together in the 3D window.
6. Select Snap then position the part on the machine table as follows.
  • Select the part in the 3D window. A square symbol appears.
  • Use the mouse to move the symbol and click when the square is located on the underside of the part.

  • An orientation symbol and the Define Reference Plane dialog box appear. Click OK in the dialog box.

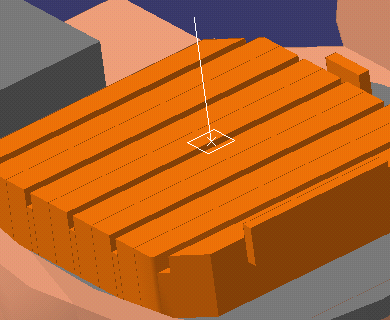

  • Select the machine table in the 3D window. A square symbol appears.
  • Use the mouse to move the symbol and click when the square is located on the center of the table.

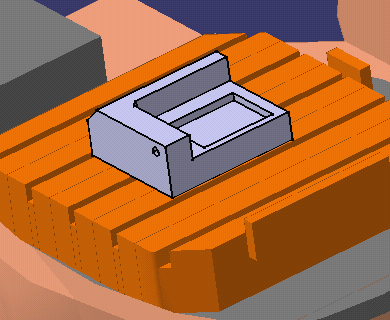

  • An orientation symbol and the Define Reference Plane dialog box appear. Click OK in the dialog box. The part is then snapped onto the table.
  • Click Select to exit the Snap command.

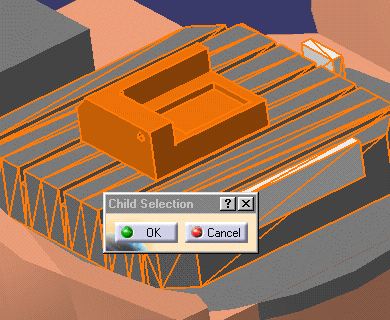

7. Select Attach then attach the part and the machine as follows.
  • Select the table (parent object) then the part (child object).
  •  Click OK in the Child Selection dialog box.
You can use Fit All In to reframe the part in the 3D window.
8. Create a machining operation (a pocketing operation, for example).
9. Activate the Replay dialog box, then click Check Reachability to verify that the machine can effectively reach the part at the current tool position.

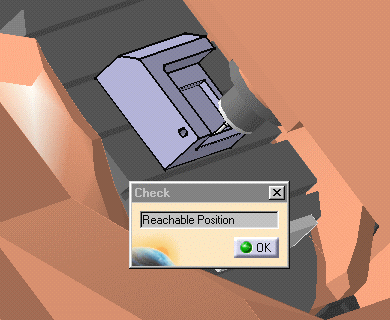

A Check pop-up appears indicating whether the position is reachable:

  • If reachable, then the tool, part and machine are displayed at that position.
  • If the position is out of limits or unreachable, then the part and machine are displayed with the tool at the home position.
10. Click OK in the Check pop-up to return to the replay mode.

end of task
