Analyzing Sketched Geometry

1. Select Tools > Sketch Analysis from the menu bar.

   Or alternatively, click Sketch Analysis in the Tools toolbar (2D Analysis Tools sub-toolbar).

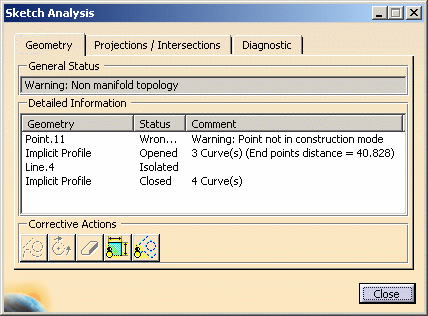

   The Sketch Analysis dialog box appears. It contains three tabs: Geometry, Projections / Intersections and Diagnostic.

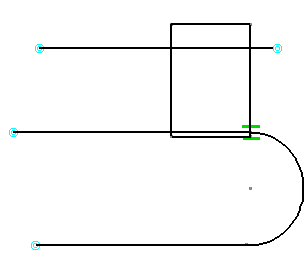

   Note that on the sketch, some geometrical items and constraints are highlighted so that you can see them easily.


   The Geometry tab displays information helping you know whether the sketch geometry is valid.

   General Status: analyzes several elements globally. Note that "Implicit Profile" refers to all profiles except for profiles created via Output Feature and Profile Feature . For more information, see Creating Output Features and Creating Profile Features. Detailed Information: provides a detailed status/comment on each geometrical element of the sketch. Corrective Actions  : according to the analyzed element you select and which is not correct, you will be able to: turn this element into a construction element, close a profile that is not, erase a disturbing element, hide all constraints on the sketch, hide all construction geometries on the sketch and in the detailed information area of the Geometry tab.

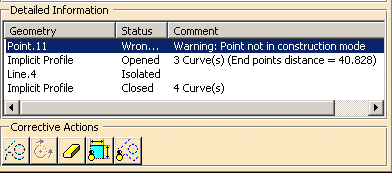

2. In the Detailed Information table, select Point.11.

3. Click the Set in Construction mode icon to turn the standard mode point into a construction mode point and solve the problem.

Diagnosing Geometry

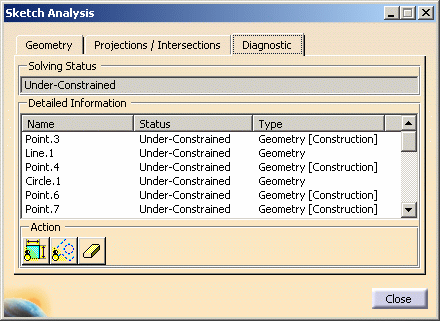

4. Click the Diagnostic tab.

   The information on this tab displays a full diagnosis of a sketch geometry. It provides a global analysis of the sketch as a whole, and specifies whether individual geometrical elements in the sketch are  under-constrained (under-defined), over-constrained (over-defined) or iso-constrained (well defined):

   Solving Status: provides a quick overall analysis of the sketch geometry. Detailed Information: provides a detailed status on each constraint and geometrical element of the sketch, and lets you know what type of element it is (geometry, constraint). Action : according to the analyzed element you select, you will be able to: hide all constraints on the sketch and in the detailed information area, hide all construction geometries on the sketch and in the detailed information area of the Diagnostic tab. erase geometry If you select items from the Detailed Information table, they will be highlighted on the sketch, which enables you to identify them easily. To solve constraint-based problems in the sketch, you need to edit the sketch directly.

5. Close the Sketch Analysis dialog box.

6. Right-click the Point.3 item in the sketch or from the specification tree, and select Point.3 object > Fix.

7. Repeat this operation for the Line.1, Circle.1, Line.2 and Point.8 items.

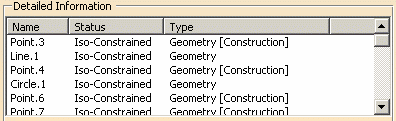

8. Re-open the Sketch Analysis dialog box and click the Diagnostic tab.
   You can notice that the items you fixed are now iso-constrained.

More about the Reset Dependencies Option

If you created a complex fix together scenario in prior versions (from R14 to R17) by deselecting the Add/Remove Dependencies option of the Fix Together Definition dialog box, you can reset the dependencies removed using the Reset Fix Together Dependencies option of the Sketch Analysis dialog box.

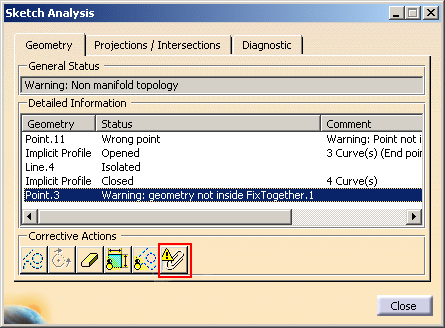

When an inconsistency is detected in a fix together, a warning is displayed in the Detailed Information box and a new Reset Fix Together Dependencies command is available:


You are free to either reset the dependencies or leave it as it is. To reset the dependencies, select all the items with a Non-standard fix together definition status and click Reset Fix Together Dependencies.

About Coincidence Constraints Automatically Added to Profiles

Whenever you create a sketch-based feature from a profile, the system automatically creates coincidence constraints on the overlapping points of the profile to interpret it as closed. This is the reason why once the sketch-based feature is created, coincidence constraints are visible in the detailed information list of the Sketch Analysis results.
