Offset Data

The Offset Data tab contains one category of options to manage output formats, for example HTML pages or CSV files, for your offset data: Global.

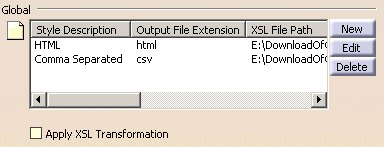

Global

New / Edit / Delete

Use New, Edit or Delete to add new stylesheets, and edit or delete existing ones.

Sample stylesheets (OffsetDataAsHTML.xls and OffsetDataAsCSV.xls) for two formats, HTML and CSV respectively, are provided. By default, they are located in the installation folder under OS/startup/EquipmentAndSystems/StructurePreliminaryLayout/StyleSheet.

Apply XSL Transformation

Select this check box to take all stylesheets into account and choose the format of your output data when interactively generating your offset data.

By default, this check box is cleared and only XML files will be generated.
