This document explains how to customize
machining operation settings for Machining products.
Select the Operation tab, which is divided up into areas.
|
|||||||||||||||
Default Values |
|||||||||||||||
Select the check box
if you want operations to be created with the values used in the current
program. By default, this check box is selected. |
|||||||||||||||

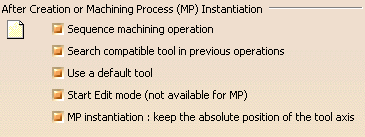

After Creation or Machining Process (MP) Instantiation |
|||||||||||||||
Select the desired check boxes to specify conditions to be applied when you create machining operations or machining processes. Sequence machining operationMachining operations are automatically sequenced in the current program
after creation. Search compatible tool in previous operationsWhen creating an operation, if a compatible tool exists in a previous operation of the current program, it will be set in the new operation. Otherwise, the operation will be incomplete. Use a default toolWhen creating an operation, a search is done in the document to find a
compatible tool. If no compatible tool exists, a default one is created in
the document and set in the created operation. Note: These last two options are not available for creating operations through the Machining Process instantiation if a tooling query is used to find the tool. Start edit mode (not available for machining processes)When creating a machining operation, Edit mode is automatically started
to allow modifying parameters of the created operation. MP instantiation: keep the absolute position of the tool axisWhen a machining process is instantiated, the tool axes of the activities in the MP keep their absolute positions. Otherwise, if the check box is not selected, these positions are changed in order to keep the relative components of the tool axis. By default, these check boxes are selected. |
|||||||||||||||
When Copying |
|||||||||||||||
Select the check box
if you want geometry links to be duplicated in a copied operation. Note: When this option is selected, if you copy an operation that references a machining feature (such as Machining area, Slope area or Rework area), the feature is not actually duplicated in the copied operation. However, the copied operation will reference the initial feature - this helps to factorize the geometry definition. By default, this check box is selected. Performance is improved when this check box is not selected. |
|||||||||||||||
Display |
|||||||||||||||
Select the check box if you want to display tool paths of operations in the current Part Operation. By default, this check box is not selected. |
|||||||||||||||
User Interface |
|||||||||||||||
Select the check box if you want to have the possibility of simplifying the dialog boxes of machining operations (that is, you can display the minimum number of parameters necessary for a correct tool path). This setting is available for 3-axis surface machining operations only. By default, this check box is not selected. |
|||||||||||||||
Start Feedrate |
|||||||||||||||
If the checkbox is

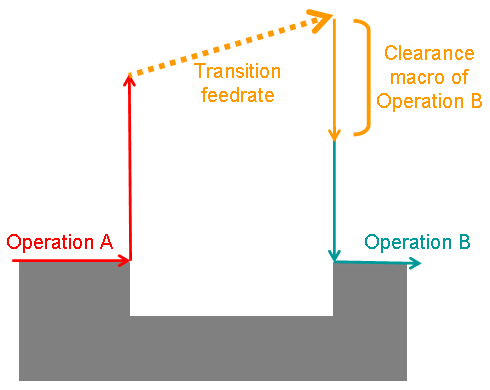

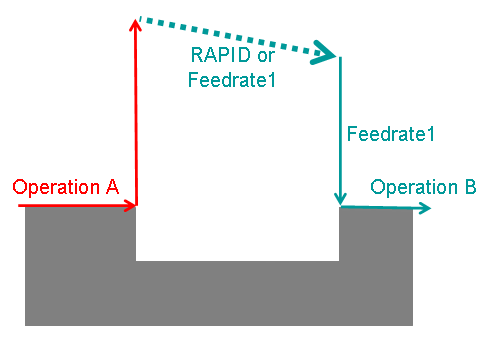

selected, the following paragraphs illustrate the expected behaviour. If a clearance macro is defined and active on machining operation B (see figure below), the feedrate at the start of operation B is the feedrate of the transition path in the plane of the clearance macro. If there is no clearance macro defined on operation B (or if a clearance macro is defined but inactive), the feedrate at the start of operation B in the figure below is:
By default, this check box is selected. |
