Prism Object

FirstLimit SecondLimit

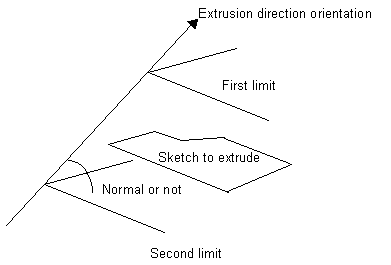

The Prism object provides to the Pad or to the Pocket the extrusion direction set or retrieved thanks to the SetDirection or GetDirection methods. This extrusion direction can be normal to the sketch plane or not. This is expressed using the CatPrismExtrusionDirection enumeration in the DirectionType property. The extrusion direction has an orientation expressed using the CatPrismOrientation enumeration in the DirectionOrientation property. The Pad or the Pocket object can be symmetric to the skecth plane. This is stored in the IsSymmetric property. Finally, the pad or the pocket has two limits stored in the FirstLimit and SecondLimit properties as Limit objects. The Pad and the Pocket objects do not hold specific properties or methods.
