Java Test Objects and the mkodt Command

RADE	Java Unit Test Manager	Java Test Objects and the mkodt Command Principles of use
Technical Article

Abstract

This article explains the basic principles of java test objects. You will find here everything to understand the test file tree and to create and to run your java test objects.

What You Will Learn with This Article
The mkodt Command
Test Shell Script Creation
- Available Commands in a Test Shell Script
- What's Forbidden in a Test Shell Script

What You Will Learn with This Article

This article is intended to help you understand how to create and to run java test objects using the mkodt command. If you want to have more information and examples of java test objects, see the use cases documentation.

[Top]

The mkodt Command

The mkodt command runs java test objects which are delivered in test frameworks. This command gives the choice (by using different options) of running one test object or all test objects found in a given framework or in a workspace. The command is available with mkmk commands. To access to this command, you have to run the mkmk_profile or the adl_profile.

[Top]

Test File Tree

The CAA file tree is composed by framework. To each code framework correspond a test framework which contains a FunctionTests directory; In this directory, you must find everything you need to run test objects.

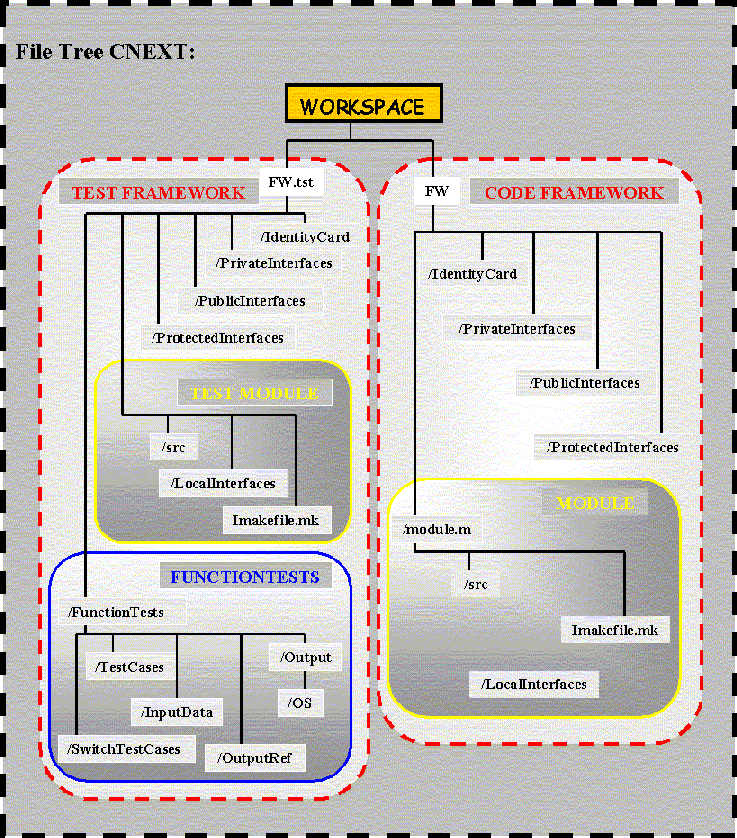

File Tree

File Tree Description

Directory	Description
TestCases	ODT shell-scripts
SwitchTestCases	Switch ODT shell-scripts
InputData	Input of shell-scripts. Every necessary files to run ODTs
OutputRef	Reference output of ODTs
Output/$OS	Output generated by mkodt on each operating system

[Top]

Options Available with mkodt

Use the concepts of "workspace" and "project"

Help mode
mkodt -h
Contextual mode
Descriptive mode
To be explained

[Top]

Environment Variables Evaluated by mkodt

Variable	Use	Meaning
`WSROOT`	Read only	References the workspace directory containing the test objects to be run.
`ADL_ODT_TMP`	Read only	References a temporary directory, for instance /tmp on Unix and C:\TEMP on Windows.
`ADL_ODT_IN`	Read only	References a directory where all data needed as input for a program are stored.
`ADL_ODT_OUT`	Read/write	References an output directory where any output data can be stored
`ADL_ODT_REF`	Read only	References a directory where reference data are stored. Reference data are data used to compare what a program produces with what should be produced....
`ADL_ODT_JRE`	Read/write	References the Java RunTime Environment used to launch the ODT.
`ADL_ODT_NULL`	Read only	References a special file which can be used to redirect outputs from a program (/dev/null with Unix or NUL with Windows.)
`ADL_ODT_SLASH`	Read only	References the / on Unix and the \ on Windows
`ADL_ODT_SEPARATOR`	Read only	References the : (colon) on Unix and the ; (semi-colon) on Windows
`ADL_ODT_CONCATENATION`	Read/write	References a concatenation which is used by the WhichDir command

[Top]

Environment Variables Evaluated by the User

Variable	Meaning
`ADL_ODT_CONCATENATION`	References a concatenation which is used by the WhichDir command
`ADL_ODT_OUT`	References an output directory in which any output data can be stored. This directory can be evaluated before running mkodt.
`ADL_ODT_JRE`	References the JRE (Java RunTime Environment) where the ODT is going to be replayed: ADL_ODT_JRE can be set to: msjre_a (Windows) ( Microsoft's JRE available on Windows sunjre_a (Windows and SunOS) (SUN's JRE available on Windows and SunOS) ibmjre_a (AIX) (IBM's JRE available on AIX) hpjre_a (HP) (HP's JRE available on HP) If this variable is not set before launching mkodt, it will be set by default to: Replay on Windows: sunjre_a Replay on SunOS: sunjre_a Replay on AIX: ibmjre_a Replay on HP: hpjre_a
`ODT_PERTINENCE`	To suspend the pertinence measure, use: ( = -NoPert option)`ODT_PERTINENCE=No` (before running mkodt)
`MKMK_LST_RTV`	To give a runtime path concatenation, set the MKMK_LST_RTV variable before running mkodt ( = -r option)
`PATH_TEST`	To add a concatenation to the PATH (and LIBPATH or LD_LIBRARY_PATH or SHLIB_PATH) before running the ODT.
`ODT_MAX_TIME`	Set this variable to change the max_time value.
`ODT_MAX_TIME_COEF`	Set this variable to change the max_time value: max_time=max_time*ODT_MAX_COEFF/100
`MKODT_SUPENV (VPM)`	Set this variable to use environment extension; This variable must contain a shell-script path that will be run before the ODT shell-script. If this variable is not set, mkodt looks for mkodt_supenv_($ADL_FR_CATIA) file in the PATH.
`OPTION_FOR_SETCATENV`	Set this variable to add options to setcatenv (set the CATIA environment)

[Top]

Test Results: mkodt Output

The mkodt command generates two output files in the Output/$OS directory. These files are:

xxx.traces: contains traces generated by the shell script.
xxx.mkodt_result: contains result of the ODT replay. The file format is:
```
FrameworkName -f ODTName ReturnCode date ? ODTType Pertinence Elapsed_time max_time
```
where:
- ODTType = S if the ODT is a Switch ODT, otherwise ODTType = .
- Pertinence = 0 if the ODT is not pertinent, otherwise ODT is pertinent
- max_time = . if the max_time value is not modified in the ODT

[Top]

Test shell script creation

Available commands in a test shell scriptj

SetOdtParam

A shell can include the SetOdtParam instruction to control some aspects of its execution.

SetOdtParam max_time=xx

max_time is the maximum time allowed for test to be completed. The default value of max_time is 5 minutes. max_time can not exceed 60 minutes. If a test exceeds this max_time, the corresponding process is killed and the ODT exit with a return code 99.

SetOdtParam USER=xxx

This instruction is used to specify the user (xxx) when the ODT will be replayed.

SetOdtParam Replay_xxxx=NO (where xxx is an OS name: AIX, SunOS, HP-UX, Unix, Windows_NT, aix_a, solaris_a, hpux_b or intel_a)

This instruction indicates that the current test object must not be run on the given operating system - this property is useful when all test objects are run automatically and not by hand. More than one such instruction can be written in a shell.

SetOdtParam Replay_xxxx=NO (where xxx is a JRE name: msjre_a, ibmjre_a, sgijre_a or hpjre_a)

This instruction indicates that the current test object must not be run on the given Java RunTime Environment () - this property is useful when all test objects are run automatically and not by hand. More than one such instruction can be written in a shell (see also the ADL_ODT_JRE environment variable).

SetOdtParam TYPE=JAVABATCH

This instruction type the ODT as a java ODT. It will create the minimum java environment updating the PATH and the CLASSPATH. This line must be present in every java ODTs.

SetOdtParam TYPE=xxx

This instruction type the ODT, that is to say that this ODT can be selected in a Release by setting the environment variable ReplayExcluType.

Example:

If the ODT is:
SetOdtParam TYPE=MonTYPE
exit $
if in the Release, ReplayExcludType is set to MonTYPE, this ODT will not be replayed.

This instruction is used in Product Release to select ODTs to replay.

Example:

in a product Release P1: set ReplayExckudType=TYPE1!TYPE2 (on NT) or export ReplayExcluType=TYPE1&TYPE2 on UNIX.

This Release P1 is not going to replay ODT that contain:

SetOdtParam TYPE=TYPE1

Or / And:

SetOdtParam TYPE=TYPE2

WhichDir

This command is used to find a directory or a file in the workspace concatenation ( ADL_ODT_CONCATENATION).

This command will be used to add files (.zip, ,jar, ...) to the CLASSPATH environment variable already set.

ODTInit

This command can be used in ODTs that contain an initialization step; indeed, some ODTs could use the same data, for example, the same Part. In a replay, this command will factorize the initialization step….

To use this command, you have to create a shell-script, named ODTInit_logicname.sh in the ADL_ODT_IN directory of the test framework; This shell will create the output data that will be used in the others ODTs. To use the output of the ODTInit_logicname.sh file, you have to start the ODT shell-script with:
ODTInit logicname
The purpose of this command is to gain time on the ODT replay.

JavaReplay

This command must be used to launch your apllet or java application with in arguments all the arguments you would give to java or jview.

This command will launch the java you choosed (by setiing the ADL_ODT_JRE).

What's Forbidden in a Test Shell Script

Forbidden	Authorized
#!/bin/ksh	#
No export of PATH, LIBPATH and ADL_ODT_xxx	-
Don't use the rm and mv commands	-
Don't use "/" in the PATH	Use $ADL_ODT_SLASH
Don't use ":" in the PATH	Use $ADL_ODT_SEPARATOR
Don't run process in background (process& )	-
No file Path: /u/lego/CXR3/BSF/…	Use ADL_ODT_xxx variables
Don't use /tmp	Use ADL_ODT_TMP
Don't use /dev/null	Use ADL_ODT_NULL
-	Test the return code of your modules
return xx	exit xx
../../InputData (relative Path)	Use ADL_ODT_xxx variables
/dir/WS/OS/code/bin/LOAD	LOAD
No double bracket [[…]]	Use […]

[Top]

References

[1]	mkodt Options and Variables
[Top]

History

Version: 1 [March 2001]	Document created
