Consuming the ENOVWSProdStructCpp CAA Web Service
Using the ENOVWSProdStructCpp CAA Web service on ENOVIA LCA V5 |
| Use Case |
Abstract
This article discusses the CAAENOVWSProdStructCppUseCase
use case. It describes how to use the Java client binding that can be generated
using the Axis WSDL2Java emitter in order to consume the ENOVWSProdStructCpp
CAA Web service. It provides a sample usage scenario that demonstrates
how to log on to ENOVIA LCA V5.
|
What You Will Learn With This Use Case
This use case is intended to show you how you to write a client application that
consumes the ENOVWSProdStructCpp CAA Web service. More specifically, you will learn
how to:
- Generate the Java client binding for the ENOVWSProdStructCpp CAA Web service,
- Write a wrapper class that instantiates the generated proxy, configures it,
and uses it to remotely invoke methods on the CAA Web service,
- Write a class that demonstrates a sample usage scenario for ENOVWSProdStructCpp
CAA Web service, using the wrapper class mentioned above.
This article also provides guidance on how to build and run the sample client
application using IRAD (IBM Rational Application Developer) 6.0,
although any other Java IDE (Integrated Development Environment) or stand-alone
JDK/JRE (Java Development Kit/Java Runtime Environment) could be used for that purpose.
[Top]
The CAAENOVWSProdStructCppUseCase Use Case
CAAENOVWSProdStructCppUseCase is a use case of the CAAENOVWS.edu framework that
illustrates capabilities of the ENOVWSProdStructCpp CAA Web service.
[Top]
What Does CAAENOVWSProdStructCppUseCase Do
The sample usage scenario performs the following actions:
- Query for PRC, return the string prcUUID,
- Create two parts, get the string partVersionUUIDs,
- Add the first part version as a child of the parent PRC. Get the partInstanceUUID
for the instance created,
- Expand the created product structure, displaying the result,
- Delete the child instances and part versions created in this use case.
[Top]
Where To Find the CAAENOVWSProdStructCppUseCase Code
The CAAENOVWSProdStructCppUseCase use case is made of several classes located
in the CAAENOVWSAxis1_1Client.mj and CAAENOVWSAxis1_1ClientGen.mj modules of the
CAAENOVWS.edu framework. The related resources can be found at the following location
:
Windows: <Install>\CAAENOVWS.edu\CAAENOVWSAxis1_3Client.mj\src
Unix: <Install>/CAAENOVWS.edu/CAAENOVWSAxis1_3Client.mj/src
|
<Install>: the directory where the CAA CD-ROM is installed
The sample Java resources generated using the Axis WSDL2Java emitter are delivered
at the following location (Windows):
<Source>\<Output-package>\CATServiceExceptionType.java
<Source>\<Output-package>\ENOVIA.java
<Source>\<Output-package>\ENOVIA_VPMPartVersion.java
<Source>\<Output-package>\ENOVIA_VPMProductRootClass.java
<Source>\<Output-package>\ENOVWSProdStructCpp.java
<Source>\<Output-package>\ENOVWSProdStructCppLocator.java
<Source>\<Output-package>\IProdStructWS.java
<Source>\<Output-package>\IProdStructWSBindingStub.java
<Source>\<Output-package>\SelectExpression.java
<Source>\<Output-package>\Status.java
<Source>\<Output-package>\StatusArrayType.java
<Source>\<Output-package>\StringArrayType.java
<Source>\<Output-package>\VPMBOPartInstance.java
<Source>\<Output-package>\VPMBOProductInstance.java
<Source>\<Output-package>\holders\ENOVIAHolder.java
<Source>\<Output-package>\holders\StringArrayTypeHolder.java
|
<Source>: <Install>\CAAENOVWS.edu\CAAENOVWSAxis1_3ClientGen.mj\src<Output-package>: com\dassault_systemes\caaenovws\caaenovwsaxis1_3client\generated
(based on the output package value specified when using the WSDL2Java emitter).
The CAAENOVWSAxis1_3Client.mj module contains the other following resources:
(Windows):
<Source>\<Root-package>\CAAENOVWSClient.java
<Source>\<Root-package>\CAAENOVWSProdStructCppUseCase.java
<Source>\<Root-package>\CAAENOVWSProdStructCppWrapper.java
|
<Source>: Same as above<Root-package>: com\dassault_systemes\caaenovws\caaenovwsaxis1_3client
(based on the output package value specified when using the WSDL2Java emitter).
This use case has a dependency on the CustomSessionHandler class.
See [1] for details on how to accesss it. It also has
a dependency on the CAAENOPosAppBinderImplAxis1_1Client use case. See [2]
for details on where to find the related resources.
[Top]
How to Launch CAAENOVWSProdStructCppUseCase

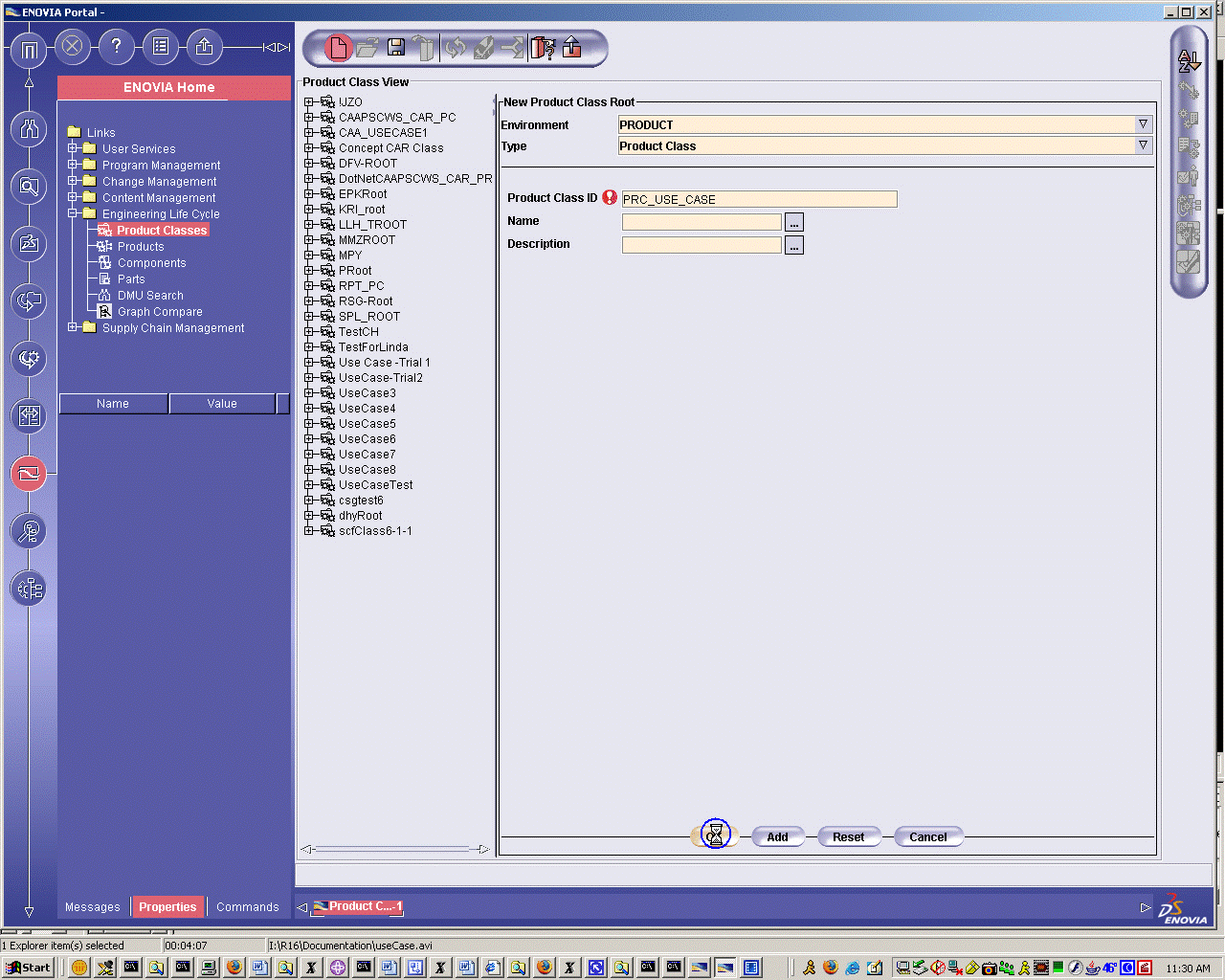

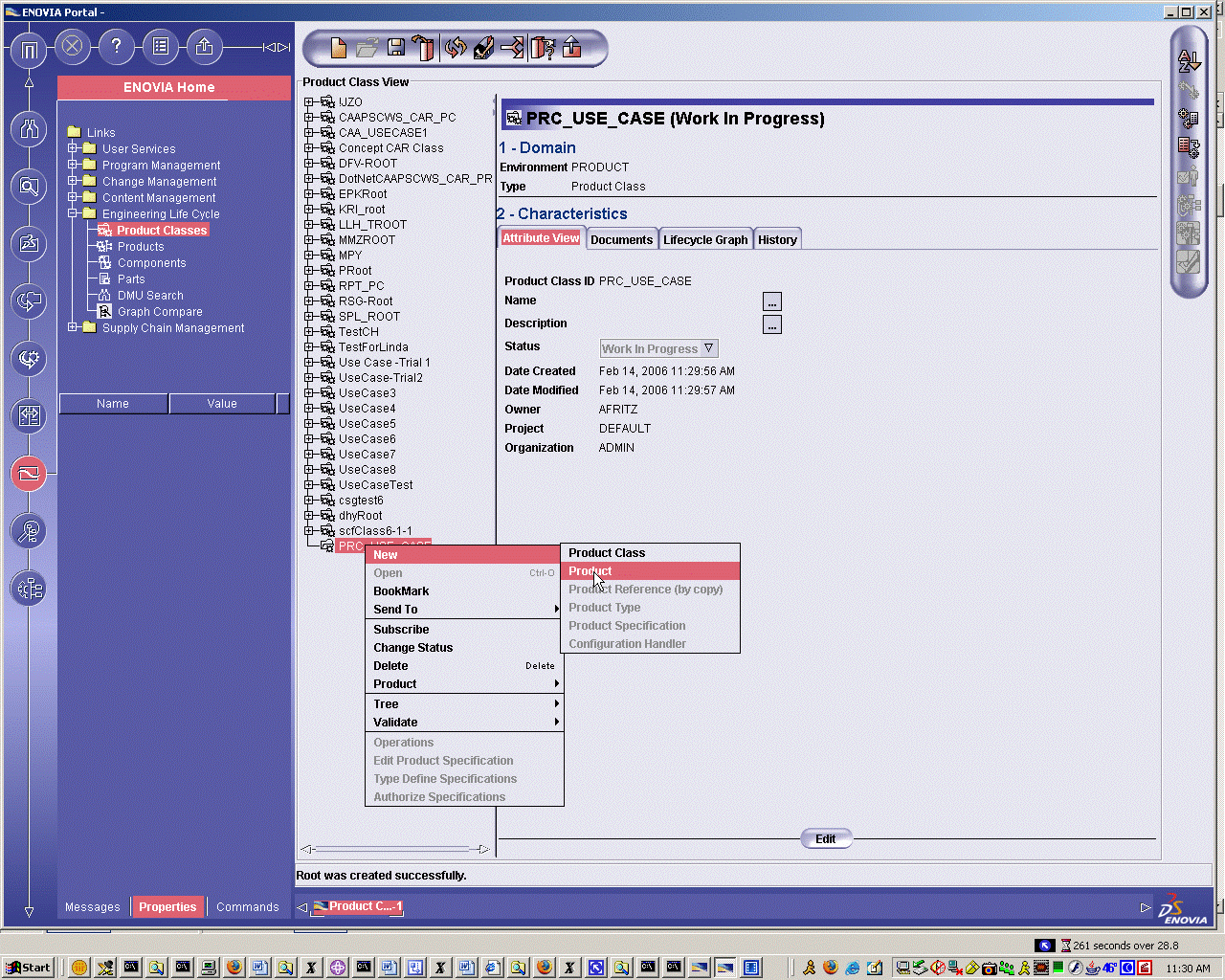

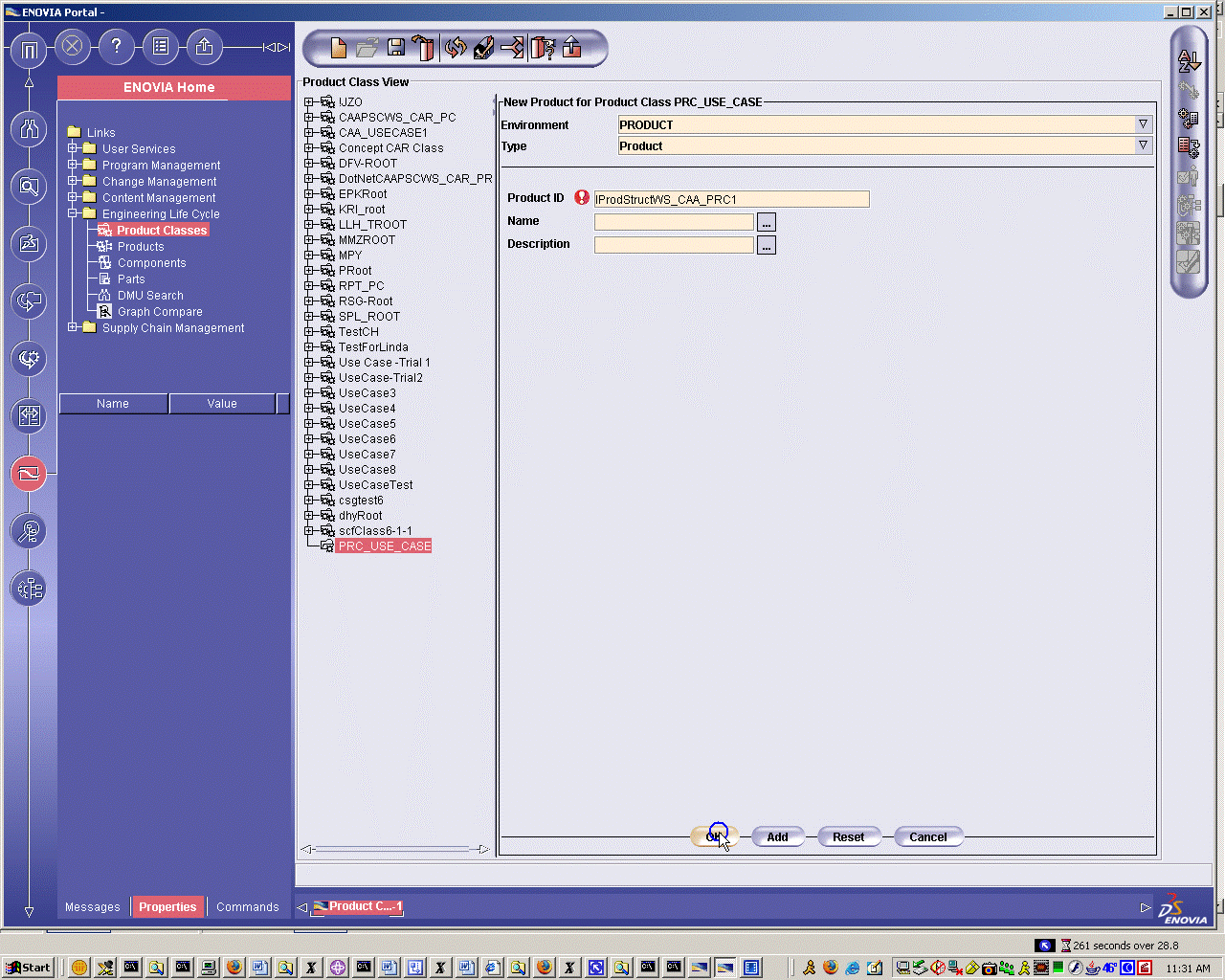

Prior to running this use case you must login to ENOVIA LCA
V5 and create a Product class (name of your choosing) and then create a Product with the Product ID = "IProdStructWS_CAA_PRC1".
To launch the CAAENOVWSProdStructCppUseCase use case, you will need to set up
a buildtime environment, build the code along with its prerequisites, set up a runtime
configuration and then execute the use case. You can see [3]
for details on how to perform these steps within the IRAD 6 environment.
There is no prerequisites to running this use case.
The sample usage scenario delivered within this use case is launched from the
CAAENOVWSClient class. It defines a main method that takes several options as parameters,
as described below:
-w <URI> -e <ENOVIA username> -u <Basic Authentication
username> -p <Basic Authentication password> -t ENOVWSProdStructCpp
|
<URI>: is the root URI of the Web application where
the ENOVWSProdStructCpp CAA Web service is deployed, <ENOVIA username>: is a valid username declared in the
ENOVIA P&O database, <Basic Authentication Username> and <Basic Authentication
Password>: are a valid set of credentials for authentication on the
remote Web server.
Here follows a sample command, to be updated with your own environment configuration:
-w http://stophe1dsy.dsy.ds:9080/B17 -e cjk -u wpsadmin -p wpsadmin
-t ENOVWSProdStructCpp |
[Top]
Step-by-step
The following section first explains how to generate the Java client binding
for the ENOVWSProdStructCpp CAA Web service demonstrated. The remaining sections
then describe the code that must be written in order to consume this Web service:
- Creating the Java Client Binding
- Instantiating and Configuring the Generated Proxy
- Create Part
- Add Child Part
- Expand Product Structure
- Delete Child Part
- Helper Functions
- Sample Usage Scenario
[Top]
Creating the Java Client Binding
See [4] for details on how to configure the WSDL2Java
emitter environment. Once done, you can execute the following command in order to
generate the Java client binding for the ENOVWSProdStructCpp CAA Web service:
%JDK_HOME%\bin\java org.apache.axis.wsdl.WSDL2Java -o C:\CAAENOVWS\src
-p com.dassault_systemes.caaenovws.caaenovwsaxis1_1clientgen.generated http://karindsy.dsy.ds:9080/V5R16/wsdl?service=urn:com:dassault_systemes:ENOVWSProdStructImpl:ENOVWSProdStructImpl:ENOVWSProdStructCpp
|
The server name, port, and context root URI information must be updated to match
the server where the CAA Web service has been deployed. The list of generated resources
is available from the above section: "Where To Find the CAAENOVWSProdStructCppUseCase
Code".
[Top]
Instantiating and Configuring the Generated Proxy
In order to be able to consume the ENOVWSProdStructCpp CAA Web service implementation
that has been deployed on a target server, you need to retrieve an instance of the
IProdStructWSBindingStub generated class (also often referred to as
the proxy). It's a common best practice to manipulate an instance
through its dedicated interface whenever available. The WSDL2Java emitter produces
an interface that is implemented by the IProdStructWSBindingStub class:
IProdStructWS. It describes the methods available on the remote CAA Web service.
Although the IProdStructWSBindingStub class can be directly instantiated
using its own set of constructors, the Axis User's Guide recommends to discard this
approach. Instead, the recommended approach is to use another generated class for
that purpose: ENOVWSProdStructCppLocator. It implements the ENOVWSProdStructCpp
interface.
The following code describes how to instantiate the generated proxy. Such
proxy is used in order to marshall method calls and objects to SOAP requests,
and to unmarshall SOAP responses to objects. This proxy must be configured
in order to manage authentication on the remote Web server, timeout, and session
management. Maintaining the HTTP session state is mandatory when consuming
ENOVIA LCA V5 CAA Web services.
|
//**
*
Class to demonstrate a sample usage scenario of the ENOVWSProdStructCpp
CAA
*
Web service.
*/
public class CAAENOVWSProdStructCppUseCase {
private String
uri = null;
private String
credUser = null;
private String
credPwd = null;
public CAAENOVWSProdStructCppUseCase(String
uri,
String credUser,
String credPwd)
{
this.uri = uri;
this.credUser = credUser;
this.credPwd = credPwd;
}
public void
runSampleUsageScenario(String enoviaUser) {
boolean success
= false;
Exception
exception = null;
CAAENOPosApplicationBinderImplWrapper
binderWrapper =
null;
SessionToken
sessionToken =
null;
try {
//
------------------------------------------------------------
// Step 1 - Instantiate and configure the proxy
//
------------------------------------------------------------
System.out.println("STEP
1: Instantiating and configuring CAA Web service proxy");
String clientId = new Long(System.currentTimeMillis()).toString();
int timeOut
= 360000;
// Instantiate the wrapper client classes
binderWrapper =
new CAAENOPosApplicationBinderImplWrapper(clientId,
uri,
credUser, credPwd,
timeOut);
CAAENOVWSQueryCppWrapper queryWrapper
= new
CAAENOVWSQueryCppWrapper(
clientId, uri, timeOut);
CAAENOVWSProdStructCppWrapper prodStructWrapper =
new CAAENOVWSProdStructCppWrapper(
clientId, uri, timeOut);
//code continues....
}
}
|
|
/**
*
Creates a
new proxy
for the ENOVWSProdStructCpp CAA
Web service
*
implementation and
configures it.
*
*
@param clientId
the client
identifier used
to maintain
the session
state
*
accross distinct
proxies
*
@param uri
the root URI of the Web application hosting
the implementation
*
of the ENOVWSProdStructCpp CAA
Web service
*
@param timeOut
the proxy
timeout
*/
public
CAAENOVWSProdStructCppWrapper(String clientId,
String uri,
int timeOut)
{
//
Compute the SOAP endpoint URI value that bounds to the deployed
//
implementation of the ENOVWSProdStructCpp CAA Web service
String
endpoint = uri + "servicerouter?service=" + SERVICE_ID;
//
Retrieve proxy instance
ENOVWSProdStructCppLocator
locator = new ENOVWSProdStructCppLocator();
try {
proxy = locator.getENOVWSProdStructCppPort(new URL(endpoint));
}
catch (MalformedURLException
e) {
e.printStackTrace();
throw new
RuntimeException(
"Invalid SOAP endpoint URI specified for the
ENOVWSProdStructCpp CAA Web service proxy");
}
catch (ServiceException
e) {
e.printStackTrace();
throw new
RuntimeException(
"Unable to instantiate the ENOVWSProdStructCpp CAA
Web service proxy");
}
//
Required for HTTP session state management on the current proxy
((IProdStructWSBindingStub)
proxy).setMaintainSession(true);
if (clientId != null) {
// Used to maintain the HTTP session state accross
distinct proxies
HandlerInfo info = new HandlerInfo();
info.setHandlerClass(CustomSessionHandler.class);
Map handlerConfig = new HashMap();
handlerConfig.put(CustomSessionHandler.CLIENT_ID, clientId);
info.setHandlerConfig(handlerConfig);
HandlerRegistry registry
= locator.getHandlerRegistry();
String portName = locator.getENOVWSProdStructCppPortWSDDServiceName();
QName name = new QName(portName);
List chain = registry.getHandlerChain(name);
chain.add(info);
}
//
Increase the default client time-out
((IProdStructWSBindingStub)
proxy).setTimeout(timeOut);
}
|
(1): in order to maintain the HTTP session state between successive
calls performed using the same proxy instance, the setMaintainSession
method must be used. This is mandatory in the context of ENOVIA LCA V5 CAA Web services,
(2): the default timeout is set to 360 seconds (the value specified
in the code is in milliseconds),
(3): when security is enabled, it is mandatory to set the
username and password attributes on the generated proxy. The
values specified must match a valid set of credentials for the Basic Authentication
mechanism.
[Top]
Create Part
In order to create parts, you may use the following method which is available
through the generated IProdStructWS proxy interface:
public Status createPart(
ENOVIA iObjects,
String iConfigurable,
ENOVIAHolder oObjects) throws RemoteException,CATServiceExceptionType;
|
This method accepts the following parameters:
iObjects |
List of Part Versions to be created |
iConfigurable |
TRUE or FALSE (default of FALSE) |
oObjects |
The successfully created objects are returned |
The following code demonstrates the use of the createPart
method:
/**
*
Creates one
or more part references.
*
*
@param partNumbers
the part numbers
*
@param domain
the part environment domain
*
@param configurable
TRUE or FALSE
*
@return the
ENOVIA result
set
*
@throws Exception
*/
public
ENOVIA createPartRef(String[]
partNumbers,
String domain,
String configurable)
throws Exception
{
System.out.println(">>> Invoking 'createPart' on
ENOVWSProdStructCpp CAA Web service proxy");
if (partNumbers == null) {
throw new
IllegalArgumentException("Part number array is null");
}
else if
(domain == null) {
throw new
IllegalArgumentException("Environment domain is null");
}
else if
(configurable ==
null)
{
throw new
IllegalArgumentException("Configurable flag is null");
}
System.out.println("Environment domain: " + domain);
System.out.println("Configurable part: " + configurable);
for (int i = 0; i < partNumbers.length; i++)
{
System.out.println("Part
number[" + i + "]:
" + partNumbers[i]);
}
//
Create input data
ENOVIA_VPMPartVersion[]
vpmPartVersions =
new ENOVIA_VPMPartVersion[partNumbers.length];
for (int i = 0; i < partNumbers.length; i++)
{
vpmPartVersions[i] =
new ENOVIA_VPMPartVersion();
vpmPartVersions[i].setDomain(domain);
vpmPartVersions[i].setENOVIA_VPMPartMasterV_ID(partNumbers[i]);
}
ENOVIA
input = new ENOVIA();
input.setENOVIA_VPMPartVersion(vpmPartVersions);
ENOVIAHolder
resultSet = new ENOVIAHolder();
//
Invoke method on remote CAA Web service
try {
Status status = proxy.createPart(input,
configurable, resultSet);
System.out.println("Status:
" + status.getStatus());
}
catch (CATServiceExceptionType
e) {
throw e;
}
catch (Throwable
t) {
throw new
Exception("Failed
to create part reference(s)", t);
}
//
Process output data
if (resultSet == null || resultSet.value == null) {
throw new
Exception("Failed
to create part reference(s)");
}
return resultSet.value;
}
|
See [2] for details on the processException
method.
[Top]
Add Child Part
In order to add child parts, you may use the following method which is available
through the generated IProdStructWS proxy interface:
public Status addChildPart(
Identifier iParentId,
IdentifierArrayType iChildIds,
ENOVIAHolder oResult) throws RemoteException,CATServiceExceptionType
|
The method accepts the following parameters:
iParentId |
The identifier of the parent object in ENOVIA LCA V5 |
iChildIds |
The array of child identifiers |
oResult |
The child part instances added to the parent |
The following code demonstrates the use of the
addChildPart method:
| /**
*
Creates one
or more part instances.
The parent
object can
either be
a
*
part instance
or a product root class.
*
*
@param parentUUID
the parent
unique identifier
*
@param partRefUUIDs
the part reference unique
identifier
*
@return the
ENOVIA result
set
*
@throws Exception
*/
public
ENOVIA createPartInst(String
parentUUID, String[]
partRefUUIDs)
throws Exception
{
System.out.println(">>> Invoking 'addChildPart' on
ENOVWSProdStructCpp CAA Web service proxy");
if (parentUUID == null) {
throw new
IllegalArgumentException("Parent UUID is null");
}
else if
(partRefUUIDs ==
null)
{
throw new
IllegalArgumentException(
"Part instance UUID array is null");
}
System.out.println("Parent UUID: " +
parentUUID);
for (int i = 0; i < partRefUUIDs.length; i++)
{
System.out.println("Part
reference UUID[" + i + "]: " +
partRefUUIDs[i]);
}
//
Create input data
Identifier
parentId = CAAENOVWSUtils.toIdentifier(parentUUID);
Identifier[]
partRefIds = CAAENOVWSUtils.toIdentifierArray(partRefUUIDs);
ENOVIAHolder
resultSet = new ENOVIAHolder();
//
Invoke method on remote CAA Web service
try {
Status status = proxy.addChildPart(parentId,
partRefIds, resultSet);
System.out.println("Status:
" + status.getStatus());
}
catch (CATServiceExceptionType
e) {
throw e;
}
catch (Throwable
t) {
throw new
Exception("Failed
to create part instance(s)", t);
}
//
Process output data
if (resultSet == null || resultSet.value == null) {
throw new
Exception("Failed
to create part instance(s)");
}
return resultSet.value;
}
|
[Top]
Expand Product Structure
In order to expand product structure, you may use the following method which
is available through the generated IProdStructWS proxy interface:
public
Status expandProductStructure(
Identifier iObjectId,
SelectExpression iSelect,
int iDepth,
ENOVIAHolder oResult) throws java.rmi.RemoteException,CATServiceExceptionType;
|
This method accepts the following parameters:
iObjectId |
The identifier of the parent object in ENOVIA LCA V5 |
iSelect |
The select Expression for query. see for [5]
details on SelectExpression. |
iDepth |
depth of the structure that needs to be returned (it is -1|0|1). iDepth
= -1 will return all, 0 will return parent (and optionally attached documents),
1 will return first level children. |
oResult |
The child part instances added to the parent |
The following code demonstrates the use of the
expandProductStructure method:
| /**
*
Expands a
product structure.
*
*
@param parentUUID
the parent
unique identifier
*
@param level
the expand
level
*
@param selectExpression
*
@return the
ENOVIA result
set
*
@throws Exception
*/
public
ENOVIA expandProductStructure(String
parentUUID,
int level,
String selectExpression)
throws Exception
{
System.out.println(">>> Invoking 'expandProductStructure' on
ENOVWSProdStructCpp CAA Web service proxy");
if (parentUUID == null) {
throw new
IllegalArgumentException("Parent UUID is null");
}
else if
(level < 0) {
throw new
IllegalArgumentException("Invalid level value");
}
System.out.println("Parent UUID: " +
parentUUID);
System.out.println("Level: " +
level);
//
Create input data
Identifier
parentId = CAAENOVWSUtils.toIdentifier(parentUUID);
SelectExpression
selectExp = new SelectExpression();
selectExp.setValue(selectExpression);
ENOVIAHolder
resultSet = new ENOVIAHolder();
//
Invoke method on remote CAA Web service
try {
Status status = proxy.expandProductStructure(parentId,
selectExp,
level,
resultSet);
System.out.println("Status: " +
status.getStatus());
}
catch (CATServiceExceptionType
e) {
throw e;
}
catch (Throwable
t) {
throw new
Exception("Failed
to expand product structure", t);
}
//
Process output data
if (resultSet == null || resultSet.value == null) {
throw new
Exception("Failed
to expand product structure");
}
return resultSet.value;
}
|
[Top]
Delete Child Part
In order to delete child parts, you may use the following method which is available
through the generated IProdStructWS proxy interface:
public Status
deleteChildPart(
Identifier iParentId,
IdentifierArrayType iChildIds) throws java.rmi.RemoteException,CATServiceExceptionType;
|
This method accepts the following parameters:
iParentId |
The identifier of the parent object in ENOVIA LCA V5 |
iChildIds |
The array of child identifiers |
The following code demonstrates the use of the
deleteChildPart method:
| /**
*
Deletes one
or more part instances.
*
*
@param parentUUID
the parent
unique identifier
*
@param partInstUUIDs
the part instance unique
identifiers
*
@throws Exception
*/
public
void deletePartInst(String
parentUUID, String[]
partInstUUIDs)
throws Exception
{
System.out.println(">>> Invoking 'deleteChildPart' on
ENOVWSProdStructCpp CAA Web service proxy");
if (parentUUID == null) {
throw new
IllegalArgumentException(
"Parent unique identifier is null");
}
else if
(partInstUUIDs ==
null)
{
throw new
IllegalArgumentException(
"Part instance UUID array is null");
}
System.out.println("Parent UUID: " +
parentUUID);
for (int i = 0; i < partInstUUIDs.length; i++)
{
System.out.println("Part
instance UUID[" + i + "]: " +
partInstUUIDs[i]);
}
//
Create input data
Identifier
parentId = CAAENOVWSUtils.toIdentifier(parentUUID);
Identifier[]
partInstIds =
CAAENOVWSUtils.toIdentifierArray(partInstUUIDs);
//
Invoke method on remote CAA Web service
try {
Status status = proxy.deleteChildPart(parentId,
partInstIds);
System.out.println("Status:
" + status.getStatus());
}
catch (CATServiceExceptionType
e) {
throw e;
}
catch (Throwable
t) {
throw new
Exception("Failed
to delete part instance(s)", t);
}
}
|
[Top]
Helper Functions
The CAAENOVWSUtils.displayResults method can be found at:
<Install>\<Source>\<Package>\CAAENOVWSUtils.java
|
-
<Install>: the root directory where the CAA CD-ROM is installed,
-
<Source>: \CAAENOVWS.edu\CAAENOVWSAxis1_3Client.mj\src,
-
<Package>\com\dassault_systemes\caaenovws\caaenovwsaxis1_3client.
Here is a sample of the source:
public
static void
displayResults(ENOVIA resultSet,
int maxDisplay)
{
if (resultSet
== null) {
throw new
IllegalArgumentException("ENOVIA result set is null");
}
System.out.println(
"Displaying first "
+ maxDisplay
+ " results for
each object type found in the ENOVIA result set");
ENOVIA_Action_Deliverable[] actionDeliverable
=
resultSet.getENOVIA_Action_Deliverable();
if (actionDeliverable
!= null) {
System.out.println(
"Number of ENOVIA_Action_Deliverable objects: "
+ actionDeliverable.length);
for (int i = 0;
i < actionDeliverable.length &&
i < maxDisplay;
i++) {
ENOVIA_Action_Deliverable current
= actionDeliverable[i];
System.out.println("ENOVIA_Action_Deliverable["
+ i + "]:");
System.out.println("\tCATJsyUUID:
" + current.getCATJsyUUID());
System.out.println("\tDomain:
" + current.getDomain());
System.out.println(
"\tAFLActionV_abstract: "
+ current.getENOVIA_AFLActionV_abstract());
System.out.println(
"\tAFLActionV_creator: "
+ current.getENOVIA_AFLActionV_creator());
System.out.println(
"\tAFLActionV_description: "
+ current.getENOVIA_AFLActionV_description());
System.out.println(
"\tAFLActionV_name: "
+ current.getENOVIA_AFLActionV_name());
System.out.println(
"\tAFLActionV_priority: "
+ current.getENOVIA_AFLActionV_priority());
System.out.println(
"\tAFLActionV_status: "
+ current.getENOVIA_AFLActionV_status());
System.out.println(
"\tAFLActionV_user: "
+ current.getENOVIA_AFLActionV_user());
System.out.println(
"\tAFLActionC_created: "
+ current.getENOVIA_AFLActionC_created());
System.out.println(
"\tAFLActionC_modified: "
+ current.getENOVIA_AFLActionC_modified());
System.out.println(
"\tAFLActionV_actual_start_date: "
+ current.getENOVIA_AFLActionV_actual_start_date());
System.out.println(
"\tAFLActionV_end_date: "
+ current.getENOVIA_AFLActionV_end_date());
System.out.println(
"\tAFLActionV_start_date: "
+ current.getENOVIA_AFLActionV_start_date());
}
}
ENOVIA_Action_Design[] actionDesign
=
resultSet.getENOVIA_Action_Design();
if (actionDesign
!= null) {
System.out.println(
"Number of ENOVIA_Action_Design objects: "
+ actionDesign.length);
for (int i = 0; i < actionDesign.length &&
i < maxDisplay; i++) {
ENOVIA_Action_Design current
= actionDesign[i];
System.out.println("ENOVIA_Action_Design["
+ i + "]:");
System.out.println("\tCATJsyUUID:
" + current.getCATJsyUUID());
System.out.println("\tDomain:
" + current.getDomain());
System.out.println(
"\tAFLActionV_abstract: "
+ current.getENOVIA_AFLActionV_abstract());
System.out.println(
"\tAFLActionV_creator: "
+ current.getENOVIA_AFLActionV_creator());
System.out.println(
"\tAFLActionV_description: "
+ current.getENOVIA_AFLActionV_description());
System.out.println(
"\tAFLActionV_name: "
+ current.getENOVIA_AFLActionV_name());
System.out.println(
"\tAFLActionV_priority: "
+ current.getENOVIA_AFLActionV_priority());
System.out.println(
"\tAFLActionV_status: "
+ current.getENOVIA_AFLActionV_status());
System.out.println(
"\tAFLActionV_user: "
+ current.getENOVIA_AFLActionV_user());
System.out.println(
"\tAFLActionC_created: "
+ current.getENOVIA_AFLActionC_created());
System.out.println(
"\tAFLActionC_modified: "
+ current.getENOVIA_AFLActionC_modified());
System.out.println(
"\tAFLActionV_actual_start_date: "
+ current.getENOVIA_AFLActionV_actual_start_date());
System.out.println(
"\tAFLActionV_end_date: "
+ current.getENOVIA_AFLActionV_end_date());
System.out.println(
"\tAFLActionV_start_date: "
+ current.getENOVIA_AFLActionV_start_date());
}
}
ENOVIA_Action_Documentation[] actionDocumentation
=
resultSet.getENOVIA_Action_Documentation();
if (actionDocumentation
!= null) {
System.out.println(
"Number of ENOVIA_Action_Documentation objects:
"
+ actionDocumentation.length);
for (int i = 0;
i < actionDocumentation.length &&
i < maxDisplay;
i++) {
ENOVIA_Action_Documentation current
= actionDocumentation[i];
System.out.println("ENOVIA_Action_Documentation["
+ i + "]:");
System.out.println("\tCATJsyUUID:
" + current.getCATJsyUUID());
System.out.println("\tDomain:
" + current.getDomain());
System.out.println(
"\tAFLActionV_abstract: "
+ current.getENOVIA_AFLActionV_abstract());
System.out.println(
"\tAFLActionV_creator: "
+ current.getENOVIA_AFLActionV_creator());
System.out.println(
"\tAFLActionV_description: "
+ current.getENOVIA_AFLActionV_description());
System.out.println(
"\tAFLActionV_name: "
+ current.getENOVIA_AFLActionV_name());
System.out.println(
"\tAFLActionV_priority: "
+ current.getENOVIA_AFLActionV_priority());
System.out.println(
"\tAFLActionV_status: "
+ current.getENOVIA_AFLActionV_status());
System.out.println(
"\tAFLActionV_user: "
+ current.getENOVIA_AFLActionV_user());
System.out.println(
"\tAFLActionC_created: "
+ current.getENOVIA_AFLActionC_created());
System.out.println(
"\tAFLActionC_modified: "
+ current.getENOVIA_AFLActionC_modified());
System.out.println(
"\tAFLActionV_actual_start_date: "
+ current.getENOVIA_AFLActionV_actual_start_date());
System.out.println(
"\tAFLActionV_end_date: "
+ current.getENOVIA_AFLActionV_end_date());
System.out.println(
"\tAFLActionV_start_date: "
+ current.getENOVIA_AFLActionV_start_date());
}
}
//rest of the source omitted for clarity }
|
[Top]
Sample Usage Scenario
The sample usage scenario consumes following CAA web services:
-
ENOVWSProdStructCpp CAA web service to create and expand a
product structure in ENOVIA LCA V5. See this document.
-
ENOPosApplicationBinderImpl CAA web service to logon
on/out ENOVIA LCA V5. See [
2
] for details.
-
ENOVWSQueryCpp CAA
web service to query
objects of ENOVIA
LCA V5. See [
6
] for details
This sample client assumes that a Product Root Class has been created using the
ENOVIA V5 LCA product, and that the V_ID must be "IProdStructWS_CAA_PRC1".
The following code demonstrates a sample usage scenario for the ENOVWSProdStructCpp
CAA Web service. It is a partial example, for full source refer to:
<Install>\<Source>\<Root-package>\CAAENOVWSProdStructCppUseCase.java |
-
<Install>: the root directory where the CAA CD-ROM is installed,
-
<Source>: \CAAENOVWS.edu\CAAENOVWSAxis1_3Client.mj\src,
<Root-package>: com\dassault_systemes\caaenovws\caaenovwsaxis1_3client
(based on the output package value specified when using the WSDL2Java emitter).
// COPYRIGHT DASSAULT SYSTEMES 2006
//
=============================================================================
// This class provides a
sample use case scenario that illustrates the
// ENOVWSProdStructCpp CAA Web service.
//
=============================================================================
package com.dassault_systemes.caaenovws.caaenovwsaxis1_3client;
import com.dassault_systemes.caaenovws.caaenovwsaxis1_3client.generated.CATServiceExceptionType;
import com.dassault_systemes.caaenovws.caaenovwsaxis1_3client.generated.ENOVIA;
import com.dassault_systemes.caaplmsecurity.caaenoposappbinderaxis1_3client.CAAENOPosApplicationBinderImplWrapper;
import com.dassault_systemes.caaplmsecurity.caaenoposappbinderaxis1_3client.generated.SessionToken;
/**
*
Class to demonstrate a sample usage scenario of the ENOVWSProdStructCpp
CAA
*
Web service.
*/
public class CAAENOVWSProdStructCppUseCase {
private String
uri = null;
private String
credUser = null;
private String
credPwd = null;
public CAAENOVWSProdStructCppUseCase(String
uri,
String credUser,
String credPwd)
{
this.uri = uri;
this.credUser = credUser;
this.credPwd = credPwd;
}
public void
runSampleUsageScenario(String enoviaUser) {
boolean success
= false;
Exception
exception = null;
CAAENOPosApplicationBinderImplWrapper
binderWrapper =
null;
SessionToken
sessionToken =
null;
try {
//
------------------------------------------------------------
// Step 1 - Instantiate and configure the proxy
//
------------------------------------------------------------
System.out.println("STEP
1: Instantiating and configuring CAA Web service proxy");
String clientId = new Long(System.currentTimeMillis()).toString();
int timeOut
= 360000;
// Instantiate the wrapper client classes
binderWrapper =
new CAAENOPosApplicationBinderImplWrapper(clientId,
uri,
credUser, credPwd,
timeOut);
CAAENOVWSQueryCppWrapper queryWrapper
= new
CAAENOVWSQueryCppWrapper(
clientId, uri, timeOut);
CAAENOVWSProdStructCppWrapper prodStructWrapper =
new CAAENOVWSProdStructCppWrapper(
clientId, uri, timeOut);
//
------------------------------------------------------------
// Step 2 - Open session with ENOVIA LCA V5
//
------------------------------------------------------------
System.out.println("--------------------------------------------------------------------------------");
System.out.println("STEP
2: Opening session with ENOVIA LCA V5");
System.out.println("--------------------------------------------------------------------------------");
String[] userContexts = binderWrapper.getUserContexts(enoviaUser);
System.out.println("Found
" + userContexts.length
+ "
context(s) in database");
System.out.println("Displaying
list of available contexts:");
String firstContext
= new
String();
for (int i = 0; i < userContexts.length; i++)
{
System.out.println("Context["
+ i + "]: "
+ userContexts[i]);
}
firstContext =
(String)userContexts[0];
System.out.println("\n--------------------------------------------------------------------------------");
System.out.println("STEP
3: Logging on to ENOVIA LCA V5");
System.out.println("--------------------------------------------------------------------------------");
if (userContexts.length
== 0) {
throw new
Exception("No
context found for the user specified");
}
sessionToken =
binderWrapper.login(firstContext);
//
------------------------------------------------------------
// Step 3 - Look up for product
//
// -- IProdStructWS_CAA_PRC1
//
------------------------------------------------------------
System.out.println("--------------------------------------------------------------------------------");
System.out.println("STEP
3: Searching for product");
System.out.println("--------------------------------------------------------------------------------");
String productId = "IProdStructWS_CAA_PRC1";
StringBuffer xmlFilter
= new
StringBuffer();
xmlFilter.append("<?xml
version=\"1.0\" encoding=\"UTF-8\"?>");
xmlFilter.append("<FILTER
CASESENSITIVE=\"TRUE\">");
xmlFilter.append("<SELECT>");
xmlFilter.append("<OBJECT
DOMAIN=\"PRODUCT\" NAME=\"ENOVIA_VPMProductRootClass\"
>");
xmlFilter.append("<ATTRIBUTE
NAME=\"ENOVIA_VPMProductRootClass.V_ID\" />");
xmlFilter.append("</OBJECT>");
xmlFilter.append("</SELECT>");
xmlFilter.append("<WHERE>");
xmlFilter.append("<FILTER_CONDITION
OPERATOR=\"AND\">");
xmlFilter.append("<ATTRIBUTE_FILTER>");
xmlFilter.append("<EXPRESSION
OP=\"LIKE\" VALUE=\"" +
productId + "\">");
xmlFilter.append("<ATTRIBUTE
NAME=\"ENOVIA_VPMProductRootClass.V_ID\" />");
xmlFilter.append("</EXPRESSION>");
xmlFilter.append("
</ATTRIBUTE_FILTER>");
xmlFilter.append("</FILTER_CONDITION>");
xmlFilter.append("</WHERE>");
xmlFilter.append("<ORDERBY>");
xmlFilter.append("ENOVIA_VPMProductRootClass.V_ID");
xmlFilter.append("</ORDERBY>");
xmlFilter.append("</FILTER>");
ENOVIA queryResultSet
= queryWrapper.queryObjects(xmlFilter.toString());
String[] productUUIDs = queryWrapper.getENOVIA_VPMProductRootClassUUIDs(queryResultSet);
if (productUUIDs.length
== 0) {
throw new
Exception("Failed
to find product");
} else if (productUUIDs.length
> 1) {
throw new
Exception(
"Invalid state: more than one product matched the
input criteria");
}
String productUUID = productUUIDs[0];
CAAENOVWSUtils.displayResults(queryResultSet, 1);
}
//rest of the source omitted for clarity
}
|
[Top]
In Short
This use case explains how to use the Java client binding generated using the
Axis WSDL2Java emitter in order to consume the ENOVWSProdStructCpp CAA Web service.
It also gives an overview of the methods available for that particular CAA Web service:
-
createPart
-
addChildPart
-
expandProductStructure
-
deleteChildPart
-
deletePart
[Top]
References
History
| Version: 1 [May 2005] |
Document created |
| [Top] |
Copyright © 2005, Dassault Systèmes. All rights reserved.
