3D PLM Enterprise Architecture

User Interface - Dialogs

Using Callbacks to Trigger Actions

How to associate actions with controls
Technical Article

Abstract

The controls of your windows are merely designed to support user interactions and choices. The end user can select an item in a list, such as a file, push on to a push button, select a quantity using a slider or a spinner, and so forth. To convey the user choice to your application, you will use callbacks. When a given control is activated by the end user, it sends a notification which reflects its modification or state. If you have asked to react to this control for this notification using the callback mechanism and if you have coded a method to execute when such a notification is sent, this method will be executed each time the given notification is emitted by the control.


Overview

The dialog window class usually aggregates by reference the different controls it contains. When the dialog window Build method instantiates the controls, it sets the parent of this control. This parent must be the control container. This parent has a dual meaning. It is the containment parent, but also the command parent. The containment parent is the object that physically contains the control on the display [1]. The command parent is the object to which the control will send the notifications that correspond to the events happening to it. Since all dialog objects are instances of classes that derive from CATDialog which itself derive from CATCommand, each of these instances occupies a node in the command tree structure [2]. This enables you to use the Send/Receive communication protocol between commands to convey the notifications sent by your controls to the appropriate class that holds the corresponding method to execute. These methods can't be hold by the control itself, because it is just instantiated from a supplied class.

For example, consider the part of a dialog window shown below:


It contains two frames named Axis and Bottom. Assume that these two frames have the dialog window as parent. The Axis frame contains three controls: the Reverse push button, the Normal to Surface check button, and the disabled editor displaying No selection. These three controls have the Axis frame as parent because they are contained in this frame. A pointer to the Axis frame were passed as the first argument of their constructor. Consequently they also have the Axis frame as command parent.

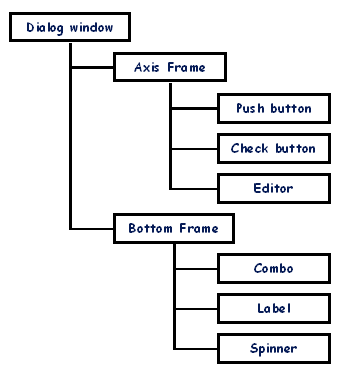

Containment Tree Structure Command Tree Structure

Nevertheless, this command parent can be changed afterwards. For example, the dialog window could be set as their command parent to shorten the sent notification path across the command tree structure. This is possible thanks to the SetFather method of CATCommand. Conversely, the containment parent cannot be changed. This is shown below.

Containment Tree Structure Command Tree Structure

[Top]


Using Callbacks

As an example, let's take one of the push buttons of the Burger window. It is instantiated using the following statements:

CATDlgPushButton * pApply;                    // Instantiate the push button
pApply = new CATDlgPushButton(this, "Apply_Push_Button");
...                                          // Set a callback on it
AddAnalyseNotificationCB(pApply,                                 // push button
                         pApply->GetPushBActivateNotification(), // notification
                         (CATCommandMethod)&Burger::labelApply,  // method to trigger
                         NULL);                                  // no data to pass to labelApply

where:

Each time the user pushes on the Apply push button, a activation notification of the Apply push button, instance of the CATDlgPushBActivateNotification class, is emitted, and the callback mechanism is used to trigger the method labelApply. This method has the following signature:

void Burger::labelApply(
        CATCommand           * ipControl,          // push button
        CATNotification      * ipNotification,     // notification
        CATCommandClientData   iUsefulData=NULL);  // no data here

The parameters are those you put as parameters of the method AddAnalyseNotificationCB:

ipControl The pointer to the push button which sets the callback, seen here as a CATCommand (all classes of the Dialog framework derive from the class CATCommand of the System framework)
ipNotification The pointer to the notification emitted by the push button
iUsefulData Data that you can request to pass using this parameter which can be useful to the method to execute. For example, if the control is an editor, you can pass the character string selected.

When the user closes the window into which the control was located, you need to remove all the callbacks set on this control. To do this, in the window destructor, use the method RemoveAnalyseNotificationCB as follows:

RemoveAnalyseNotificationCB(pApply,
                            pApply->GetPushBActivateNotification(),
                            NULL)

[Top]


Creating and Deleting a Transient Dialog Window

You will often need to create a transient window from your main window or from another transient window. Usually, the transient window is the result of a user action on a push button, or a selection in a list displayed in an editor, or whatever scenario which uses a control you can imagine to request from the user the data your application is expecting.

To create and display a transient window, you need to use a callback set on the control you propose to the user. The method called from this callback should then include the instantiation of the transient window. In addition to the different dialog object you will put in this transient window, some of them, when activated, will close the window, whether the data input is complete or the user cancels the data input.

To do this, you need to set callbacks on the controls in the transient window to be able to perform the task appropriate to the user action.

For example, suppose you create a transient window to key in a character string in an editor when the end user has pressed on a push button. Proceed as follows:

...
AddAnalyseNotificationCB(          // set callback on the control to
       pPushButton,                // create the transient window
       pPushButton->GetPushBActivateNotification(),
       (CATCommandMethod)&MyDocument::CreateTransWindow,
       UsefulData);
...
void MyDocument::CreateTransWindow(
                  CATCommand * pCommand,
                  CATNotification * pNotification
                  CATCommandClientData UsefulData) {
  MyTransientWindow * _Window;
  _pWindow = new MyTransientWindow(         // create the transient
                 this,                      // window
                 "Transient_Window_Name",
                 CATDlgWndOK);
  ...
  AddAnalyseNotificationCB(                 // set callback on the
          _pWindow,                         // window when the
          _pWindow->GetDiaOKNotification(), // text is keyed in
          (CATCommandMethod)&MyDocument::MethodOK,
          (void *) _pWindow);
}
...
void MyDocument::MethodOK(                // do what is needed
                  CATCommand * pCommand,  // to retrieve the text
                  CATNotification * pNotification
                  CATCommandClientData UsefulData) {
  ...
  *Text = ((MyTransientWindow *) UsefulData)->
               TransWindowEditor->GetText() ;
  ...
  delete ((MyTransientWindow *) UsefulData); // delete transient window
}

You normally set a callback, for example on a push button of your main window. The method called back when the user presses on this push button creates the transient window with all its stuff. To react to user actions in this window, you set callbacks wherever you need, and especially to react to completion and closing request, that is in these cases:

Note that a single method could be used for cancelling or closing.

[Top]


In Short

Callbacks are used to associate an action to a control activation. When activated the control sends a notification that goes upwards in the command tree structure, that usually matches the dialog containment tree structure. A transient window can be created from a callback method that itself can set callbacks to manage control activation in the transient window.

[Top]


References

[1] Creating Dialog Objects
[2] The Send/Receive Communication Protocol
[Top]

History

Version: 1 [Jan 2000] Document created
