The Physical Types for Structural Analysis

Analysis Solution	Analysis Modeler	The Physical Types for Structural Analysis All the physical types you can use
Technical Article

This article describes the physical types that are defined for structural Analysis. The presented list defined the analysis entities and the basic components included in their definition.

Analysis Entity Name	Super Type	Physical Type	Value Type \| Line Column Layer Number
SAMClamp	AnalysisRestraint	RESTRAINT_DISPLACEMENT
Basic Component	SAMClampDOF	DEGREES_OF_FREEDOM	tk_integer [ 1 , 1 , 1 ]
SAMPivot	AnalysisRestraint	RESTRAINT_DISPLACEMENT
Basic Component	SAMPivotAxis	GENERIC_CHARACTERISTIC	tk_integer [ 1 , 1 , 1 ]
	SAMPivotDirection	GENERIC_CHARACTERISTIC	tk_component [ 3 , 1 , 1 ]
	SAMPivotDOF	DEGREES_OF_FREEDOM	tk_integer [ 1 , 1 , 1 ]
SAMSlidingPivot	AnalysisRestraint	RESTRAINT_DISPLACEMENT
Basic Component	SAMSlidingPivotAxis	GENERIC_CHARACTERISTIC	tk_integer [ 1 , 1 , 1 ]
	SAMSlidingPivotDirection	GENERIC_CHARACTERISTIC	tk_component [ 3 , 1 , 1 ]
	SAMSlidingPivotDOF	DEGREES_OF_FREEDOM	tk_integer [ 1 , 1 , 1 ]
SAMSurfaceSlider	AnalysisRestraint	RESTRAINT_DISPLACEMENT
Basic Component	SAMSurfaceSliderDOF	DEGREES_OF_FREEDOM	tk_integer [ 1 , 1 , 1 ]
SAMSlider	AnalysisRestraint	RESTRAINT_DISPLACEMENT
Basic Component	SAMSliderAxis	GENERIC_CHARACTERISTIC	tk_integer [ 1 , 1 , 1 ]
	SAMSliderDirection	GENERIC_CHARACTERISTIC	tk_component [ 3 , 1 , 1 ]
	SAMSliderDOF	DEGREES_OF_FREEDOM	tk_integer [ 1 , 1 , 1 ]
SAMPinned	AnalysisRestraint	RESTRAINT_DISPLACEMENT
Basic Component	SAMPinnedDOF	DEGREES_OF_FREEDOM	tk_integer [ 1 , 1 , 1 ]
SAMBallJoin	AnalysisRestraint	RESTRAINT_DISPLACEMENT
Basic Component	SAMBallJoinDOF	DEGREES_OF_FREEDOM	tk_integer [ 1 , 1 , 1 ]
SAMRestraint	AnalysisRestraint	RESTRAINT_DISPLACEMENT
Basic Component	SAMRestrainAxis	GENERIC_CHARACTERISTIC	tk_integer [ 1 , 1 , 1 ]
	SAMRestrainDOF	DEGREES_OF_FREEDOM	tk_integer [ 6 , 1 , 1 ]
SAMRestIsostatic	AnalysisRestraint	RESTRAINT_DISPLACEMENT
SAMIsoMaterial	AnalysisMaterial	MATERIAL_ISOTROPIC
AnalysisProperty1D	AnalysisProperty	NONE
AnalysisProperty2D	AnalysisProperty	NONE
AnalysisProperty3D	AnalysisProperty	PROPERTY_SOLID_3D
AnalysisPropertyOthers	AnalysisProperty	NONE
SAMBeam	AnalysisProperty1D	NONE
Basic Component	SAMArea	NONE	tk_double [ 1 , 1 , 1 ]
SAMShell	AnalysisProperty2D	PROPERTY_SHELL_3D
Basic Component	SAMThickness	THICKNESS	tk_double [ 1 , 1 , 1 ]
SAM3DSolid	AnalysisProperty3D	PROPERTY_SOLID_3D
SAMConstrN	AnalysisPropertyOthers	PROPERTY_SOLID_3D
Basic Component	SAMFreeTX	PROPERTY_SOLID_3D	tk_integer [ 1 , 1 , 1 ]
	SAMFreeTY	PROPERTY_SOLID_3D	tk_integer [ 1 , 1 , 1 ]
	SAMFreeTZ	PROPERTY_SOLID_3D	tk_integer [ 1 , 1 , 1 ]
	SAMFreeRX	PROPERTY_SOLID_3D	tk_integer [ 1 , 1 , 1 ]
	SAMFreeRY	PROPERTY_SOLID_3D	tk_integer [ 1 , 1 , 1 ]
	SAMFreeRZ	PROPERTY_SOLID_3D	tk_integer [ 1 , 1 , 1 ]
SAMConnection	AnalysisProperty	NONE
SAMFaceFaceSlider	SAMConnection	PROPERTY_CONSTRAINT_3D_AXIAL
SAMFaceFaceContact	SAMConnection	PROPERTY_CONSTRAINT_3D_CONTACT
Basic Component	SAMContactClearance	GENERIC_CHARACTERISTIC	tk_component [ 0 , 1 , 1 ]
SAMFaceFaceFastened	SAMConnection	PROPERTY_CONSTRAINT_3D_MEAN
SAMDistantRigid	SAMConnection	PROPERTY_CONSTRAINT_3D_RIGID
SAMDistantSmooth	SAMConnection	PROPERTY_CONSTRAINT_3D_MEAN
SAMVirtualPart	AnalysisProperty	NONE
SAMVirPartSmooth	SAMVirtualPart	PROPERTY_CONSTRAINT_3D_MEAN
Basic Component	SAMSmoSlavePoint	GENERIC_CHARACTERISTIC	tk_specobject [ 1 , 1 , 1 ]
SAMVirPartContact	SAMVirtualPart	PROPERTY_CONSTRAINT_3D_CONTACT
Basic Component	SAMConSlavePoint	GENERIC_CHARACTERISTIC	tk_specobject [ 1 , 1 , 1 ]
	SAMVPartContClr	GENERIC_CHARACTERISTIC	tk_double [ 1 , 1 , 1 ]
SAMVirPartRigid	SAMVirtualPart	PROPERTY_CONSTRAINT_3D_RIGID
Basic Component	SAMRigSlavePoint	GENERIC_CHARACTERISTIC	tk_specobject [ 1 , 1 , 1 ]
SAMVirPartRigidSpring	SAMVirtualPart	PROPERTY_SPRING_3D
Basic Component	SAMRigSprSlavePoint	GENERIC_CHARACTERISTIC	tk_specobject [ 1 , 1 , 1 ]
	SAMRigStifAxis	GENERIC_CHARACTERISTIC	tk_integer [ 1 , 1 , 1 ]
	SAMRigStifTranslation	GENERIC_CHARACTERISTIC	tk_component [ 3 , 1 , 1 ]
	SAMRigStifRotation	GENERIC_CHARACTERISTIC	tk_component [ 3 , 1 , 1 ]
SAMVirPartSmoothSpring	SAMVirtualPart	PROPERTY_SPRING_3D
Basic Component	SAMSmoSprSlavePoint	GENERIC_CHARACTERISTIC	tk_specobject [ 1 , 1 , 1 ]
	SAMSmoStifAxis	GENERIC_CHARACTERISTIC	tk_integer [ 1 , 1 , 1 ]
	SAMSmoStifTranslation	GENERIC_CHARACTERISTIC	tk_component [ 3 , 1 , 1 ]
	SAMSmoStifRotation	GENERIC_CHARACTERISTIC	tk_component [ 3 , 1 , 1 ]
SAMPressure	AnalysisLoad	LOAD_PRESSURE
Basic Component	SAMPressureMag	PRESSURE	tk_double [ 1 , 1 , 1 ]
SAMLineicForce	AnalysisLoad	LOAD_LINEIC_FORCE
Basic Component	SAMLineicForceAxis	GENERIC_CHARACTERISTIC	tk_integer [ 1 , 1 , 1 ]
	SAMLineicForceVector	GENERIC_CHARACTERISTIC	tk_component [ 3 , 1 , 1 ]
SAMSurfacicForce	AnalysisLoad	LOAD_SURFACIC_FORCE
Basic Component	SAMSurfacicForceAxis	GENERIC_CHARACTERISTIC	tk_integer [ 1 , 1 , 1 ]
	SAMSurfacicForceVector	GENERIC_CHARACTERISTIC	tk_component [ 3 , 1 , 1 ]
SAMVolumicForce	AnalysisLoad	LOAD_VOLUMIC_FORCE
Basic Component	SAMVolumicForceAxis	GENERIC_CHARACTERISTIC	tk_integer [ 1 , 1 , 1 ]
	SAMVolumicForceVector	GENERIC_CHARACTERISTIC	tk_component [ 3 , 1 , 1 ]
SAMDistributedForce	AnalysisLoad	LOAD_POINT_FORCE
Basic Component	SAMForceAxis	GENERIC_CHARACTERISTIC	tk_integer [ 1 , 1 , 1 ]
	SAMForceVector	POINT_FORCE	tk_component [ 3 , 1 , 1 ]
SAMMoment	AnalysisLoad	LOAD_POINT_MOMENT
Basic Component	SAMMomentAxis	GENERIC_CHARACTERISTIC	tk_integer [ 1 , 1 , 1 ]
	SAMMomentVector	POINT_MOMENT	tk_component [ 3 , 1 , 1 ]
SAMRotationForce	AnalysisLoad	LOAD_ROTATION_FORCE
Basic Component	SAMRotForceGeomPtr	GENERIC_CHARACTERISTIC	tk_specobject [ 1 , 1 , 1 ]
	SAMRotVelocity	ANGULAR_VELOCITY	tk_double [ 1 , 1 , 1 ]
	SAMRotAcceleration	ANGULAR_ACCELERATION	tk_double [ 1 , 1 , 1 ]
SAMTransAcceleration	AnalysisLoad	LOAD_TRANSLATIONAL_ACCELERATION
Basic Component	SAMTransAccelAxis	GENERIC_CHARACTERISTIC	tk_integer [ 1 , 1 , 1 ]
	SAMTransAccelVector	TRANSLATIONAL_ACCELERATION	tk_component [ 3 , 1 , 1 ]
SAMEnforcedDisp	AnalysisLoad	LOAD_ENFORCED_DISPLACEMENT
Basic Component	SAMEnfDispEntityPtr	GENERIC_CHARACTERISTIC	tk_specobject [ 1 , 1 , 1 ]
	SAMEnfDispTransX	TRANSLATION	tk_double [ 1 , 1 , 1 ]
	SAMEnfDispTransY	TRANSLATION	tk_double [ 1 , 1 , 1 ]
	SAMEnfDispTransZ	TRANSLATION	tk_double [ 1 , 1 , 1 ]
	SAMEnfDispRotX	ROTATION	tk_double [ 1 , 1 , 1 ]
	SAMEnfDispRotY	ROTATION	tk_double [ 1 , 1 , 1 ]
	SAMEnfDispRotZ	ROTATION	tk_double [ 1 , 1 , 1 ]
SAMDistributedMass	AnalysisMass	MASS_POINT_MASS
Basic Component	SAMMassMag	POINT_MASS	tk_double [ 1 , 1 , 1 ]
SAMLineicMass	AnalysisMass	MASS_LINEIC_MASS
Basic Component	SAMLineicMassMag	MASS_LINEIC_MASS	tk_double [ 1 , 1 , 1 ]
SAMSurfacicMass	AnalysisMass	MASS_SURFACIC_MASS
Basic Component	SAMSurfacicMassMag	MASS_SURFACIC_MASS	tk_double [ 1 , 1 , 1 ]

Warning :

Some DS structural analysis features do not have always the same explicitation. It depends on the scenario. For example, SAMMoment can have as child :

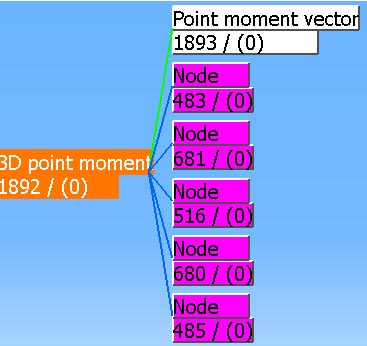

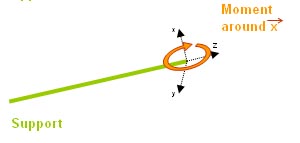

either a POINT_MOMENT characteristic if the direction of the moment is collinear to the selected support of the Moment,

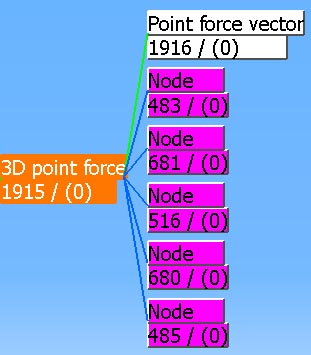

or a POINT_FORCE characteristic in the other case.

User interaction	Explicitation

History

Version: 1 [Jan 2000]	Document created
Version: 2 [April 2007]	Document modified
