This task shows you how to transfer a spool to another document. | |
![]() |
If your design is stored in ENOVIA you should NOT use this option for transferring spools. Instead you should use the Transfer Elements command. | |
![]() |
1. |
In the specifications tree, make
active the document to which you want to transfer the spool, and click the
Create Spool button
![]() |
2. | Select the spool you want to
transfer and then click the Transfer button. The

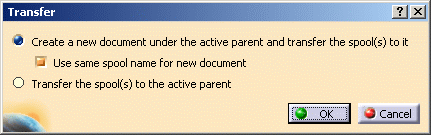

Transfer dialog box
displays.
|
|
3. | Check one of the options - the first option will result in a new document being created under the active document, while the second option transfers the spool to the document you activated earlier. | |
4. | Click OK. The spool is transferred. | |
|
