1.
|
Create a text file, using a text editor like
Wordpad, with column headings as shown below, and define the node sequence,
X/Y/Z coordinates and bend radius of the node points. A sample file is
provided with this application to help you define the text file. The file
name is RunInputNodeData.txt and the location is: ...intel_a\startup\EquipmentandSystems\MultiDiscipline\SampleData.
The file is reproduced below to show you the column headings and layout.
(It has been opened in Excel to make it easier to distinguish columns.

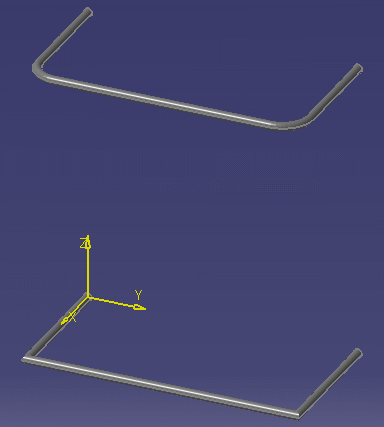

You can see that there are two sets of node numbers, ranging from 1 to
4. Whenever the application reads the node number 1 it will start a new
run. So, based on the file above, two runs will be created. |
