List of Attributes

This task applies to the Structure Functional Design and Ship Structure Detail Design applications.

The following computed attributes and methods are in the StructureFunctionalDesign Knowledgeware dictionary. Not all methods take input parameters, and for those that do, the parameters are described in the Description column.

Whether you can see the value returned by the method depends upon how you are using it in Knowledgeware. For example, if you write a Knowledgeware rule or check causing a component to display differently based on the outcome of that rule or check, you won't see the calculated value; just the result of the calculated value.

You can see the value returned by a computed attribute in:

A report you generate through the Tools - Report Definition dialog.
The text displayed in your diagram, after you define a text template using the Insert Link Template dialog.
The Edit - Properties dialog, providing the administrator configured them to display as described in Changing the Display Order of Properties.

Knowledgeware Object Type	Object Type	Attribute/Method Name	Description
CATSfmSystemExt	Functional System	Category	Category name of the system.
CATSfmPanelExt	Functional Super Plate	SurfaceArea	Surface area of the plate.
		Weight	Weight of the plate.
		Thickness	Thickness of the plate.
		CoG_x	Center of gravity on X coordinate.
		CoG_y	Center of gravity on Y coordinate.
		CoG_z	Center of gravity on Z coordinate.
		PaintedArea	Both sides of the surface of a plate, excluding the openings.
		PlatePerimeter	Perimeter is calculated without considering the opening on the plate object.
		PlateLength	Length of the plate.
		PlateWidth	Width of the plate.
		SupportName	Name of the support.
		WeldingLength	Total length of the plate perimeters.
		IsASuperObject	Name of the super object.
		SupportOffset	Offset from support.
CATSfmStiffenerExt	Functional Stiffener	SectionName	Section name of the profile.
		Length	Length of the profile.
		Weight	Weight of the profile.
		CoG_x	Center of gravity on X coordinate.
		CoG_y	Center of gravity on Y coordinate.
		CoG_z	Center of gravity on Z coordinate.
		End_EndcutName	End endcut name on the profile End extremity.
		Start_EndcutName	Start endcut name on the profile Start extremity.
		PaintedArea	Length of the perimeter of the section profile, multiplied by the length of the profile.
		SupportName	Name of the support.
		WeldingLength	The length of the profile trace.
		IsASuperObject	Name of the super object.
		SupportOffset	Offset from support.
		SupportedPlate	Name of the support plate.
CATSfmStiffenerOnFreeEdgeExt	Functional Stiffener on Free Edge	SectionName	Section name of the profile.
		Length	Length of the profile.
		Weight	Weight of the profile.
		CoG_x	Center of gravity on X coordinate.
		CoG_y	Center of gravity on Y coordinate.
		CoG_z	Center of gravity on Z coordinate.
		IsASuperObject	Name of the super object.
CATSfmBeamExt	Functional Beam	SectionName	Section name of the profile.
		Length	Length of the profile.
		Weight	Weight of the profile.
		CoG_x	Center of gravity on X coordinate.
		CoG_y	Center of gravity on Y coordinate.
		CoG_z	Center of gravity on Z coordinate.
		IsASuperObject	Name of the super object.
CATSfmBlockSystemExt	Functional Volume Set	Weight	Weight of this block system.
		CoG_x	Center of gravity on X coordinate for this block system.
		CoG_y	Center of gravity on Y coordinate for this block system.
		CoG_z	Center of gravity on Z coordinate for this block system.
CATSfmSBlockExt	Functional Volume	Weight	Weight of this block.
		CoG_x	Center of gravity on X coordinate for this block.
		CoG_y	Center of gravity on Y coordinate for this block.
		CoG_z	Center of gravity on Z coordinate for this block system.
		PlatesInformation	All the functional volume plate information on the block: Material, Grade, Thickness, Total SurfaceArea, Total Weight, Total WeldingLength, Total PaintedArea.
		ProfilesInformation	All the functional volume profile information on the block: Material, Grade, Section, Total Length, Total Weight, Total WeldingLength, Total PaintedArea.
SfmPlate	Plate Object	SurfaceArea	Surface area of the plate.
		Weight	Weight of the plate.
		Thickness	Thickness of the plate.
		CoG_x	Center of gravity on X coordinate.
		CoG_y	Center of gravity on Y coordinate.
		CoG_z	Center of gravity on Z coordinate.
		IsASuperObject	Name of the super object.
		SupportOffset	Offset from support.
SfmStiffener	Stiffener Object	SectionName	Section name of the profile.
		Length	Length of the profile.
		Weight	Weight of the profile.
		CoG_x	Center of gravity on X coordinate.
		CoG_y	Center of gravity on Y coordinate.
		CoG_z	Center of gravity on Z coordinate.
		IsASuperObject	Name of the super object.
		SupportOffset	Offset from support.
		SupportedPlate	Name of the support plate.
SfmBeam	Beam Object	SectionName	Section name of the profile.
		Length	Length of the profile.
		Weight	Weight of the profile.
		CoG_x	Center of gravity on X coordinate.
		CoG_y	Center of gravity on Y coordinate.
		CoG_z	Center of gravity on Z coordinate.
		IsASuperObject	Name of the super object.
SfmStiffenerOnFreeEdge	Stiffener On Free Edge Object	SectionName	Section name of the profile.
		Length	Length of the profile.
		Weight	Weight of the profile.
		CoG_x	Center of gravity on X coordinate.
		CoG_y	Center of gravity on Y coordinate.
		CoG_z	Center of gravity on Z coordinate.
		IsASuperObject	Name of the super object.

These attributes help in filtering your search results. In the given example, if you search for decks in your document, the result displays all the super and split deck objects. However, if you use IsASuperObject attribute as a filter, the result displays only the super deck objects.

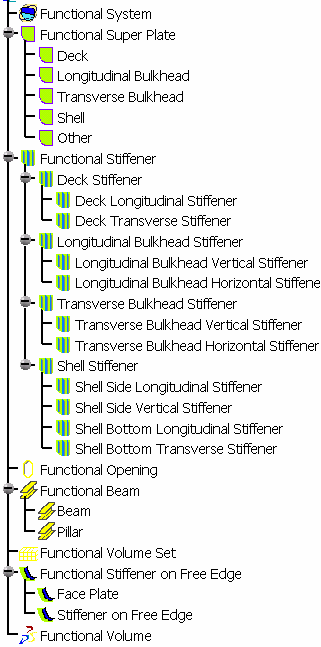

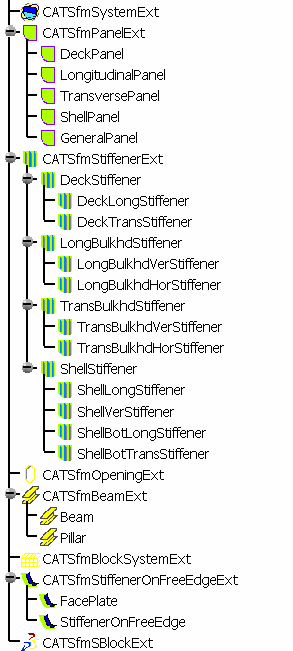

The following illustrates the relationship of Knowledgeware object types and classes.
