Using the Design Validation Tool

	This task shows you how to use the Design Validation tool to check the validity of your design.
	This tool checks for specific errors in your design. The validation checks performed by the tool are listed in Validation Checks Explained. For some checks, such as minimum or maximum bend radius, you can enter the values in a specific file. This is explained in Validation Checks Explained. You can also specify that some attributes are always checked - known as mandatory attribute checks - this process is also explained in the task mentioned above. Validation checks are hard-coded and the values cannot be changed, except for a few, as mentioned above. You cannot add additional checks using this tool. The only way you can add additional checks is by coding your own, using the CAA Interface. That is outside the scope of this documentation and is not explained here. You can validate 3-D documents in the following disciplines: Conduit, Electrical, Equipment, Hanger, HVAC, Piping, Raceway, Tubing and Waveguide. If you are using a customized project resource management file then you must insert a new section available in the sample PRM file from Release 18. The section is `Design Validation, 2D3DIntegrationStatusReport Discipline Resources`. You need to insert this section in your PRM file or the Integration tool may not work correctly. Adding this section allows the application to load all the catalogs needed when processing objects from various disciplines.
	1.	Open your design document. This step is not required, because you can select documents to be checked as explained in Step 3. It is recommended, however.

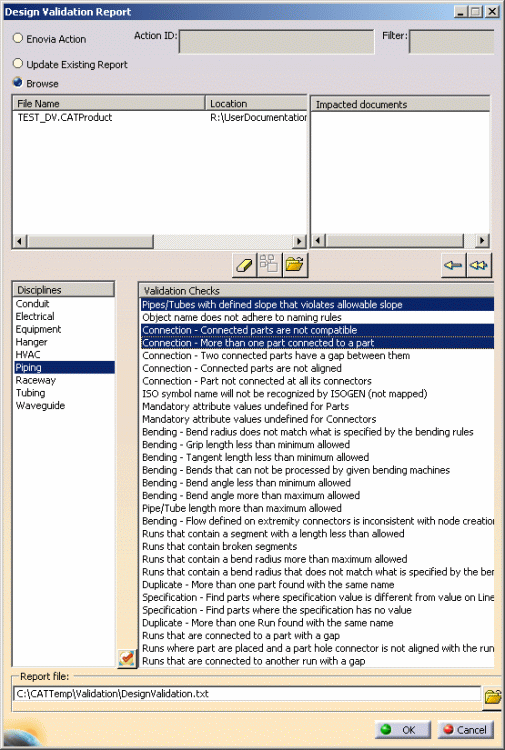

	2.	Click `Analyze>Design Validation Report`. The `Design` `Validation` `Report` dialog box displays. In the image below the user has made some selections.

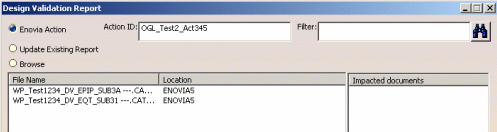

	3.	`SELECTING FILE-BASED DOCUMENTS:` Select the `Browse` option and click the button `Select Documents to be Processed`. Navigate to the directory where your design document is located and select it. The `File` `Name` and `Location` will display in the `Design` `Validation` `Report` dialog box, as shown above. If you want to remove a document then select it and click the `Remove Selected Document from List` button. You can also use the `Browse` option to open the standard `Browse` toolbar, which allows you to select documents that are already loaded in session. To do this, click the `Select Documents to be Processed` button, and then click `Cancel` in the `File` `Selection` box that displays. This will leave the `Browse` toolbar open, allowing you to select a file or a loaded session document. You will also be able to select documents from the Enovia database if they were loaded into the session. The `Impacted` `Documents` column is only used, and the `Search for Impacted Documents` button is only available, when you are validating a document that is in Enovia. `SELECTING DOCUMENTS IN ENOVIA:` Check the `Enovia Action` option and enter an `Action` `ID`. An `Action` `ID` is created in Enovia (see Enovia documentation to learn how to create one). When you create an `Action` `ID` you associate one or more Enovia products with it. Click the button `Search Documents Associated with Action`. All documents associated with that `A`ction `ID` will display. Only documents that are displayed in the `File` `Name` field will be checked by the Design Validation tool - impacted documents are not checked. If you want to check impacted documents you must move them from the `Impacted` `Document` pane to the `File` `Name` pane using the arrows below the pane. If you want to filter the documents associated with the `Action` `ID`, by document name, then enter appropriate text in the `Filter` field. The filtered documents will display in the `File` `Name` field. If you want to search for impacted documents then select a document in the `File` `Name` field and click the `Search for Impacted Documents` button. Impacted documents will display in the pane. Impacted documents are explained elsewhere in this section. You can also move a document from the `Impacted` `Documents` pane to the `File` `Name` pane, select it, and search for impacted documents.
	4.	In the `Disciplines` pane, select the disciplines for which you want to check your document. In the `Validation` `Checks` pane select the checks. You can also click the "Select All" button to select all disciplines or checks. The `OK` button will not be available until you have selected at least one check, as well as all other relevant options.
	5.	The `Report` `File` field displays the name and location of the file identified for the resource `DesignValidationReport` in the project resource management file. If you want to select another output file then enter the name and location or navigate to it using the `Select` `Output` `File` button. The folders specified in the field must exist for the report to be generated. Click the button `Review Existing Reports` to see the report you generated previously. Only the last report for the same report file is available. If you check the option `Update Existing Report`, and you have selected an output file, then the settings you selected when you last generated a report using that output file will be retained. This means you will not have to select documents in the `File` `Name`, `Disciplines` or `Validation` `Checks` field - the settings you selected the last time you generated a report will be used to generate the new report.
	6.	Click the `OK` button. An `Error Report` displays if there is an error, or you may see the `Validation` `Summary` `Reports` dialog box, showing the result of the design check. A portion of the dialog box is shown below. Click on one of the validation checks to see details of the check. The reports generated are: the `Check` `Summary` `Report,` `Part` `Summary` `Report` and an `Error Report` if there are any errors. Click on the down arrow next to the report location field to select the reports.

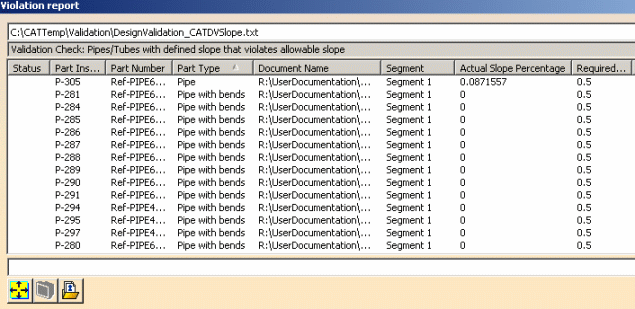

	7.	Click on one of the checks to display the Violation Report, which shows all the violations for that check.

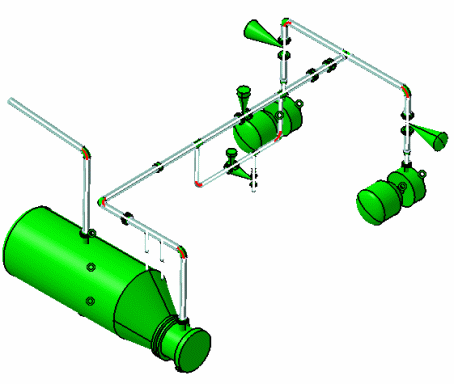

	8.	You can perform the following functions using the buttons available to you: `Reframe Physical Object`: Can be toggled On and Off. When it is on, and you select a violation, the object in which the violation exists will be zoomed in. When it is off the object will be highlighted, but not zoomed in and may not be visible in the viewer. You may need to zoom in to view it. `View Document Selected`: Allows you to open the document in which the violation has occurred. This button is available after you select a violation record, and if the document is not already open in the viewer. If the error involves more than one document, such as the same part name used in two documents, the user can pick the document that is to be opened. `Open All Physical Documents`: Clicking this button opens all the documents associated with the violations contained in the report.
	9.	You can enter a notation in the `Status` column, such as after fixing a violation. Click `Save` after you have made notations to save them in the report.
