Checking the Mesh Quality

This task will show you how to quickly check the quality of the mesh.
Use the mesh you have created in the previous task.

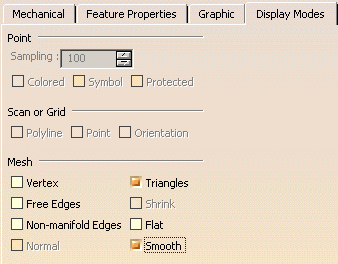

  1. Right-click the mesh and select Properties > Display Modes.

    The default check box is Smooth. You can select:
    • the Triangles check box:
    • the Free Edges check box:
    • the Non-manifold Edges check box: (none in our example)
    • the Flat check box:

    • You can combine all of them too.
