This task shows you how to manage part set up. | |
![]() |
You must create a CATProduct entity for each part set up you want to represent. | |
![]() |
1. | Enter a Machining workbench and double-click
the Part Operation.1 entity in the tree. ![]() The Part Operation dialog box appears. |
2. | Click Product or Part
![]() ![]() |
|

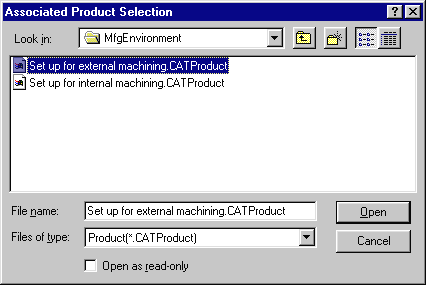

3. | Select a CATProduct from the Associated
Product list, then click Open to display the corresponding part
set up.![]() |
|
|
||
4. | Click OK in the Part Operation dialog box. | |
5. | Click Part Operation
![]() |
|
6. | Associate another product to Part Operation.2 in the same way as described above. | |
7. | Click OK in the Part Operation dialog box. | |
|
||
![]() |

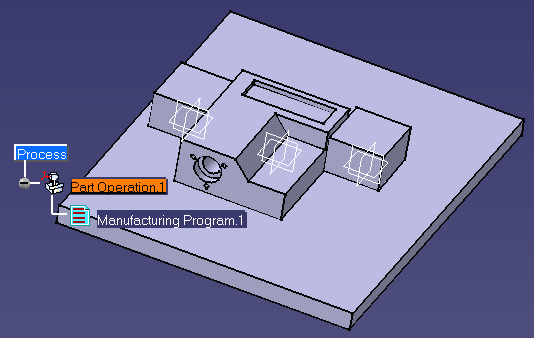

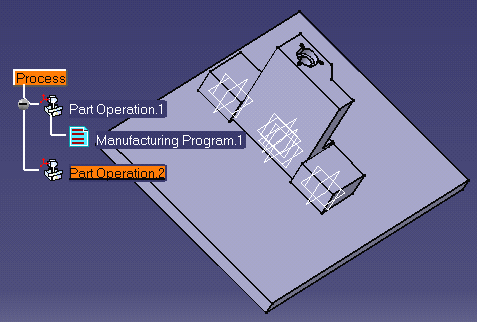

To display the desired part set up, just select the corresponding Part Operation in the tree. | |
|
