Click Gear Joint
in the Kinematics Joints toolbar or select Insert > New

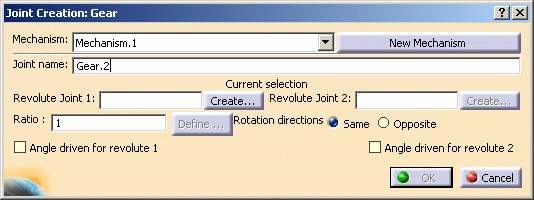

Joint > Gear... from the Menu bar. The Joint Creation: Gear
dialog box appears.
 |
The Mechanism is identified in the specification
tree. |
Now you need to select two Revolute joints. |
-
Select Revolute.1 either in the specification tree or in
the geometry area.
-
Create Revolute.2 within the Gear command. For this:

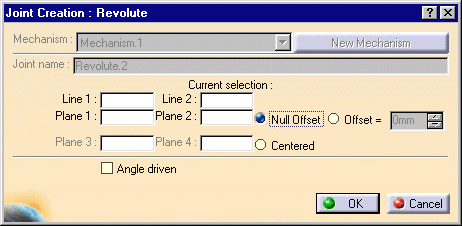

click .The Joint
Creation: Revolute dialog box appears automatically:
 |
Select line .1 (green cylinder axis) and
line.2 (orange cylinder axis) as shown below in the geometry
area: |
 |
 |
Select plane.1 (green cylinder face) and
plane.2 (orange cylinder face) either in the specification tree or in
the geometry area: |
 |
 |
-

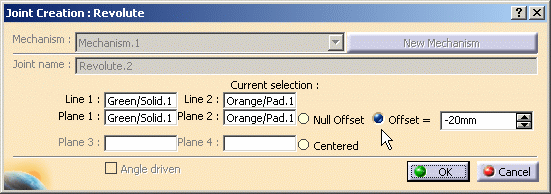

Select the Offset option button and keep the
default value. When done, click Ok.
-

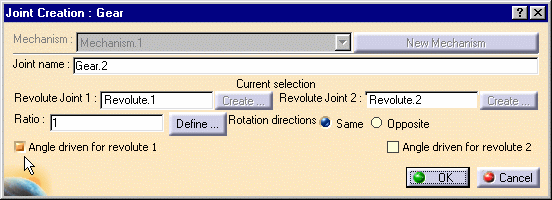

Assign a command, select for instance the Angle
driven for revolute1 check box.
 |
About Ratio definition
Two methods are available to define the ratio
parameter:

- using the Define option in the joint
creation dialog box to calculate the ratio automatically
|
-
Click
to define the ratio

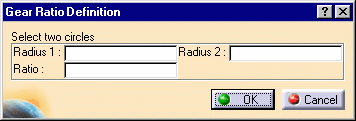

parameter automatically. The Gear Ratio Definition dialog box
is automatically displayed.
-

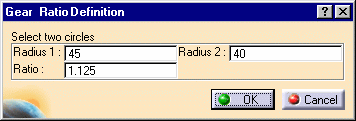

Select the two circles in the geometry area.
-
Click Ok when done

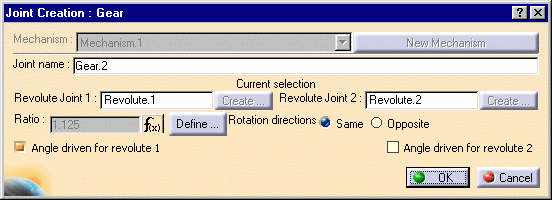

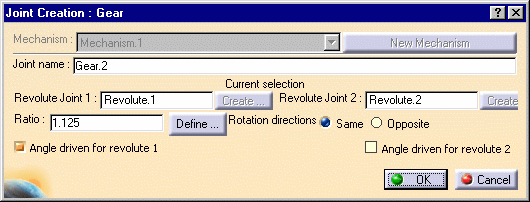

The calculated ratio appears in the Joint Creation:
Gear dialog box

|
-
Change the rotation direction option if needed.
The default is Same (positive)
Opposite is negative
 |
Note: simulate your mechanism with
commands to check the direction is the one you want |
-
Click Ok when done
Now, if you use the formula
editor, (a formula is already defined in our sample), from step 6
Right-click in the ratio field and use the Edit
Formula contextual menu displayed |

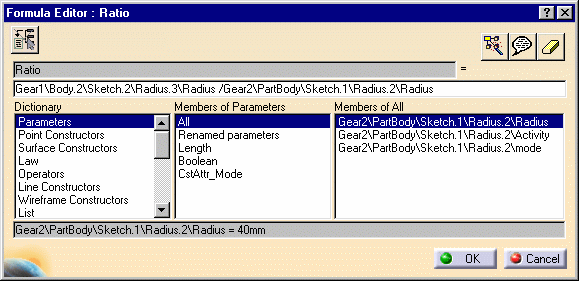

The Formula Editor: Ratio is automatically displayed.

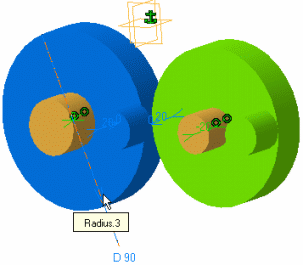

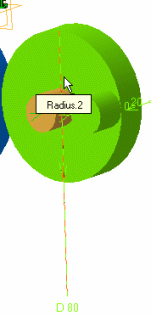

Click Gear1 product in the specification tree and select the radius
as shown below: |

|
The formula is automatically entered in the ratio field, enter a
/ (division symbol) Click Gear 2 and select radius.2 as
shown below: |

|
 |
-
Click Ok when done. The ratio is updated

|

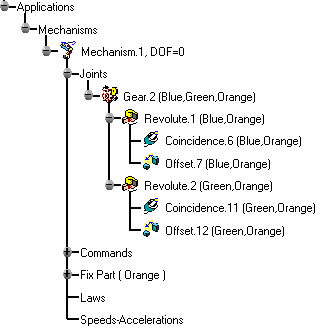

The gear joint is created and identified in the
specification tree.
Now expand the gear joint you have just created, the embedded leaf
joints are displayed.
Note: the joints involved in a compound
joint can be neither edited nor deleted directly.

|
-
Open the
GearV5_Result.CATProduct to check your result
 |
Note: To create a gear joint, the two
revolute joints involved in the gear joint must rely on a same
support part.

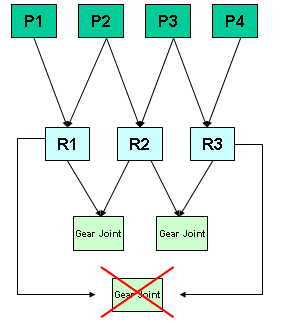

See picture below: (P stands for Part, R for
Revolute) |
 |
|
