Opening the File

The purpose of this task is to show you how to enter the Healing Assistant workbench and open a file to work with.

  1. Open the Healing Assistant workbench via Start > Mechanical Design > Healing Assistant.

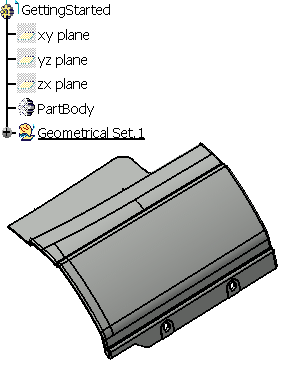

  2. Open file GettingStartedHA1.CATPart in the samples directory.

  3. Go to Tools> Options> Display> Performances and set the 3D Accuracy to Proportional with a value of 0.01.
    See Customizing - Performance in the Infrastructure User's Guide for more information.
