Open file
PanHandle.CATPart in the samples directory.
-

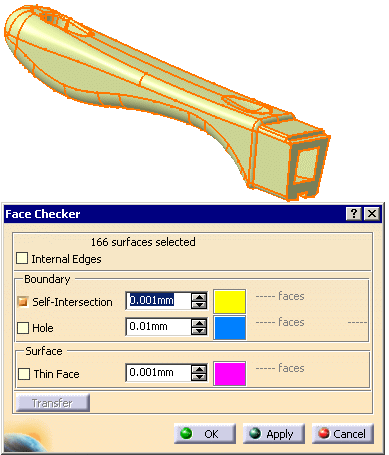

Click Face Checker
in the Check Topology toolbar and drag-select all of the faces.

-
Make sure the
Internal Edges
check box is cleared.
Do
not change the default values. Click Apply.
-
A progression bar informs you of the progress
of the search.
The dialog box is updated with the following
information:
-
number of surfaces selected,
-
number of defective sites found for each
type of problems,
-
size of the largest hole found.
|
-
Defective topologies corresponding to the
type of problems selected are highlighted in the viewer.
Select another line to visualize the other defective topologies.
You can change the visualization color by double-clicking the associated
color patch.
-
Select the line of Self-Intersection and

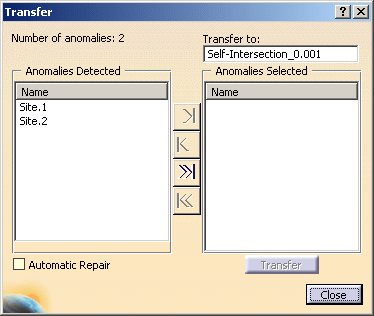

click Transfer. The
Transfer dialog box appears.
 |
-
Number of anomalies
indicates the number of self-intersecting faces found.
-
In
Anomalies Detected
you find the list of defective sites.
-
Transfer to proposes
you a Geometrical Set into which you can transfer the sites.
The name of the transfer Geometrical Set is made of the name of the
type of problem and
of the value of the tolerance used to search the problem. You can
edit this name.
-
Automatic Repair
is available only for self-intersections problems.
Whenever possible, the face is modified to
heal
the self-intersecting boundary.
The repaired face will be transferred to a
Automatic_repaired_0.001.1 Geometrical Set.
|
-
Right-click a site and select
Reframe On to inspect a
site.
The zoom factor is automatically computed on the size of the smallest
surface of the site.
-
Select one or several sites and click the
single arrow to transfer them to the
Anomalies Selected
list,
or click the double arrow to transfer all the sites to the Anomalies
Selected list.
Then click Transfer to transfer them to the Geometrical Set.
-
Click Close to revert to the main
dialog box.
-
Click OK to validate the transfers
and exit the action, or Cancel to exit the action without
performing the transfers.
