Join element allows connecting a node and a face of an element.
|
Type |
join element |
|
Physical property |
|
|
Mesh connectivity |
SPIDER |
|
Number of nodes |
1 slave, n-1 masters |
|
Degrees of freedom |
3 translations |
|
Type of behavior |
kinematics |

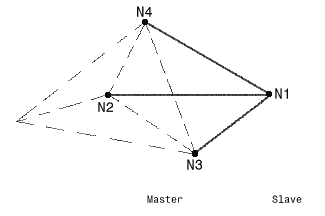

Mesh visualization:
The relations are obtains in the following way:
- Compute the projection of the slave node (N1) on the surface defined by n-1 master nodes.
- Interpolate the displacement of the projected point (P) using the shape functions of the face defined by the master nodes.
- Link the translations normal to the direction given by the property (or direction ) according to rigid body equations.
- Impose a minimum clearance between the slave node (N1) and the projected point (P) in the direction given by the property.
The projected point (P) is a conceptual point, that means it is never created. The displacement of this point is always expressed in terms of displacement of the master nodes through interpolation.
