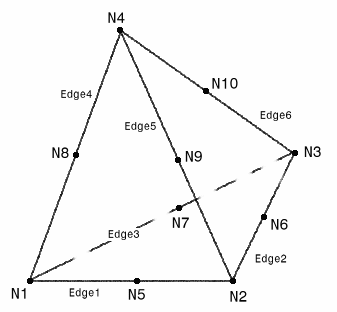

Parabolic Tetrahedron is a ten-nodes iso-parametric solid element.
|
Type |
solid element |
|
Physical property |
|
|
Mesh connectivity |
TE10 |
|
Number of nodes |
10 |
|
Degrees of freedom |
3 (translations) |
|
Type of behavior |
elastic |
This element has four gauss points:
P1 (0,138 ; 0,138 ; 0,138) P2 (0,138 ; 0,138 ; 0,585)
P3 (0,138 ; 0,585 ; 0,138) P4 (0,585 ; 0,138 ; 0,138)
There are only three translations.
