This task shows you how to create a Surface Analysis Connection.
Surface analysis connections are used for simulating welding surface onto
parallel faces, on an assembly model. |
 |
- Only available with the Generative Assembly Structural Analysis
(GAS) product
.
- The connection has to connect two bodies (2D or 3D).
- Multi-selection is not available.
|
 |
Open the
sample11.CATAnalysis from the samples directory. |
 |
-
Click Surface Analysis Connection
in the Analysis Supports toolbar.
-
Select the first component.
In this particular example, select Support.1 -
Fill.4. |
-
Activate the Second component field.
To do this, select the Second component
edit box as shown below:
 |
-
Select the second component.
In this particular example, select Support.2 -
Fill.3. |
-
Activate the Surface field.
To do this, select the Surface edit box as
shown below:
 |
-

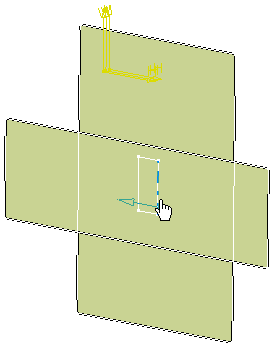

Select the desired surface.
In this particular example, select Surface.1 -
Fill.2 as shown below:
 |
-
Click OK.
The Surface Analysis Connection.1
connection appears in the specification tree under the Analysis
Connection Manager.1 set.
 |
|
 |
|
 |
