This task will show you how to import time modulation values from a
previously created file (.xls or .txt file). |
 |
- Only available with the Generative Dynamic Response Analysis (GDY)
product.
- A dynamic response case must have been previously inserted.
- A file containing modulation values must have been previously
created. The file must contain the (s) (or other time units
supported by CATIA) characters.
The file format can be:
- .xls (two columns Excel file): on Windows
- .txt (Text): on Windows and on Unix
|
 |
Open the
sample56_1.CATAnalysis document from the samples directory. |
 |
-
Click Time Modulation
in the Modulation toolbar.
The Time Modulation dialog box appears.

A Modulations.1 set and a Time
Modulation.1 object are created (if it does not already exist)
under the Finite Element Model.1 set.
|
-
Click the Browse button to select the file
that contains the time modulation values. This file can be an excel
(.xls) file on Windows or a text (.txt) file on Unix.

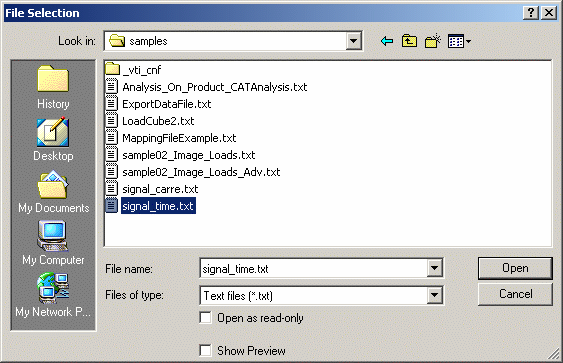

The File Selection dialog box appears and lets you
select the file you need.
In this particular case, you can select the
signal_time.txt file from the sample directory. |
-
Click Open in the File Selection dialog box.
The Modulation dialog box is updated and the path
directory of the imported file is displayed.
 |
-
Click the Edit button to visualize the
parameters defined in the file you just have imported.
The Imported Table dialog box appears.
 |
-
Click Close in the Imported Table dialog box.
-
Click OK in the Time Modulation dialog box.
|
 |
|
|
