Generating a 2D Display for Modulation

This task shows you how to generate a 2D Display visualization for a modulation (frequency modulation or time modulation).

Open the sample59.CATAnalysis document from the samples directory for this task.

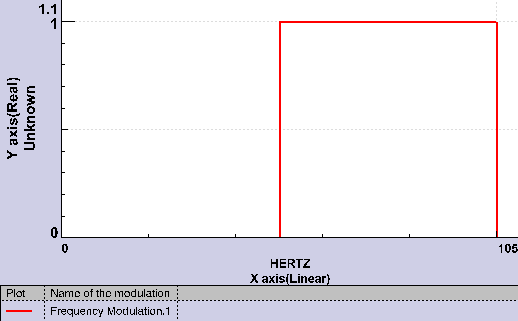

1. Right-click the Frequency Modulation.1 object in the specification tree and select Generate 2D Display .

   The corresponding view appears in a 2D Display document. You can change the units and the format of the axis to have a better visualization. To do this, refer to Editing the 2D Display Parameters:

2. Close the window to retrieve the CATAnalysis document.

   A 2D Display - Frequency Modulation.1 object appears in the specification tree. You can retrieve the 2D view and edit it. To do this, double-click the 2D Display - Frequency Modulation.1 object in the specification tree.

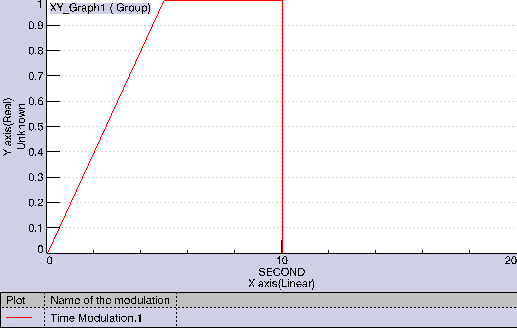

3. Right-click the Time Modulation.1 object in the specification tree and select Generate 2D Display.

   The corresponding view appears in a 2D Display document.

4. Close the 2D Display window.

   A 2D Display - Time Modulation.1 object appears in the specification tree.

• For an easier navigation between the two documents, select the Tile Horizontally or Tile Vertically submenu of the Window menu.
• You can delete a 2D display.
  To do this, right-click the 2D Display you want to delete in the specification tree and select Delete.

You can edit several graphic parameters.
For more details, refer to Editing 2D Display Parameters.
