This task shows you how to insert combined cases
and how to define:
A combined solution is a linear combination of
several solutions: static solutions (multi-load or not), assembled
solutions, imported solutions (either V4 or V5 imported solutions).
You can compute a small number of static cases and
perform lots of combinations when performing post-processing analyses. |
 |
Only available with the ELFINI Structural Analysis (EST)
product. |
|
Combine Mono-occurrence Solutions
|
 |
 |
Open the
sample03.CATAnalysis document from the samples directory. |
 |
-
Select Insert > Combined Case
.
The Combined Case.1 analysis case appears in the
specification tree.
|
-
Double-click Combined Static Case Solution.1
in the specification tree to edit it.

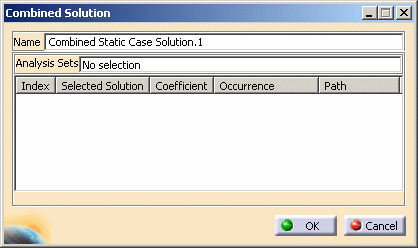

The Combined Solution dialog box appears.

- Name: lets you change the name of the
combined solution.
- Analysis Sets: gives you the number of analysis
solutions that are selected.
- Index: gives you the identification number of the
selected solution.
- Selected Solution: lets you select the
solutions you want to combine. You can combine assembled
solutions, imported solutions (either V4 or V5 imported solutions), static solution
and occurrences of static multi-load solutions. You cannot combine combined
solutions.
 |
The selected solutions must belong to
cases that share the same restraint set.
A warning message is displayed when
performing a Mesh only computation if the
selected solutions are based on different restraint sets or
if the selected solutions have no restraint set (imported
solution). However the combined solution is computed. |
- Coefficient: lets you associate a
coefficient value to each selected solution. You can enter a
negative value.
 |
To edit the coefficient value, you can:
-
Use the Edit Coefficient
contextual menu.
To know more refer to the description of the
available contextual menus.
-
Edit it directly in the Combined Solution
dialog box. To do this, select the desired line, click the
Coefficient value,
modify the value and press Enter.
|
- Occurrence: lets you associate one occurrence
to the selected solution (this is not applicable for
mono-occurrence solutions).
You can select only one occurrence per solution.
 |
It is not possible to select several
occurrences of the same multi-occurrence solution. If you want to combine several occurrences of
a same multi-occurrence solution, you
have to select the multi-occurrence solution several times and
associate to each selection a different occurrence. |
In the Occurrence column:
- Not applicable appears if you select a mono-occurrence solution.
- No selection appears when you select a
multi-occurrence solution. You have to specify the occurrence you
want to combine otherwise the associated and selected solution will
be ignored during the computation.
- Not found appears if the previously selected
occurrence does not exist anymore.
|
- Path: gives you the path of the selected
solution.
|
-
If needed, modify the name of the solution in the
Name box.
-
Select Static Case Solution.1 and Static
Case Solution.2 in the specification tree.

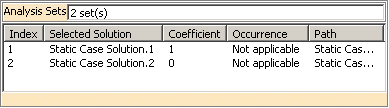

The Combined Solution dialog box is updated
and displays the following information:

Note that: in this particular case the
Occurrence list shows Not applicable because the
two selected solutions are mono-occurrence. |
-
Select and then right-click the second line.

- Edit Coefficient: lets you modify the
coefficient associated to a selected solution.
You can change the coefficient value
of several lines.
To do this, multi-select the desired lines in the
list, right-click and select Edit
Coefficient.
- Edit Occurrence: lets you select the
occurrence you want to combine.
To know more, refer to Combine
Multi-occurrence Solutions.
- Delete: lets you remove the selected solution
from the list of solutions to be combined.
- Delete All: lets you remove all the selected
solutions from the list of solutions to be combined.
- Show Path: lets you display or hide the path
column in the list of solutions to be combined.
|
-
Select Edit Coefficient.
The Parameter dialog box appears.
 |
-
Enter 2 in the Coefficient
box and click OK.

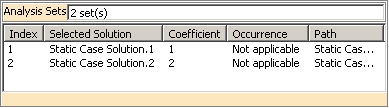

The Combined Solution dialog box is updated.
 |
-
Click OK.
|
|
Combine Multi-occurrence Solutions
|
 |
 |
Open the
sample46.CATAnalysis document from the samples directory. |
|
-
Select Insert > Combined Case
.
-
Double-click Combined Static Case Solution.1
in the specification tree.
-

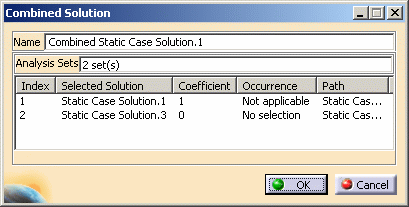

Select Static Case Solution.1 and Static Case Solution.3
in the specification tree.

Static Case Solution.1 is a
mono-occurrence solution, so the occurrence column is useless.
The case corresponding to Static Case Solution.3
contains a multi-load set. You can now select the occurrence. |
-
Select and right-click the second line in the Combined Solution dialog box.
-
Select Edit Coefficient.
-
Enter 1 in the Coefficient
box and click OK.
-
Select Edit Occurrence.
The Select Occurrence dialog box appears.
 |
-
Select the line corresponding to Loads.3
and click OK.

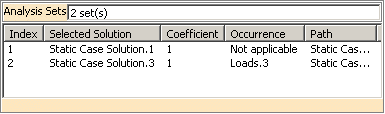

The Combine Solution dialog box is
updated.
 |
-
Click OK.
|
|
You can now compute the combined
cases you have created. |
|
