This task will show you how to duplicate a sub-element of a
generative view in order to modify a sub-part of a generated view
independently from the part linked to the drawing. |
 |
Open the
GenDrafting_part.CATDrawing document. |
 |
-
Double-click the view you want to modify to activate it.
The view is automatically highlighted.
-

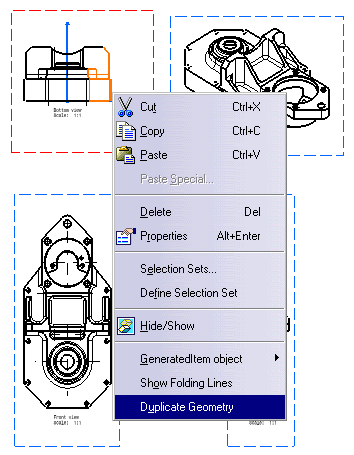

Select the elements you want to modify and right-click
them.
-
Select Duplicate Geometry.
The selected geometry is duplicated on the view at the
same position. It is highlighted after creation. Click on the drawing to
de-select it.
|
 |
The resulting geometry is created under the generative one. To be
access it, you can hide the corresponding generative geometry. |
