This task shows you how to create and annotate
a user-defined view. |
 |
-
Click the Create an Annotated View icon
from the DMU Review Creation toolbar.

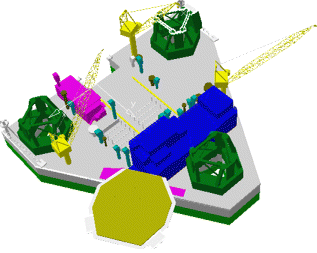

The 2D view is defined and identified in the
specification tree.
You can now customize this view.
|
|
-
Adjust the different view parameters (zoom, rotation,
etc.) until you are satisfied with the result.
 |
|
The 2D Marker toolbar is active and you can now annotate your view.

|
|
-
To add text, click the Text
icon then click where you want to place the text.
The Annotation Text dialog box as well as the Text
Properties toolbar appear:


|
|
-
Enter the desired text in the 2D text box, change the
text properties if needed and click OK to confirm.

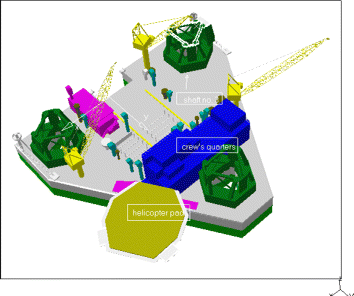

The text is added at the indicated position.
-
Click the Draw rectangle icon
to create a text box around the text.
Note: You can also add a frame by right-clicking the 2D text
and selecting Properties->Text Properties->Frame...
|
|
-
Drag across the text you added to create a text box.
-
Annotate your document further as desired.

|
 |
For more detailed information about 2D
markers, see Annotating. |
 |
