Magnifying

This tasks explains how to obtain a magnified view of your document in a separate window.
Insert the following cgr files:

ATOMIZER.cgr
BODY_1_2.cgr
BODY_2_2.cgr
LOCK.cgr
NOZZLE_1_2.cgr
NOZZLE_2_2.cgr
REGULATION_COMMAND.cgr
REGULATOR.cgr
TRIGGER.cgr
VALVE.cgr

  1. Select the View->Magnifier... command or click the Magnifier icon in the DMU Viewing toolbar.

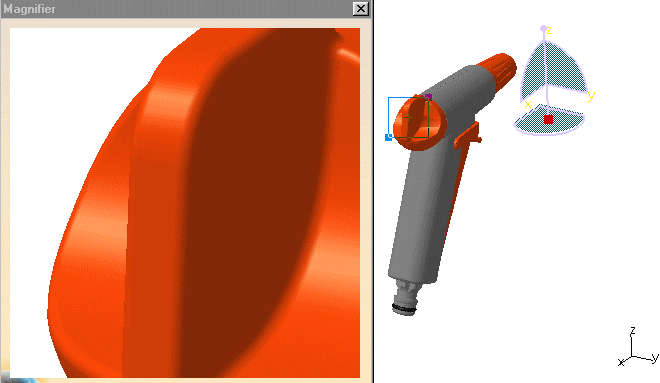

    The Magnifier window opens containing a magnified section of your document.





The section magnified is defined by the magnifier viewport which appears over the object in your document:


Note that the magnifier viewport has handles:

  • the "+" symbol lets you move the viewport
  • the arrows in the corners let you resize the viewport.

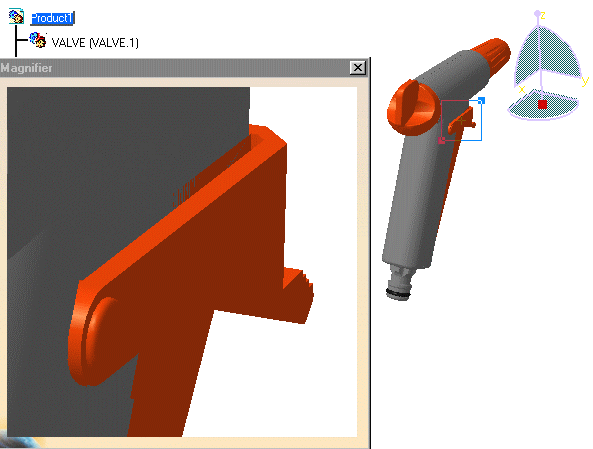

  1. Point to the + symbol and drag it to move the viewport and magnify another area of the document:

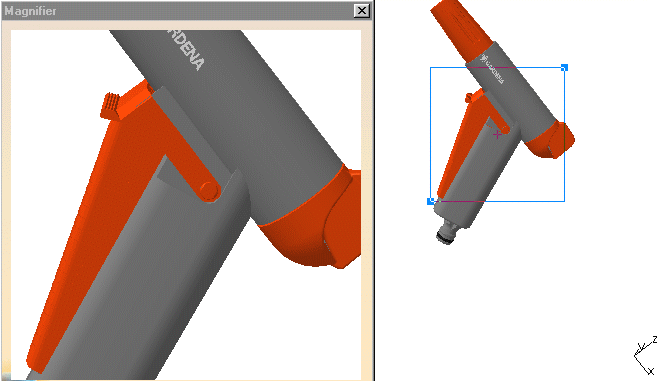

  1. Point to one of the arrows and drag it to size the magnified area up and down.
    While you drag, the symbol appears.
All the viewing and manipulations performed in the document window are also reflected in the Magnifier window. For example, rotate the object to see how the object is also rotated in the Magnifier window.
