Creating 3D Section Cuts

3D section cuts cut away the material from the plane, beyond the slice or outside the box to expose the cavity within the product.

This task explains how to create 3D section cuts:


Insert the following cgr files: ATOMIZER.cgr, BODY1.cgr, BODY2.cgr, LOCK.cgr, NOZZLE1.cgr, NOZZLE2.cgr, REGULATION_COMMAND.cgr, REGULATOR.cgr, TRIGGER.cgr and VALVE.cgr.

They are to be found in the online documentation filetree in the common functionalities sample folder cfysm/samples.

Creating 3D Section CutsTop

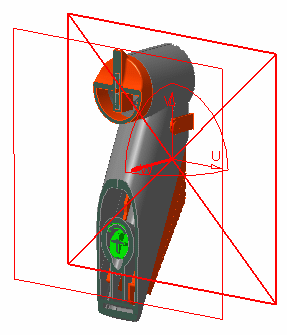

  1. Select Insert > Sectioning from the menu bar, or click Sectioning in the DMU Space Analysis toolbar and create a section plane. The Sectioning Definition dialog box appears.

  2. In the Definition tab, click Volume Cut to obtain a section cut:

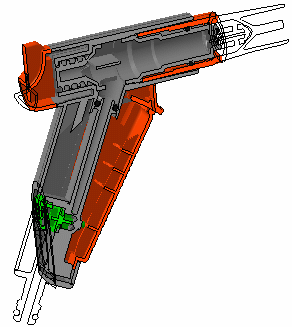

    The material in the negative direction along the normal vector of the plane (W-axis) is cut away exposing the cavity within the product.

    Notes:

    • To give you the best view of the cut, the normal vector of the plane (W-axis) is inverted so that the cutting view is always visible on screen.

    • Partial clipping is not possible. Therefore if you select only one product in the Sectioning Definition dialog box, and click Volume Cut to obtain a section cut:

      • In the document window the visual feedback shows a section cut that affects the entire product structure even if you have selected only one product.

      • In the Section viewer, the section cut only shows the selected product.

  3. Double-click the normal vector of the plane to invert it, or click Invert Normal I_PositionInvertP2.gif (244 bytes) in the Positioning tab of the Sectioning Definition dialog box.



  4. Re-click Invert Normal I_PositionInvertP2.gif (244 bytes) to restore the material cut away.

  5. Click OK when done.

3D Section Cut DisplayTop

The 3D section cut display is different when the sectioning tool is a plane. To obtain the same display as for slices and boxes (see illustrations below) and make measures on the generated wireframe cut:

  • Select the Allow measures on a section created with a simple plane option in the DMU Sectioning tab (Tools > Options, Digital Mockup > DMU Space Analysis)

  • Then, create your section cut based on a plane.



    When the Sectioning Tool is a Slice:

    When the Sectioning Tool is a Box:

About Sectioning solids which are intersecting

When using slice or box tools, note the visualization is not correct because the intersection between the two solids is not retrieved properly, i.e. it is not visualized and a cavity appears where material should be. Only each object specific section results are displayed.



P2 FunctionalityTop

In DMU-P2, you can turn up to six independent section planes into clipping planes using the Volume Cut command to focus on the part of the product that interests you most.

3D Section Cuts in DMU ReviewTop

Section cuts created during DMU Reviews are not persistent and are only valid for the duration of the review. If you exit the DMU Review, the section cut is lost.

For more information about DMU Review, refer to DMU Navigator User's Guide
