Creating a Punch with a Die

This task explains how to create a stamp from punch and die features.

First, you will define a punch and a die in Part Design, in the absolute axis-system.
Then, in a Sheet Metal part, you will bring the punch and the die features (and their axis system) to a point you have selected. If necessary, you will define a rotation of the axis system from a reference line.

This user-defined stamping cannot be combined with the Opening and Cutting Faces approach.

All .CATParts are available from the samples directory (PunchDie1.CATPart, Punch1.CATPart and Die1.CATPart or NEWPunchDie1.CATPart, NEWPunch1.CATPart and NEWDie1.CATPart for Generative Sheetmetal Design or Aero_PunchDie1.CATPart, Aero_Punch1.CATPart and Aero_Die1.CATPart for Aerospace Sheetmetal Design).


Creating Stamps

  1. Start the Part Design workbench.

  2. Insert a body (menu Insert  >  Body) to define the punch.

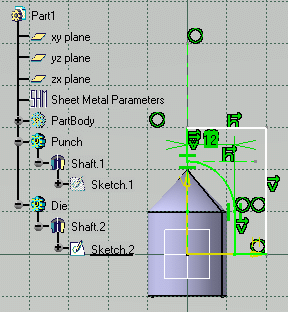

  3. Enter the sketcher select the yz plane, and draw the profile of the punch, and a rotation shaft.

    The punch must be oriented as described in Defining the Punch in Relation to the base feature to be Stamped in the Creating User-Defined Stamping Features chapter.



  4. Return to the 3D space and create the punch using Shaft .

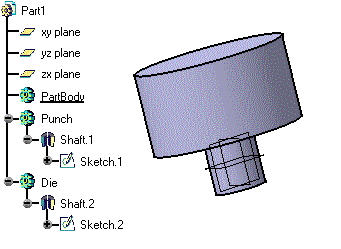

  5. Repeat from step 2 to step 4 to define the die, making sure that it is oriented as described in Defining the Die in Relation to the base feature to be Stamped in the Creating User-Defined Stamping Features chapter.

  6. Return to the Sheet Metal application, and if needed, use the Define In Work Object on the PartBody containing the wall or the base feature to be stamped.

  7. Click User Stamping from the Stamping tool bar and select a base feature, or a face where the stamping is to be created.
    This base feature or face is used to define the stamping location and direction, by matching the punch's origin to the selected point on the base feature.

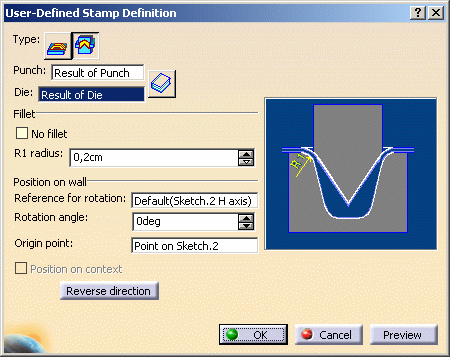

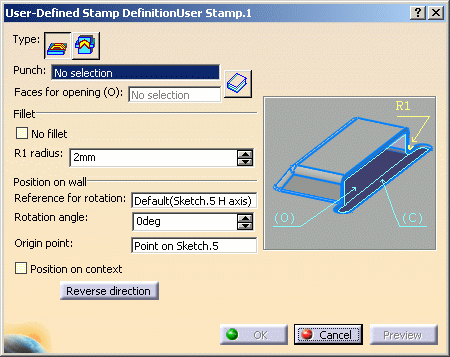

    The User Defined Stamp Definition dialog box is displayed:

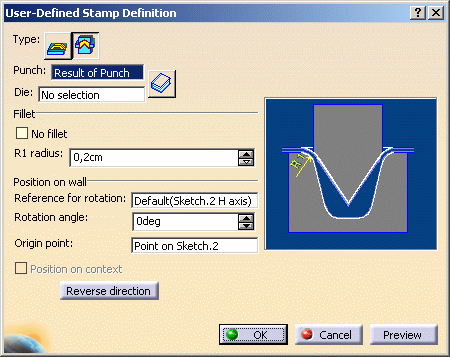

  8. Make sure the With die icon is pressed down and select the Punch feature from the specification tree.

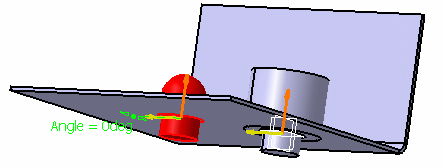

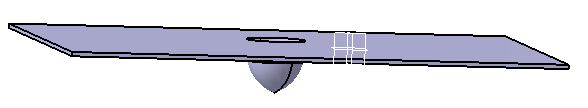

    The punch's positioning is previewed in the geometry.

  9. Select the Die feature.

    The die's positioning is previewed in the geometry as well.

  10. Check the No Fillet button is you do not wish the stamp to be filleted, or set the radius value if you wish the stamp to be filleted.

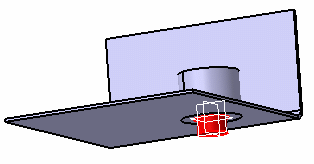

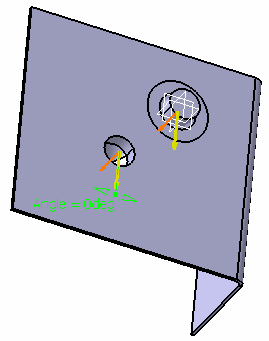

    Stamp without fillet

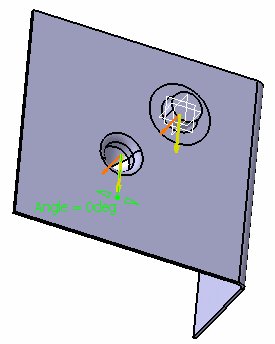

    Stamp with fillet

  11. If needed, define the stamp's positioning on the selected base feature by choosing:

    • a Reference for rotation: by default, it is the sketch axis, but you can also select any line or edge on base feature.

    • a Rotation angle value: you can either enter a value in the dialog box, or use the manipulator in the geometry to define this value.

    • a new Origin point on the base feature to coincide with the punch's point of origin.

    This is especially useful for non-circular stamps, but you can very well create the stamp as is, without further positioning.

  12. If needed, select the On Context check box (in the Generative Sheetmetal Design workbench only).
    The punch and die's positioning is previewed on the geometry.


    When selecting the On Context check box, the stamp's positioning and direction are not defined in relation to the base feature anymore.

    Only the punch and die's axis system is taken into account and the stamp is created according to their positioning and direction.


    Once On Context is selected, the position on wall cannot be modified nor the direction of the stamp: the fields available in Position on wall section and the Reverse direction button are disabled.

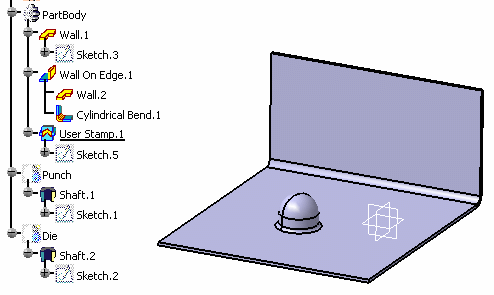

  13. Click OK to validate and create the stamping.
    By default the Punch and Die parts are set in No Show mode when clicking OK to create the stamp on the base feature.


    • Radius is the radius of the bend between the stamping and the base feature.
    • Punch and Die are the bodies you have defined previously. If the punch and the die are in another CATPart document, activate this document before clicking the punch or the die.

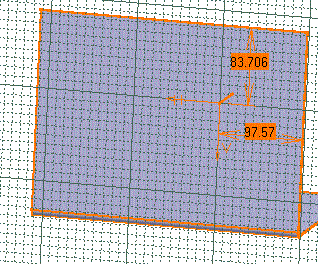

    • If you select two reference lines in addition to the plane, this will create two editable constraints to position the stamping. These constraints are editable.
    • A user-defined stamping can be edited (punch, die, position, constraints).
    • As the punch and die are not symmetrical, you cannot create such features as a cutout, a hole, a corner, etc., on this kind of stamping.

    • If you enter a punch and a die, the stamping is the difference of the shape of both features.
    • The punch height cannot be superior to the base feature height, otherwise it is considered as a cutout.
    • You may create a user-defined stamping from a punch only but you cannot create a fillet.
    • Only the stamping sketch is displayed in unfolded views.


    In this case, make sure you select the Define In Work Object on the PartBody containing the base feature to be stamped, prior to actually creating the stamp.

    or as two separate Part Design parts (Punch1.CATPart and Die1.CATPart from the samples directory)



    In this case, when selecting the punch or die feature, the system automatically copies this feature into the .CATPart document into which the base feature to be stamped is located.
    A link is retained between the initial punch or die feature and its copy.



Inserting Punch and Die features From The Catalog

Open the NEWstamping_catalog.CATPart document.

All .CATParts and catalog are available from the sample directory (Die.CATPart, Punch.CATPart, UserStamp_Catalog.catalog).

  1. Select the face of the part where the stamping is to be created.

  2. Click User Stamping from the Stamping toolbar to open the User-Defined Stamp Definition dialog box.

  3. Click With die .




  4. Click catalog to select a Punch feature from the catalog.

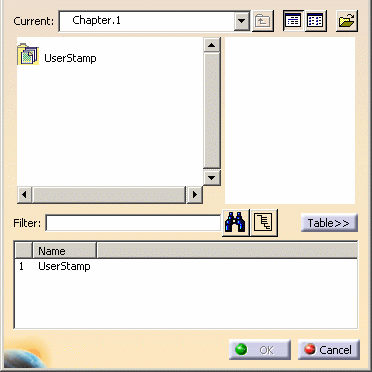

    The Catalog Browser dialog box is displayed.

  5. Browse to the directory where UserStamp_Catalog.catalog is filed.

  6. Double-click on chapter UserStamp.



    The parts saved in the catalog are displayed.

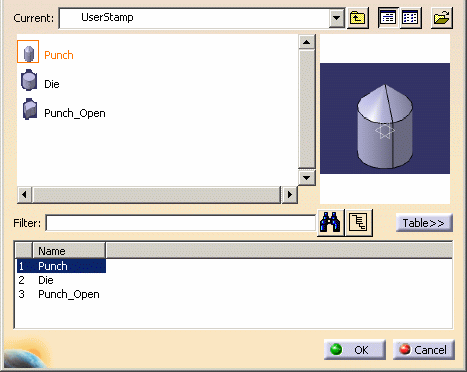

  7. Select the Punch, then click on OK.



    The body of this punch is aggregated under the part in the specification tree. It is referenced in the User-defined Stamp Definition dialog box as Result of Punch.






  8. Select the Die field to activate it.

  9. Click catalog to select a Die feature from the catalog.
    The Catalog Browser dialog box is displayed.

  10. Browse to the directory where UserStamp_Catalog.catalog is filed.

  11. Double click on chapter UserStamp.

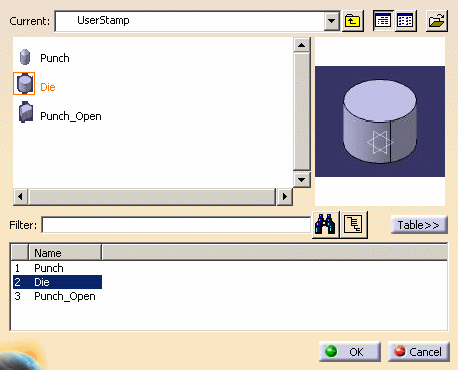

  12. Select the Die to select it then click on OK.



    The body of this die is aggregated under the part in the specification tree. It is referenced in the User-defined Stamp Definition dialog box as Result of Die.





    A punch and a die are now available for you to create a user-stamp.

  13. Click on OK to create your stamp.


    • To insert a feature from the catalog, the appropriate field has to be selected first in the User-defined Stamp Definition dialog box.
    • When creating a stamp from a catalog's feature, the Position on context option is deactivated. This is due to the fact that the stamping feature of the catalog was previously defined in its own axis-system. The part's canonic axis-system and the catalog's being different, there is no reason to use the option.
      Yet, when editing a user-stamp created from a catalog's features or using a body imported from another user-stamp, the option is activated.

    You cannot instantiate a Power Copy from a catalog, only parts.
